FPV Optical Module

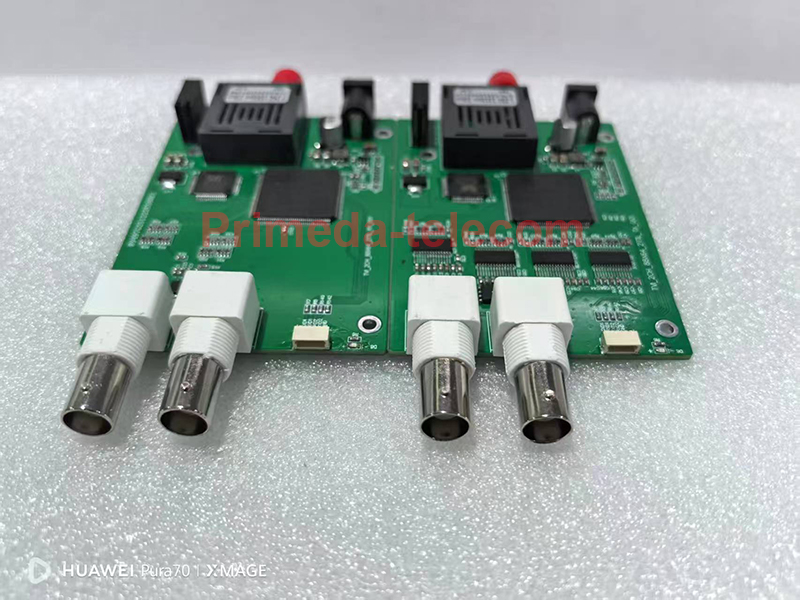

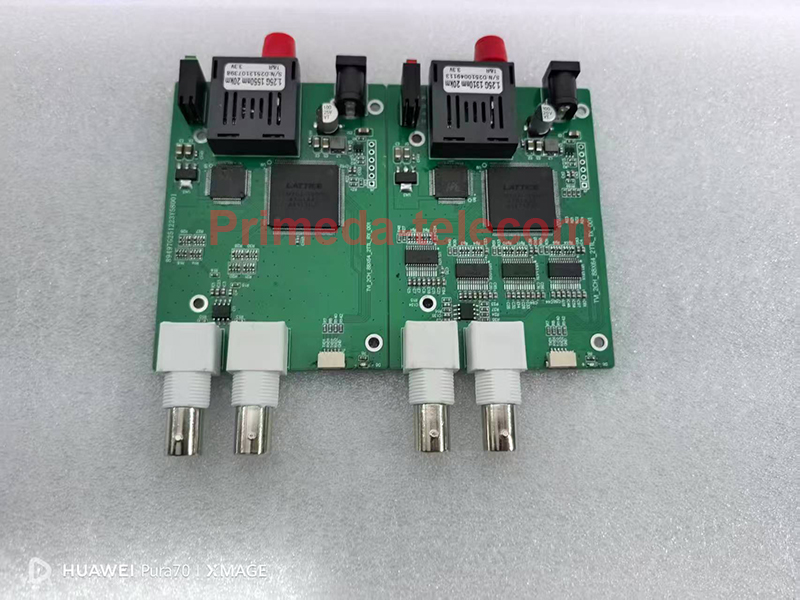

2 channel 1080P HD Video 2 TTL UART SBUS Over Fiber Optic Converter FC Singlemode Fiber Up 20Km
PMD-2V2TTL-1080P-FC-20Km
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 2 channel of 1080P HD video and 2 TTL level signal over an optical fiber cable for long distance transmission.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
Product specification:
Fiber Wavelength: 1310nm /1550nm
Interface : RX/TX/AV/VCC/GND (RX/TX: connect remote control. AV: video. VCC: power supply DV5-26V.GND:ground wire)
Support camera type: 1080P HD Camera, Back compatible with 960P/720P and Cvbs analog camera.
Video format compatible for PAL, NTSC, SECAM
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Optical Interface: FC
Transmission distance: Up to 20Km/40Km/60Km optional
Power Supply: 5.5V-26V: (2S-6S Battery)
Power Consumption: Less than or Equal to 5W
Communication Interface: MX-SH1.0mm-5P: CRSF Interface/CVBS video port
Others:

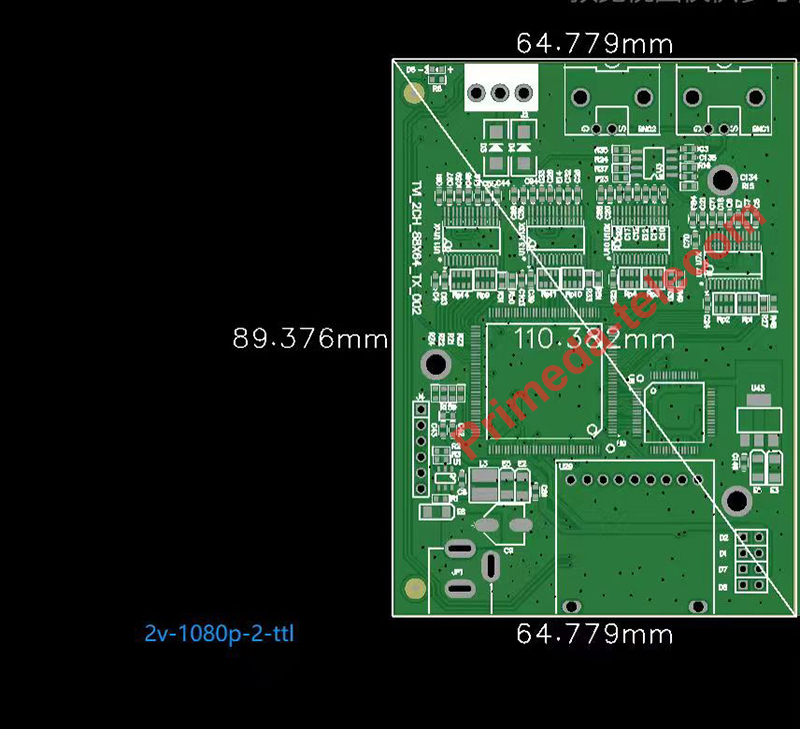

Board size: 89x65mmLxWxH)
Net weight: 15g/Sky End, 15g/Ground End
Sky terminal
Fiber Wavelength: TX/1310nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the flight control's CRSFTX,
TX is connected to the flight control's CRSFRX,
AV is connected to the flight control's AV signal output port,
155M 1310nm 20km
VCC power supply voltage is 5.5V~26V
Ground terminal
Fiber wavelength: RX/1550nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the remote control receiver,
TX is connected to the CRSFRX of the remote control receiver,
AV is output to the AV signal input port of the display or VTX,
VCC power supply voltage is 5.5V~26V
Fiber Wavelength: 1310nm /1550nm
Interface : RX/TX/AV/VCC/GND (RX/TX: connect remote control. AV: video. VCC: power supply DV5-26V.GND:ground wire)
Support camera type: 1080P HD Camera, Back compatible with 960P/720P and Cvbs analog camera.
Video format compatible for PAL, NTSC, SECAM
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Optical Interface: FC
Transmission distance: Up to 20Km/40Km/60Km optional
Power Supply: 5.5V-26V: (2S-6S Battery)
Power Consumption: Less than or Equal to 5W
Communication Interface: MX-SH1.0mm-5P: CRSF Interface/CVBS video port
Others:
Board size: 89x65mmLxWxH)
Net weight: 15g/Sky End, 15g/Ground End
Sky terminal
Fiber Wavelength: TX/1310nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the flight control's CRSFTX,
TX is connected to the flight control's CRSFRX,
AV is connected to the flight control's AV signal output port,
155M 1310nm 20km
VCC power supply voltage is 5.5V~26V
Ground terminal
Fiber wavelength: RX/1550nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the remote control receiver,
TX is connected to the CRSFRX of the remote control receiver,
AV is output to the AV signal input port of the display or VTX,
VCC power supply voltage is 5.5V~26V
