FPV Optical Module

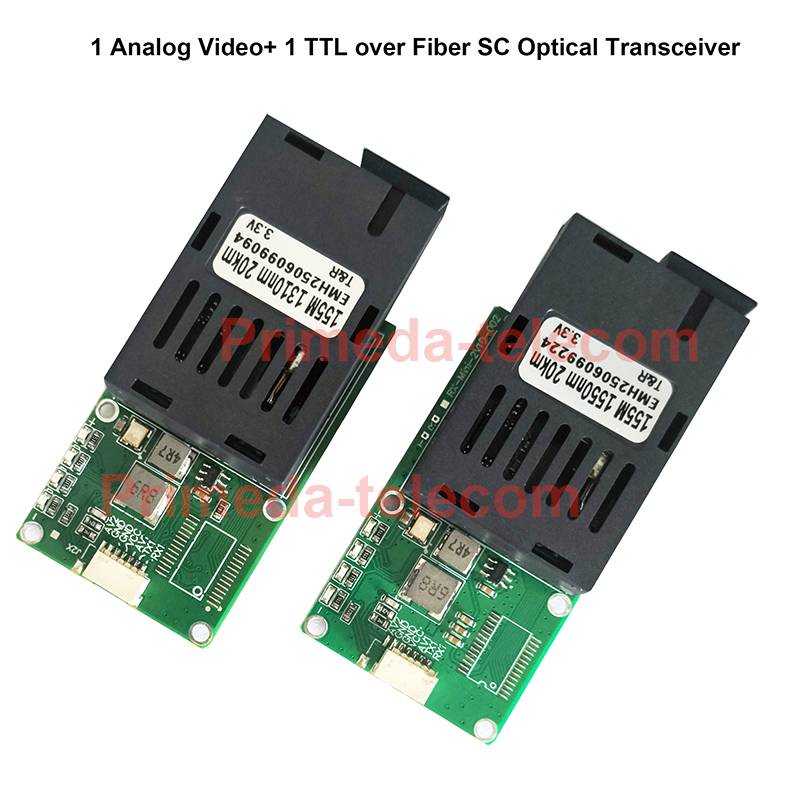

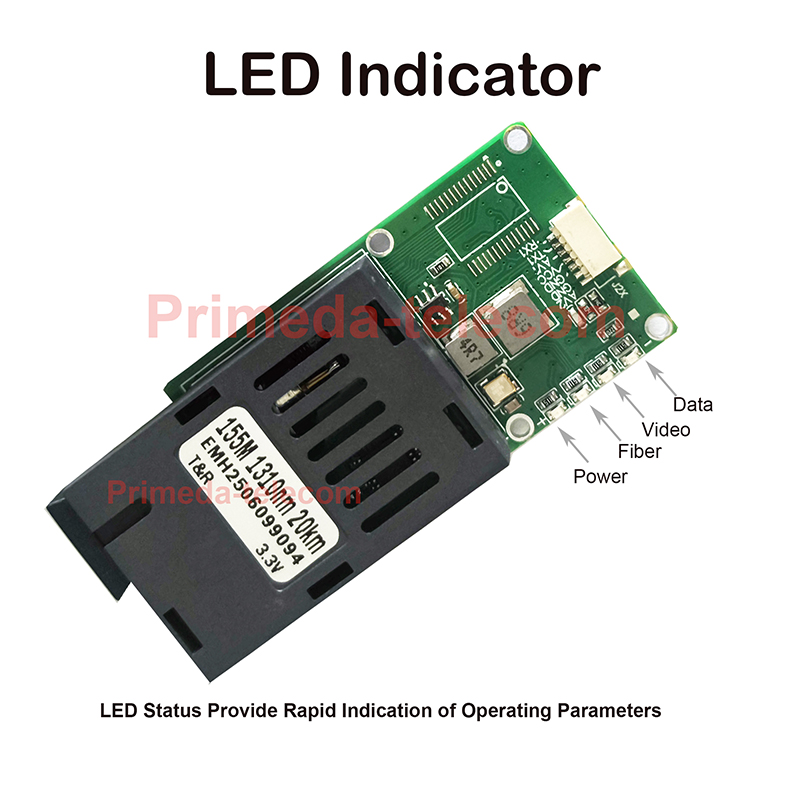

1 Cvbs Video 1 TTL over Fiber optic Converter SC/UPC Singlemode 20Km for FPV drone
PMD-1V1D-1TTL-SC-20Km

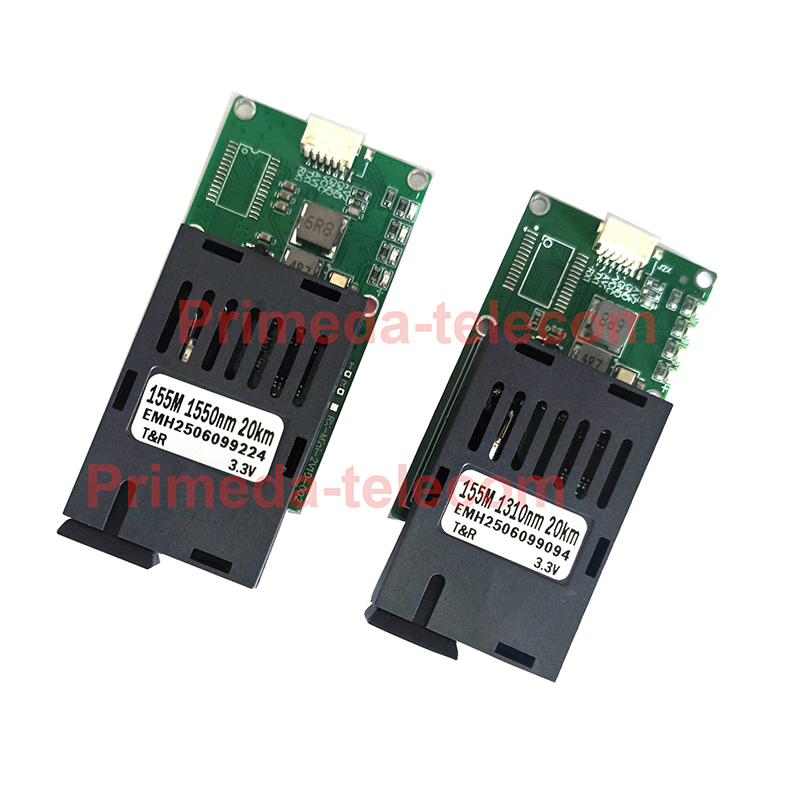

This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 analog video and 1 TTL level signal over an optical fiber cable for long distance transmission. Optical Interface: SC/UPC
High speed and stable transmission, No interference.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
High speed and stable transmission, No interference.
Support OEM,ODM, Long distance transmission 20Km/40Km/60Km/80Km/100Km is optional, Contact us if need.
Product description:
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 analog video and 1 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.
Product specification:
Fiber Wavelength: 1310nm /1550nm
Interface : RX/TX/AV/VCC/GND (RX/TX: connect remote control. AV: video. VCC: power supply DV5.5-26V.GND:ground wire)
Support camera type: cvbs analog camera.
Video format compatible for PAL, NTSC, SECAM
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Optical Interface: SC/UPC
Transmission distance: Up to 20Km
Power Supply: 5.5V-26V: (2S-6S Battery)
Power Consumption: Less than or Equal to 5W
Communication Interface: MX-SH1.0mm-5P: CRSF Interface/CVBS video port
Others:
Board size: 50x30x8.5cm (LxWxH)
Net weight: 12g/Sky End, 12g/Ground End

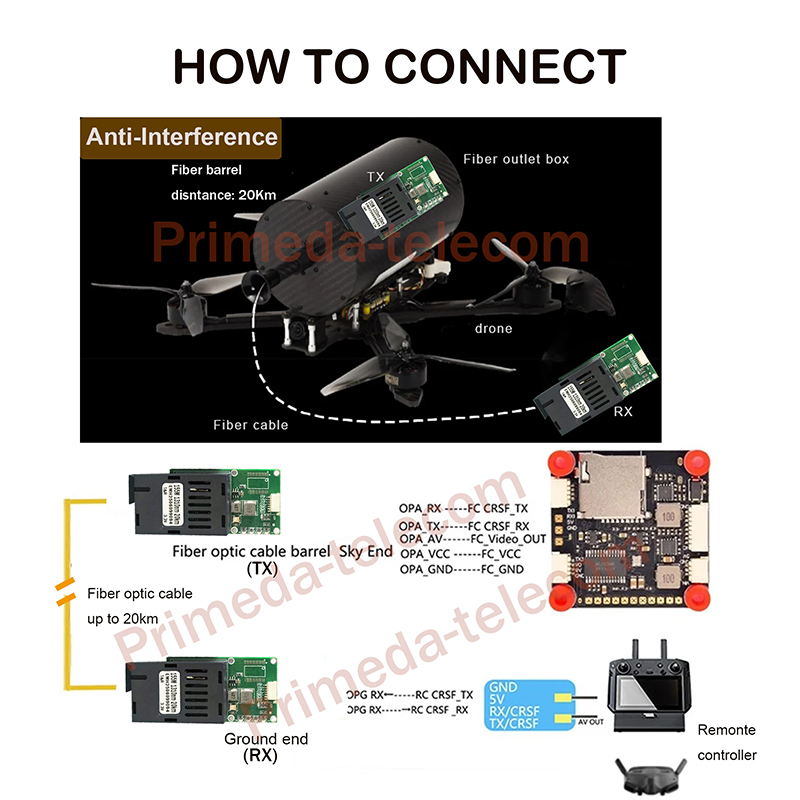

How to connect?

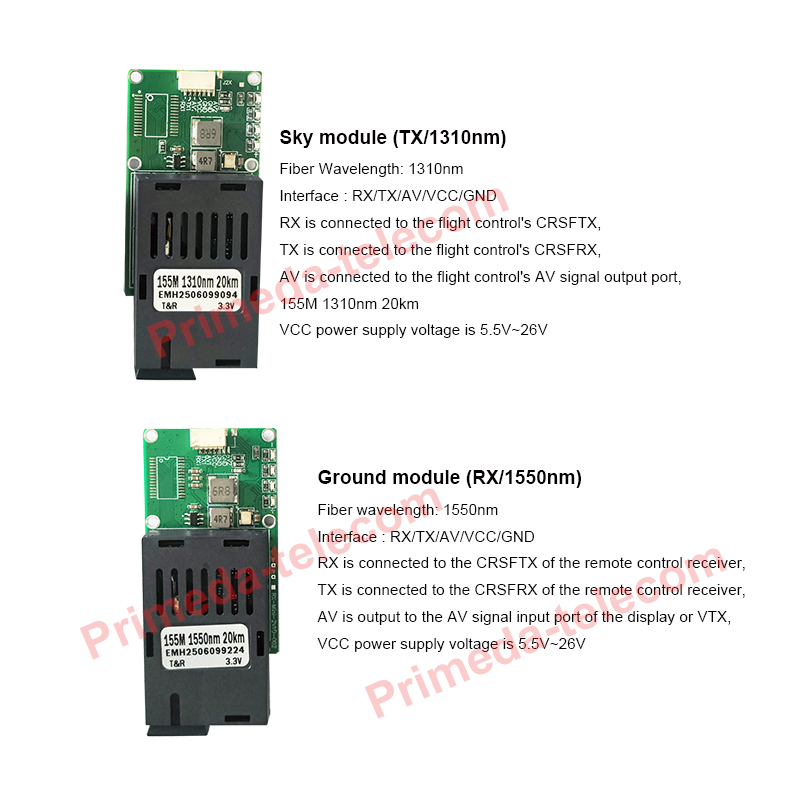

Sky terminal
Fiber Wavelength: 1310nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the flight control's CRSFTX,
TX is connected to the flight control's CRSFRX,
AV is connected to the flight control's AV signal output port,
155M 1310nm 20km
VCC power supply voltage is 5.5V~26V
Ground terminal
Fiber wavelength: 1550nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the remote control receiver,
TX is connected to the CRSFRX of the remote control receiver,
AV is output to the AV signal input port of the display or VTX,
VCC power supply voltage is 5.5V~26V
This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 analog video and 1 TTL level signal over an optical fiber cable for long distance transmission. High speed and stable transmission, No interference. Widely used in various scenarios that require long-distance, high-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields
It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized according to buyer's special requirements. Contact us if needed.
Product specification:
Fiber Wavelength: 1310nm /1550nm
Interface : RX/TX/AV/VCC/GND (RX/TX: connect remote control. AV: video. VCC: power supply DV5.5-26V.GND:ground wire)
Support camera type: cvbs analog camera.
Video format compatible for PAL, NTSC, SECAM
TTL speed: Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more
Optical Interface: SC/UPC
Transmission distance: Up to 20Km
Power Supply: 5.5V-26V: (2S-6S Battery)
Power Consumption: Less than or Equal to 5W
Communication Interface: MX-SH1.0mm-5P: CRSF Interface/CVBS video port
Others:
Board size: 50x30x8.5cm (LxWxH)
Net weight: 12g/Sky End, 12g/Ground End
How to connect?
Sky terminal
Fiber Wavelength: 1310nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the flight control's CRSFTX,
TX is connected to the flight control's CRSFRX,
AV is connected to the flight control's AV signal output port,
155M 1310nm 20km
VCC power supply voltage is 5.5V~26V
Ground terminal
Fiber wavelength: 1550nm
Interface : RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the remote control receiver,
TX is connected to the CRSFRX of the remote control receiver,
AV is output to the AV signal input port of the display or VTX,
VCC power supply voltage is 5.5V~26V
