HD 960P CVI/TVI/AHD

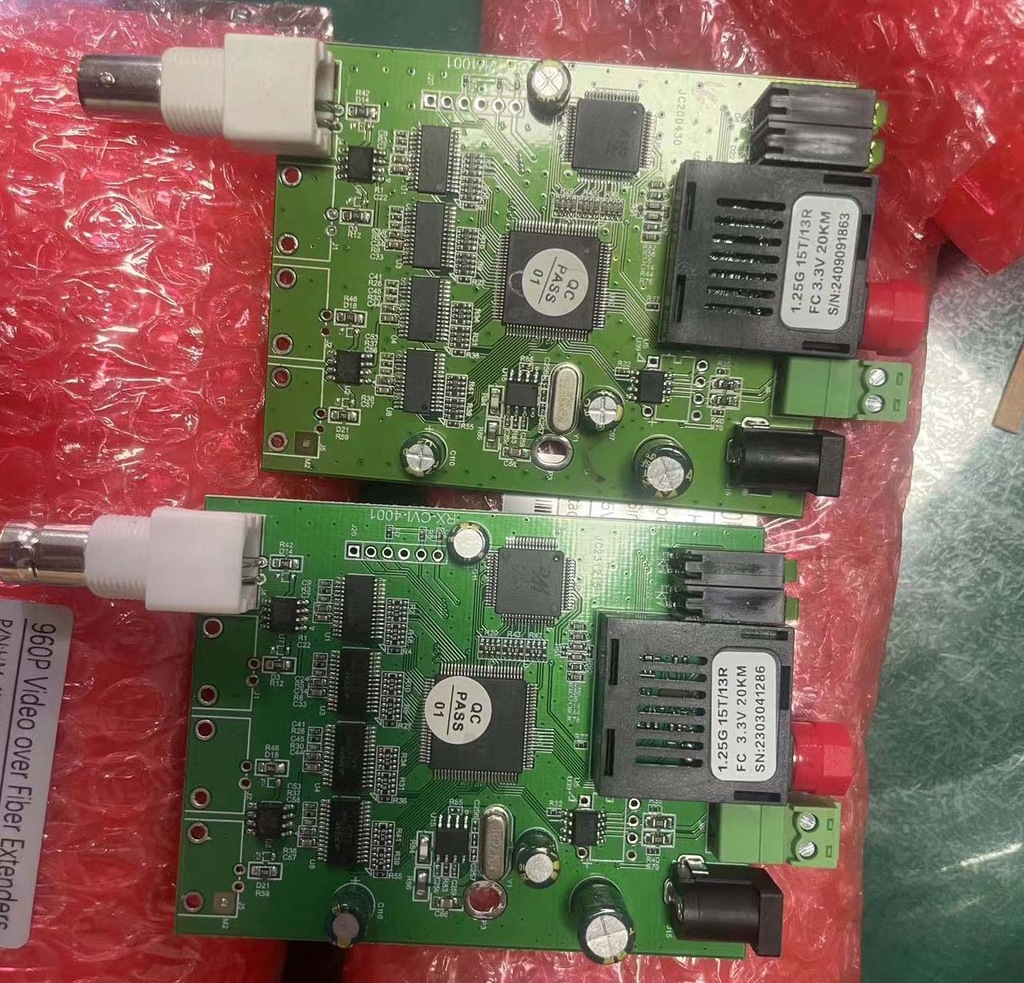

960P Video over fiber converter with RS485 data PC board A pair
HM-1V1D-960P-20Km-PCBA
This video over fiber extender is used to send 960P/720P CVI AHD TVI HD Video signals over fiber optic cable to remote display device, Long transmission distance up to 20km by singlemode fiber . Support 960P/720P CVI TVI AHD HD Cameras and analog (CVBS) cameras
Note: Packing not include outer box and power adapter. if you need, contact us .
Support camera type:
TVI: 960P (1280×960), 720P (1280×720)
CVI :960P (1280×960), 720P (1280×720)
AHD :960P (1280×960), 720P (1280×720)
Analog cameras (video format :PAL, NTSC, SECAM )
Feature:
1. This video over fiber system is used to send 960P/720P CVI AHD TVI HD Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.
2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber 0~300 meters
3. Support 960P/720P CVI TVI AHD HD Cameras and analog (CVBS) cameras.
4. Video format compatible for PAL, NTSC, SECAM
5. Mean Time between failures:More than 100,000 hours
6. Plug and play, no need to set up.
Optical index:
Optical Interface : FC
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatiable with multimode fiber.
Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~200meters
Video Index:
Video : 1 channel
Video Interface: BNC
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
Data index:
RS-485 reverse direction data, for remote control camera.
Connector: terminal block, 2 wires.
General index
1. Power Adapter: AC100~240V DC 5V2A (US/EU/UK/AU standard is optional)
2. Working temperature: -40 ~ + 85 degree
3. Storage temperature: -40 ~ + 85 degree
4. Humidity: 0 ~ 95% non-condensing
5. Mean Time between failures: ≥100,000 hours
Package Include:
1 x Video Transmitter Board
1 x Video Receiver Board
1 x User manual
Support camera type:
TVI: 960P (1280×960), 720P (1280×720)
CVI :960P (1280×960), 720P (1280×720)
AHD :960P (1280×960), 720P (1280×720)
Analog cameras (video format :PAL, NTSC, SECAM )
Feature:
1. This video over fiber system is used to send 960P/720P CVI AHD TVI HD Video signals to remote display devices, Using a single FC/FC Fiber Optic cable.
2. Long Transmission distance, singlemode fiber 0~20Km, and compatible with multimode fiber 0~300 meters
3. Support 960P/720P CVI TVI AHD HD Cameras and analog (CVBS) cameras.
4. Video format compatible for PAL, NTSC, SECAM
5. Mean Time between failures:More than 100,000 hours
6. Plug and play, no need to set up.
Optical index:
Optical Interface : FC
Fiber optic: Single-mode (9/125μm), Multimode 50/125um ,62.5/125μm
Applicable fiber optic: singlemode, and compatiable with multimode fiber.
Transmission distance: single-mode fiber 0-20KM, Multi mode fiber 0~200meters
Video Index:
Video : 1 channel
Video Interface: BNC
Video Input / Output Impedance : 75ohm ( unbalanced ) ;
Video Bandwidth 100MHz;
Video format compatible PAL, NTSC, SECAM;
The sender input level: > 500mVp-p
The receiver output level: 1Vp-p
Input and output impedance: 75 ohm
The receiver rise and fall times:<0.8ns
The receiver maximum jitter:<0.2 UI
Data index:
RS-485 reverse direction data, for remote control camera.
Connector: terminal block, 2 wires.
General index
1. Power Adapter: AC100~240V DC 5V2A (US/EU/UK/AU standard is optional)
2. Working temperature: -40 ~ + 85 degree
3. Storage temperature: -40 ~ + 85 degree
4. Humidity: 0 ~ 95% non-condensing
5. Mean Time between failures: ≥100,000 hours
Package Include:
1 x Video Transmitter Board
1 x Video Receiver Board
1 x User manual
