3G/HD SDI Converters
3G SDI Tally fiber converters
PMD-3GSDI-1V1D1T-LC
It can extend Uncompressed 3G-SDI or HD-SDI (optional) Video over a fiber optic to far end. Suitable for Universal Single-mode and multi-mode. Singlemode single fiber can reach up to 12.4miles (20Km), Multimode single fiber up to 300 meters.
It is with RS485 reverse direction data or Tally light function (Optional use).
Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz and backward compatible. Comply with SMPTE 424M(3G-SDI, 2.97Gbps), SMPTE 292M(HD-SDI, 1.485Gbps),259M(SD-SDI, 270Mbps) standardsand DVB-ASI.
It is with RS485 reverse direction data or Tally light function (Optional use).
Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz and backward compatible. Comply with SMPTE 424M(3G-SDI, 2.97Gbps), SMPTE 292M(HD-SDI, 1.485Gbps),259M(SD-SDI, 270Mbps) standardsand DVB-ASI.
Feature:
Broadcasting level design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
Support Video loop out and RS485 reverse direction data or Tally light function (Optional).
Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
Plug and play, No need to set up.
Video Resolution:
3G-SDI version: Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz and backward compatible. Comply with SMPTE 424M(3G-SDI, 2.97Gbps), SMPTE 292M(HD-SDI, 1.485Gbps),259M(SD-SDI, 270Mbps) standardsand DVB-ASI.
Attention

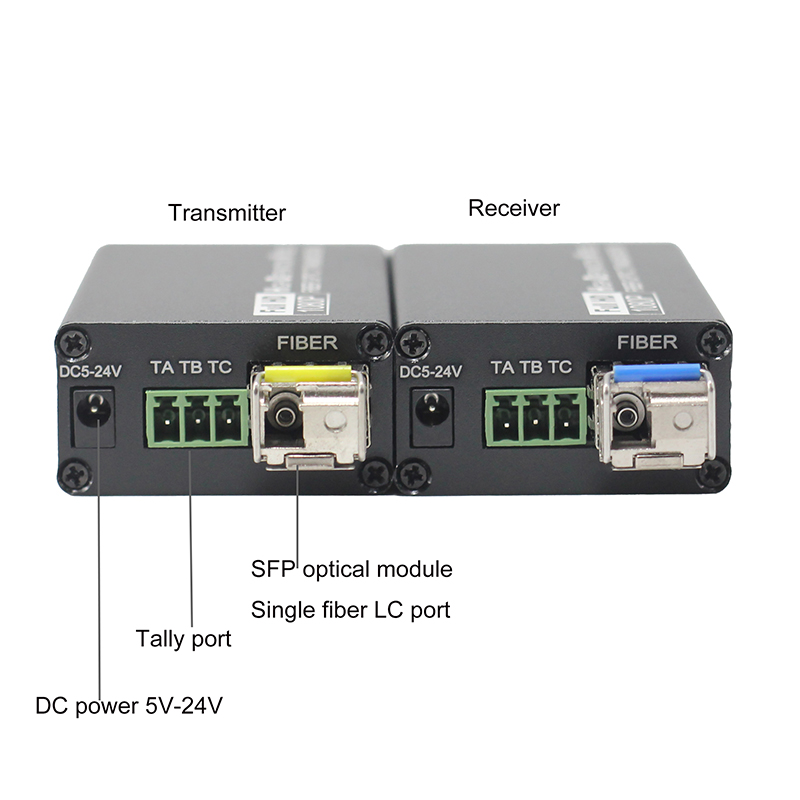

RS485 data and Tally port (Green connector), when you use this products, either using RS485 data or using Tally light function, both RS485 and Tally light function can not be used at same time.
SDI Video technical :
Connector type: 75 Ω BNC
Input channel: 1
Reflection loss:>15DB
Balance:> 100M@2970Mbps Belden 1694A cable
> 200m@1485Mbps Belden 1694A cable
> 350m@270Mbps Belden 1694A cable
Optical technical:
Cable transmission type: single-mode single fiber (multi-mode is optional)
Working wavelength: 1310nm/1550nm
Reflection loss:>15dB
Jitter:<0.2UI
Fiber connector: LC/PC
Serial TV BNC output (EO/OE) is the same as the input
Output quantity: 1 HD-SDI output at the receiver end
Signal level: 800mV nominal
Rise/fall time: 200ps nominal
Overshoot:<10% amplitude
Electrical & Mechanical :
Working temperature: -25 ℃~+70 ℃
Power supply voltage: DC5V ~12V
Power consumption: 1W
EMI/RFI complies with FCC Part 15 Class A, EU EMC standards
Mean time between failures>100000 hours
Dimensions:110*40*20mm (LxWxH).
Product weight (including the outer packaging):0.5Kg/Set.
Data
1. Physical Interface: standard industry block terminal.
2. Interface signal: RS485 reverse direction.
3. Baud Rate:0-400Kbps.
4. BER <10 -9.
5. Operation Mode: Full duplex / half duplex.
Package Include:
1 x SDI over fiber transmitter
1 x SDI over fiber receiver
2x Power supply adapters
1x User Manual
Broadcasting level design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
Support Video loop out and RS485 reverse direction data or Tally light function (Optional).
Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
Plug and play, No need to set up.
Video Resolution:
3G-SDI version: Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz and backward compatible. Comply with SMPTE 424M(3G-SDI, 2.97Gbps), SMPTE 292M(HD-SDI, 1.485Gbps),259M(SD-SDI, 270Mbps) standardsand DVB-ASI.
Attention
RS485 data and Tally port (Green connector), when you use this products, either using RS485 data or using Tally light function, both RS485 and Tally light function can not be used at same time.
SDI Video technical :
Connector type: 75 Ω BNC
Input channel: 1
Reflection loss:>15DB
Balance:> 100M@2970Mbps Belden 1694A cable
> 200m@1485Mbps Belden 1694A cable
> 350m@270Mbps Belden 1694A cable
Optical technical:
Cable transmission type: single-mode single fiber (multi-mode is optional)
Working wavelength: 1310nm/1550nm
Reflection loss:>15dB
Jitter:<0.2UI
Fiber connector: LC/PC
Serial TV BNC output (EO/OE) is the same as the input
Output quantity: 1 HD-SDI output at the receiver end
Signal level: 800mV nominal
Rise/fall time: 200ps nominal
Overshoot:<10% amplitude
Electrical & Mechanical :
Working temperature: -25 ℃~+70 ℃
Power supply voltage: DC5V ~12V
Power consumption: 1W
EMI/RFI complies with FCC Part 15 Class A, EU EMC standards
Mean time between failures>100000 hours
Dimensions:110*40*20mm (LxWxH).
Product weight (including the outer packaging):0.5Kg/Set.
Data
1. Physical Interface: standard industry block terminal.
2. Interface signal: RS485 reverse direction.
3. Baud Rate:0-400Kbps.
4. BER <10 -9.
5. Operation Mode: Full duplex / half duplex.
Package Include:
1 x SDI over fiber transmitter
1 x SDI over fiber receiver
2x Power supply adapters
1x User Manual
