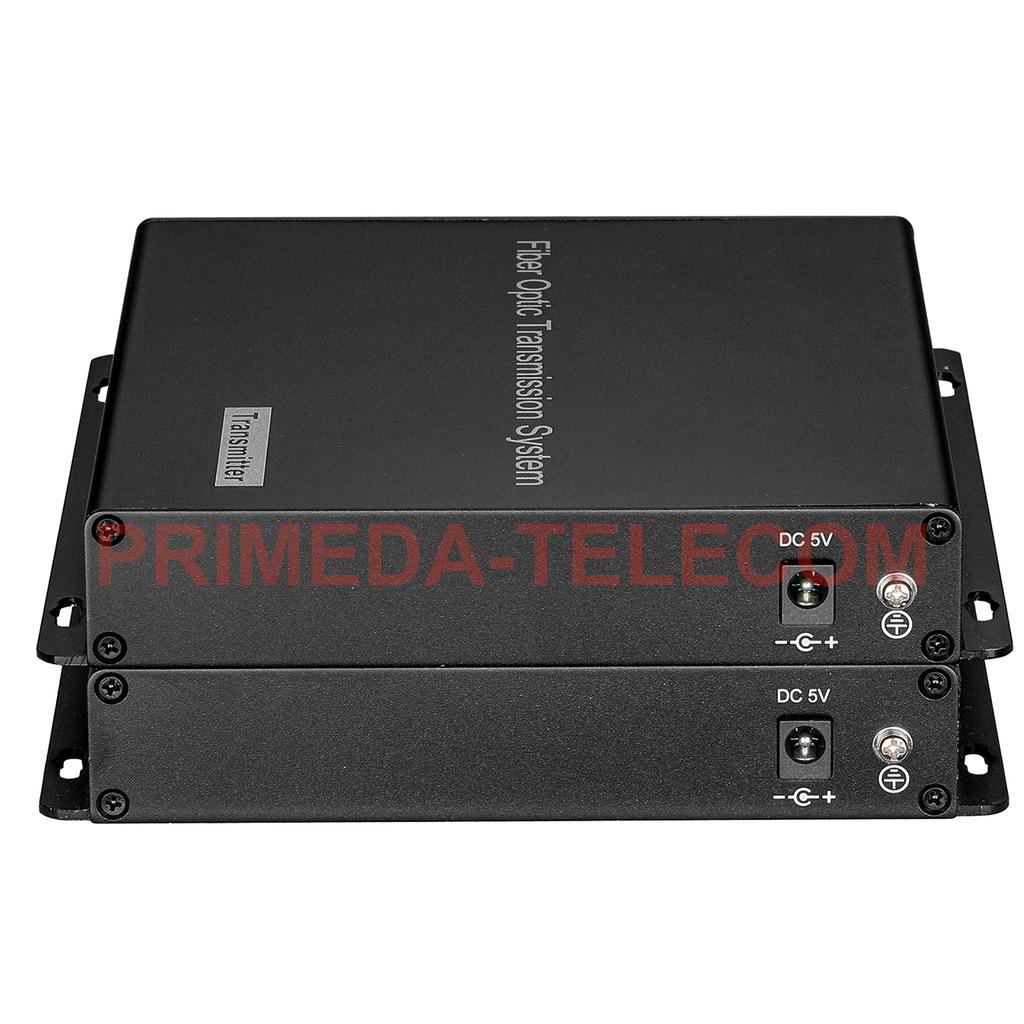

Audio over Fiber Extender
4 Bidi Analog Audio Fiber Converter
PMD-4A2W-RCA-FC

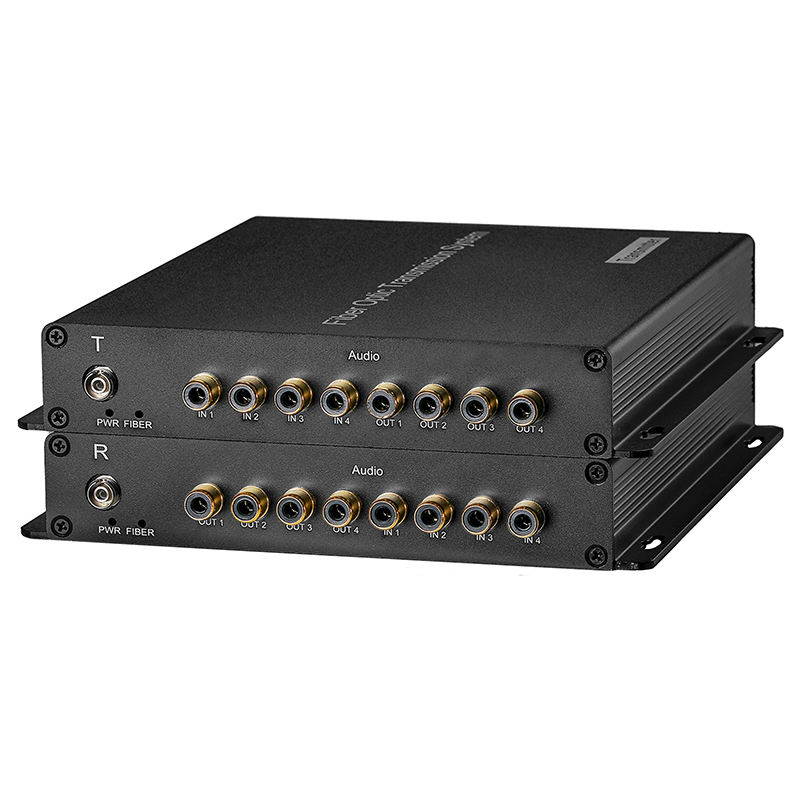

This unit can extend 4 Bidirectional Unbalanced RCA Audio over an optical fiber cable to far end. It allows 4 audio device synchronous transmission at two directions, No Step up required. 4 Audio signal is transmitted from T (TX) in the direction of R (RX), other 2 Audio signal is transmitted in reverse direction.
ST/SC/LC optical interface is optional. High quality and Wholesale price.
ST/SC/LC optical interface is optional. High quality and Wholesale price.
Features:
Compatible with Singlemode and Multimode optical fiber cable. Single mode single fiber up to 12.4 miles (20Km), Mutlimode single fiber up to 0.31 miles(500meters).
Adopt FPGA, digital coding/decoding and clock recovery technology, high integration and high stability ,it is much better than ordinary one on marketing.
LEDs for power supply and optical fiber link status indication which can monitor the operating status of the system.
Typically used in applications for Campus, public places, Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and more. and are available for stand-alone and desktop type, or wall mounted, installations.
No need to set up ,Simply plug in an Optical FC port and RCA audio connectors at TX and RX sides,
Audio Specification
1.Full-size output sine wave, 997 Hz; MCLK = 12.288 MHz. Fs basic probability mode = 48 kHz, SCLK = 3.072 MHz,
2.Measurement bandwidth 10hz to 20khz; Fs is high rate mode = 96 kHz,
Optical Port:
Optical connector: FC (SC/ST/LC is optional).
Wavelength: 1310nm&1470nm~1610nm.
Tx power ＞-7db
Rx sensitivity ＞-24db
Transmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.
Audio index:
Dynamic bandwidth:96dB
Total harmonic distortion (THD): -68dB
Signal-to-noise ratio: -68dB
Signal-to-noise ratio（S/N）: 60dB
Sampling frequency: 32kHz 44.1kHz 48kHz
Audio A/D sampling: 24 Bit
Frequency response: 10～20kHz
Gain mismatch between channels: 0.1dB
Gain error: ±5%
Gain drift: 100 ppm/°C
Amplitude-frequency characteristic: ≤±0.5 dB
Audio input/output impedance: 600 Ω balance
Audio maximum input/output voltage: 0~2V
LED indicators:
PWR: ON upon power in.Off upon powered off
FIBER:Off when fiber optical signal is blocked or excessive attenuation. On when fiber signal is received properly
General Spec:
Operating temperature :-20 to 70°C
Storage temperature: -40 to 80°C
Relative humidity: 5 to 95%（non-condensing）
Working life(MTBF): ＞100,000hours
Installation: stand-alone.
Support wide range working Voltage: AC100-240V 50/60Hz, DC5V
Power plug：US/EU/UK/AU standard is optional.
Dimension: 172mm(L)×167mm(W)×28mm(H).
Package include:
1x Unbalanced Audio Fiber Transmitter
1x Unbalanced Audio Fiber Receiver
2x Power supply adapter
1x Manual.
