Video TTL Sbus Optical Transceiver Module FC/UPC DC 5.5-26V 3.5mm Video XT60 Power for Drones SM 20Km/40Km/60Km/80Km

Video TTL Sbus Optical Transceiver Module FC/UPC DC 5.5-26V 3.5mm Video XT60 Power for Drones SM 20Km/40Km/60Km/80Km

$45.00 $36.00

Video TTL Sbus Optical Transceiver Module FC/UPC DC 5.5-26V 3.5mm Video XT60 Power for Drones SM 20Km/40Km/60Km/80Km

$45.00 $36.00
Model: 20Km-Sky+Ground

Description:

The Video TTL optical module is developed for UAV signal transmission system with 1 channel analog video and 1 channel high speed TTL level signal. The device has the features of safety and reliability, stable performance, overall light weight, cost-effective and so on.

Application Scenario: FPV remote control, emergency rescue communication, power line inspection, border patrol monitoring, tunnel/underground pipeline inspection and more



Product function:

1 cvbs video

1 TTL

3.5mm interface for video, XT60 yellow port for power.

FC/UPC fiber interface

S/M, 20Km/40Km/60Km/80Km(Optional)

DC 5.5-26V



Product features:

1.Long communication distance up to 20Km/40Km/60Km/80Km/100Km transmission by an optical fiber cable, Zero loss of long-distance signal, suitable for FPV control.

2.Wide voltage power supply 5.5-26V: compatible with a variety of batteries to ensure stable work, suitable for drones.

3.Lightweight design: compact size, reducing the burden on equipment and improving flight efficiency.

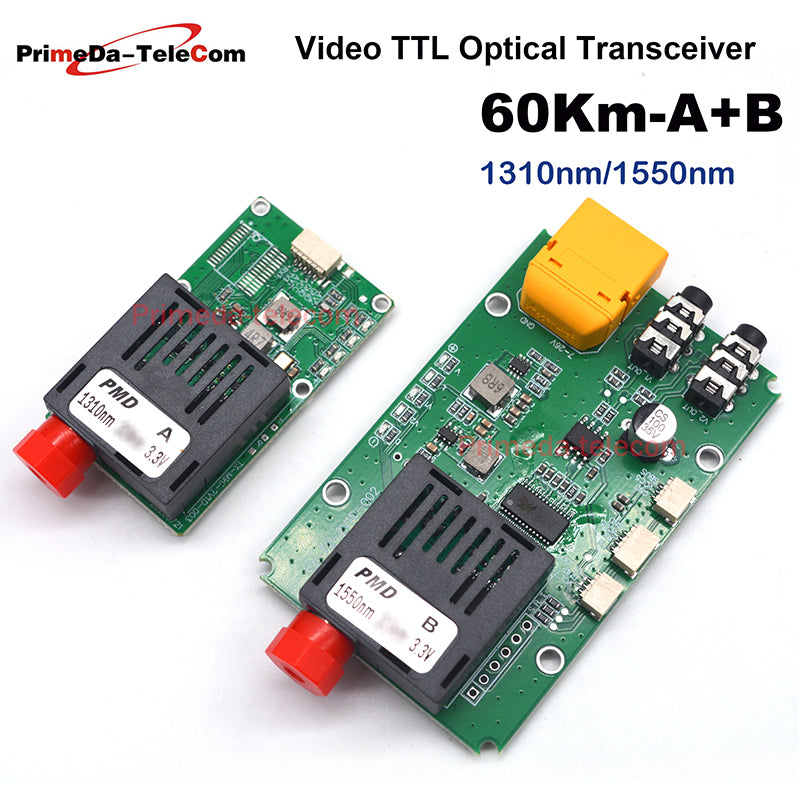

4.Dual-wavelength fiber optic communication: 1310nm at the sky end and 1550nm at the ground end, guaranteeing the signal transmission quality.

5.Multiple indicator monitoring: power, fiber optic, video, data status indication can monitor the operating status of the system.



Specification:

Product Name: Video TTL Optical Transceiver Module

Power Supply: DC 5.5-26V (2S-6S battery)

Power Consumption: ≤5W

Communication Interface: MX-SH1.0mm-5P: CRSF interface/CVBS video port. two 3.5mm interface for video,XT60 yellow port for power.

Fibre Optic Interface: FC/UPC

Communication distance: Max. 20Km/40Km/60Km/80Km/100Km

LED Indicator Lights: Power Indicator, Fibre Optic Indicator, Video Signal Indicator, Data Indicator

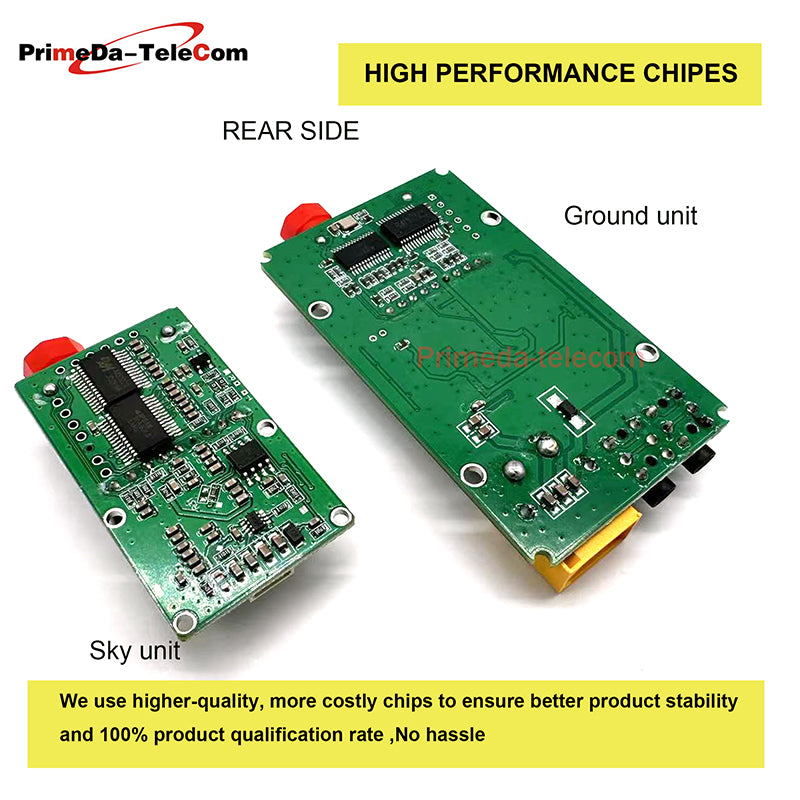

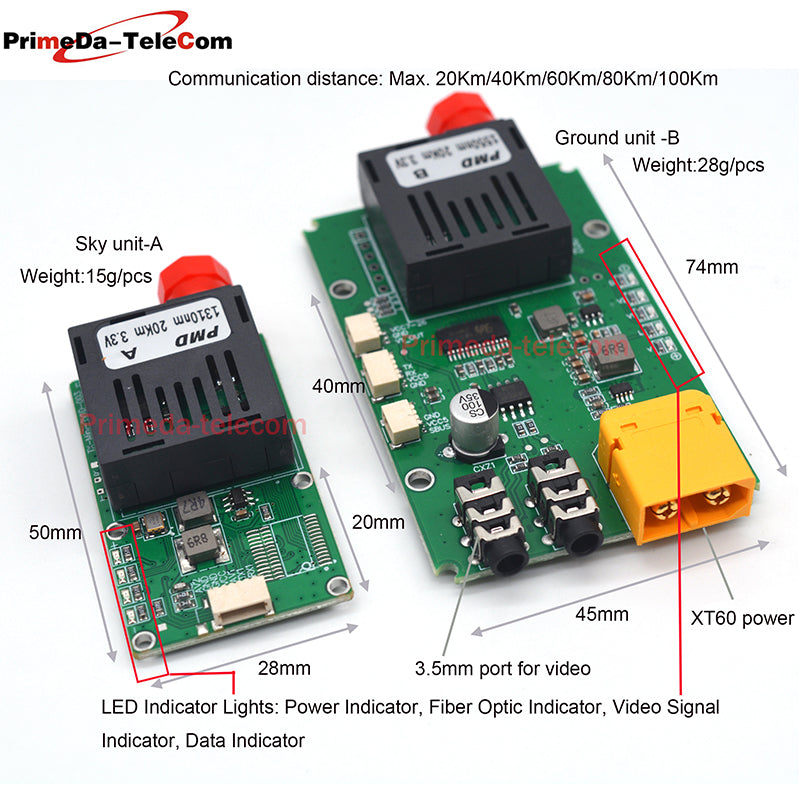

Board Size/ Net weight:

TX/A: 50x28x12.5mm, 15g/pcs

RX/B: 74x45x12.5mm, 28g/pcs

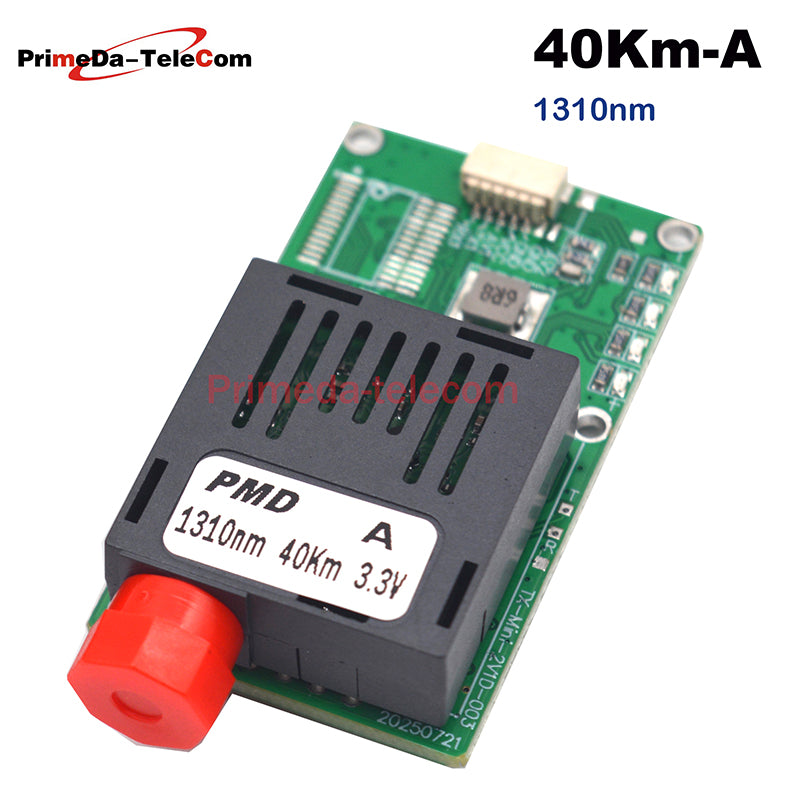

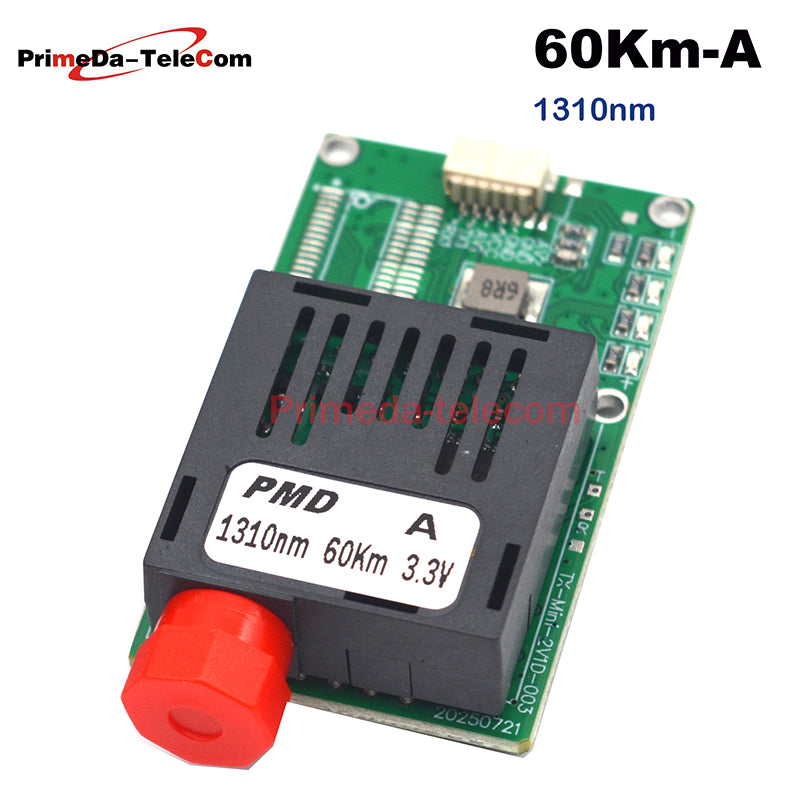

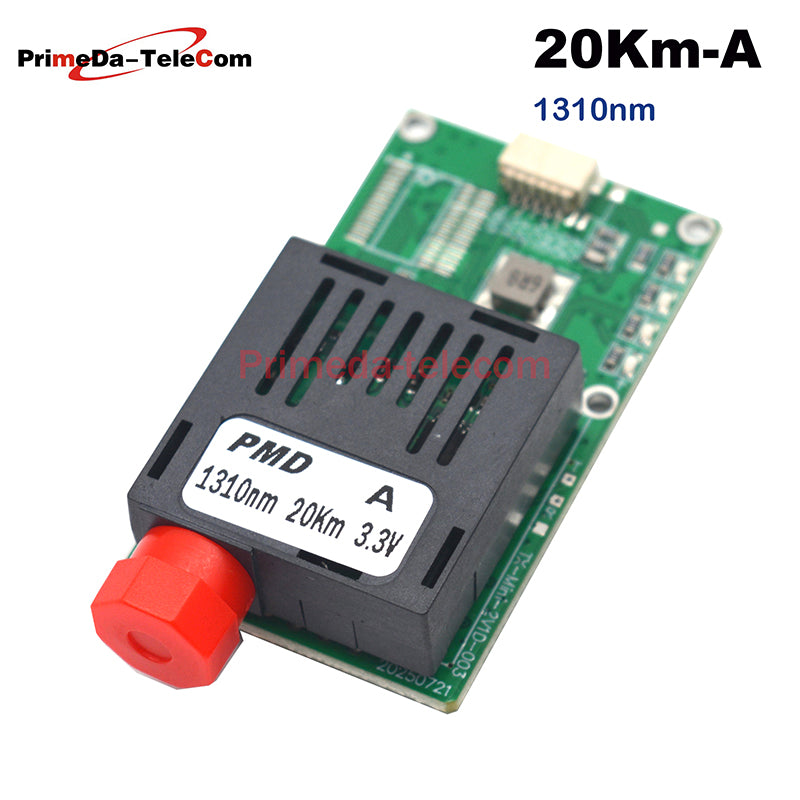

Sky side/A:

The fiber optic wavelength of the sky side is 1310nm, the interface is defined as: RX/TX/AV/VCC/GND, RX access to the CRSFTX of the flight control, TX access to the CRSFRX of the flight control, AV access to the AV signal output port of the flight control.

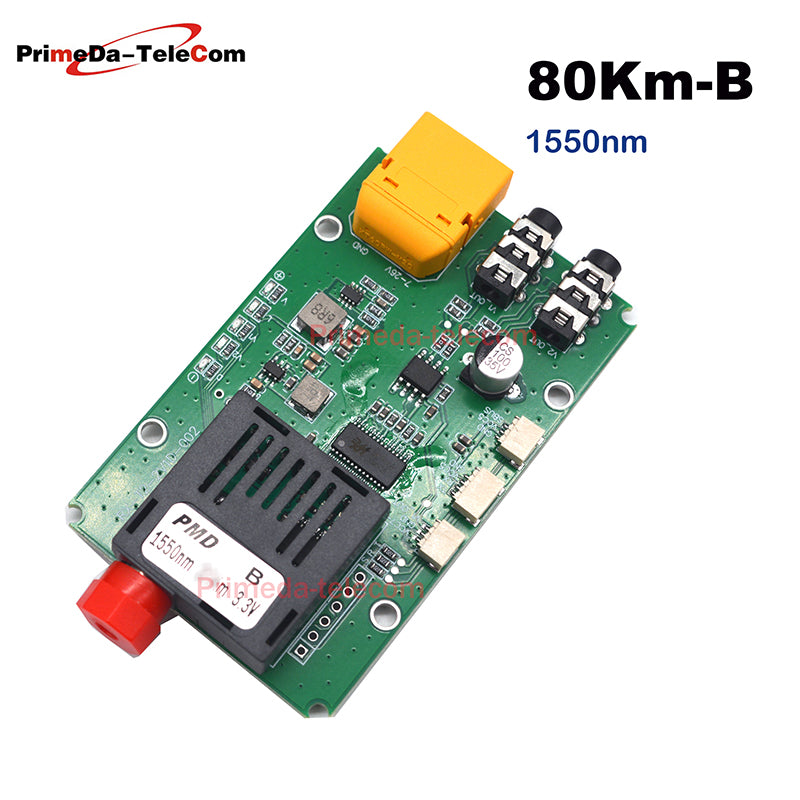

Ground side/B:

The fiber optic wavelength of the ground side is 1550nm, and the interface is defined as RX/TX/AV /CC /GND, RX accesses the CRSFTX of the remote control receiver, TX accesses the CRSFRX of the remote control receiver, and AV outputs to the AV signal input port of the display or VTX. two 3.5mm interface for video,XT60 yellow port for power.





Precautions:

1. Please note that the power supply voltage should not exceed 26V, otherwise there is a risk of burnout.

2. Please take note that the minimum voltage should not be less than 5V, otherwise the chip of the board may not work properly.

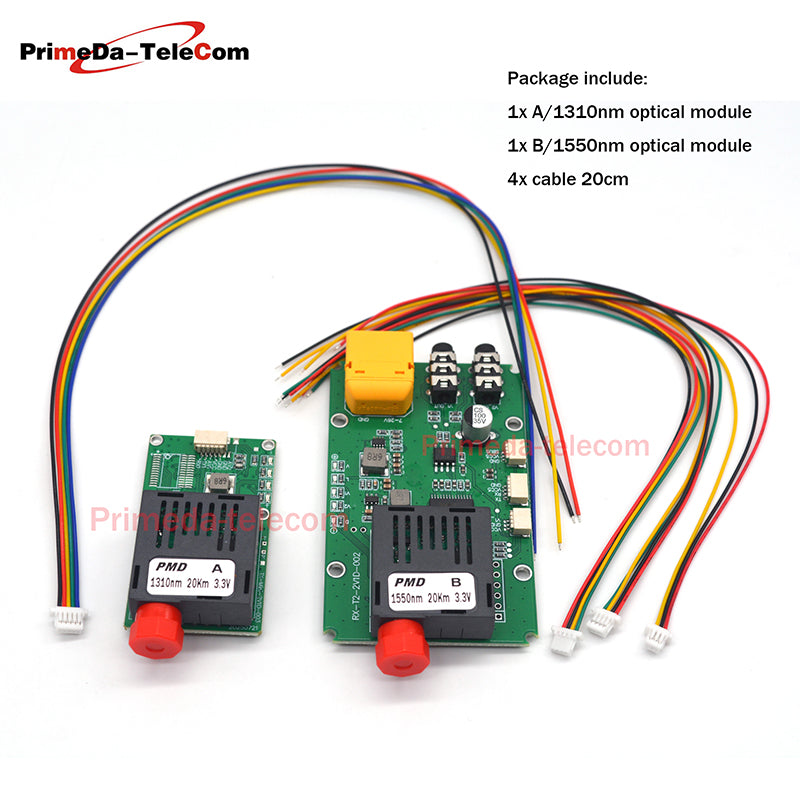

Package include:
