VGA over Fiber Extenders with KVM USB stereo 3.5mm Audio ,1080p full HD Video fiber converters adapter,SC Singlemode single fiber up to 20Km,Multimode up 500m, A set

Description: This VGA over fiber system is used to send 1080p VGA a/v signals to remote transmission...
Vendor: Primeda-telecom
SKU: PMD-VGA-KVM-SC
Availability: In Stock
$92.80
$116.00
$92.80
Please hurry! Only 99 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $92.80
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

VGA over Fiber Extenders with KVM USB stereo 3.5mm Audio ,1080p full HD Video fiber converters adapter,SC Singlemode single fiber up to 20Km,Multimode up 500m, A set

VGA over Fiber Extenders with KVM USB stereo 3.5mm Audio ,1080p full HD Video fiber converters adapter,SC Singlemode single fiber up to 20Km,Multimode up 500m, A set

$116.00 $92.80

VGA over Fiber Extenders with KVM USB stereo 3.5mm Audio ,1080p full HD Video fiber converters adapter,SC Singlemode single fiber up to 20Km,Multimode up 500m, A set

$116.00 $92.80

Description:

This VGA over fiber system is used to send 1080p VGA a/v signals to remote transmission device through single Fiber Optic cable with SC fiber connector.

Support video Resolution up to 1920x1080P@60Hz, Support KVM remotely controlled by Keyboard and mouse,support a stereo 3.5mm mini jack audio.

The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single-mode 9/125μm, and up to 500m (1640ft.) over single multi-mode 50/125 or 62.5/125μm. Suitable for both universal fiber type.

1080p HD VGA signal transmission,Tiny Latency ,Lossless. Super-stability transmission and Long work life, The usual time between failures (MTBF) greater than 100,000 hours.

Simple to Install, No need drive, Plug and Play.



General Index:

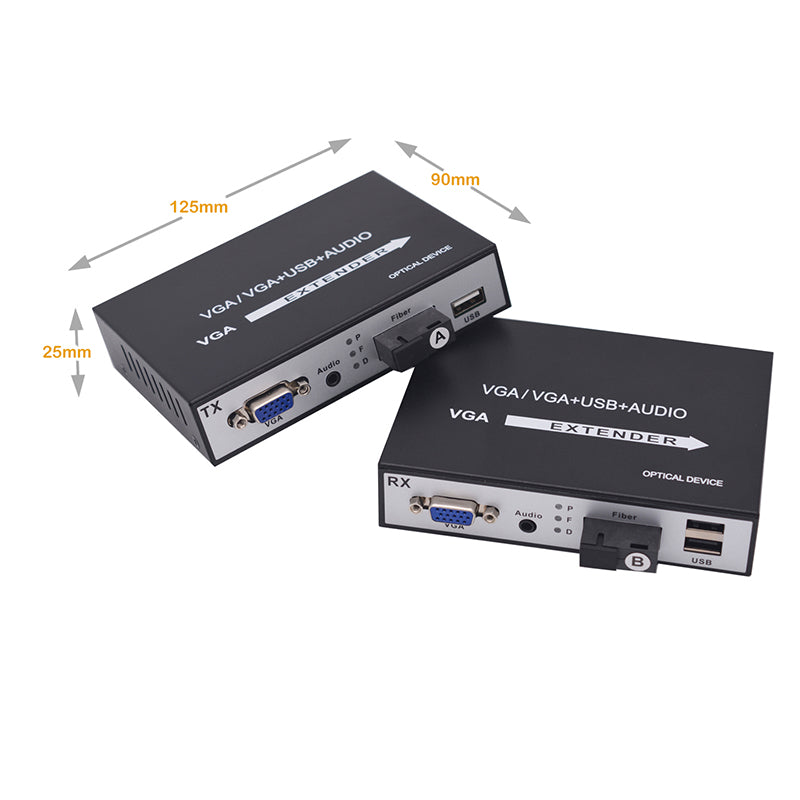

1.Size: 125x90x25mm (LxWxH).

2. Working voltage : AC100~240V,DC5V2A, US/EU/UK/AU power standard is optional.



Interface description:

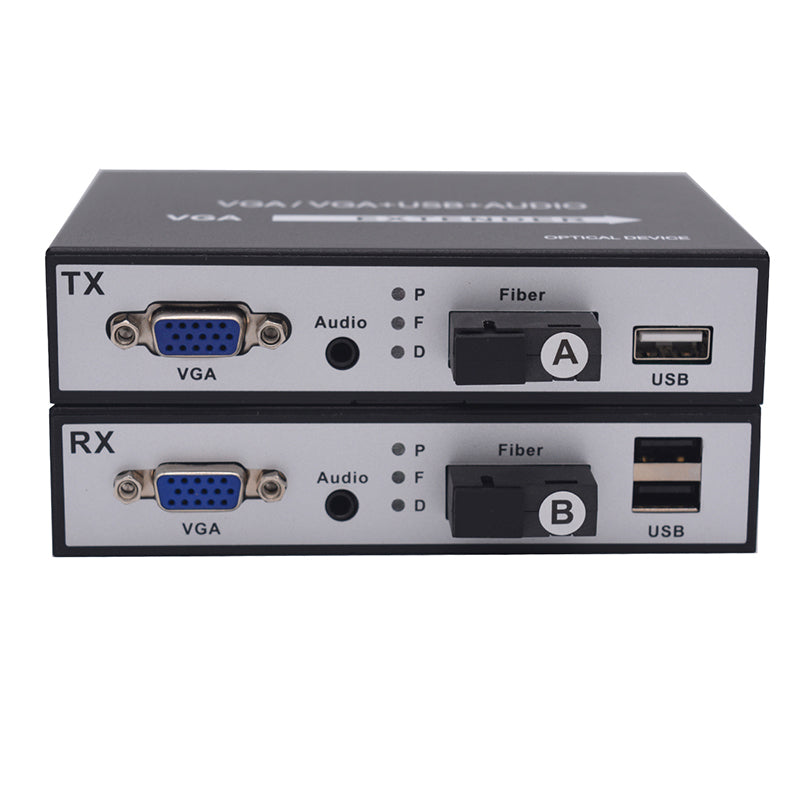

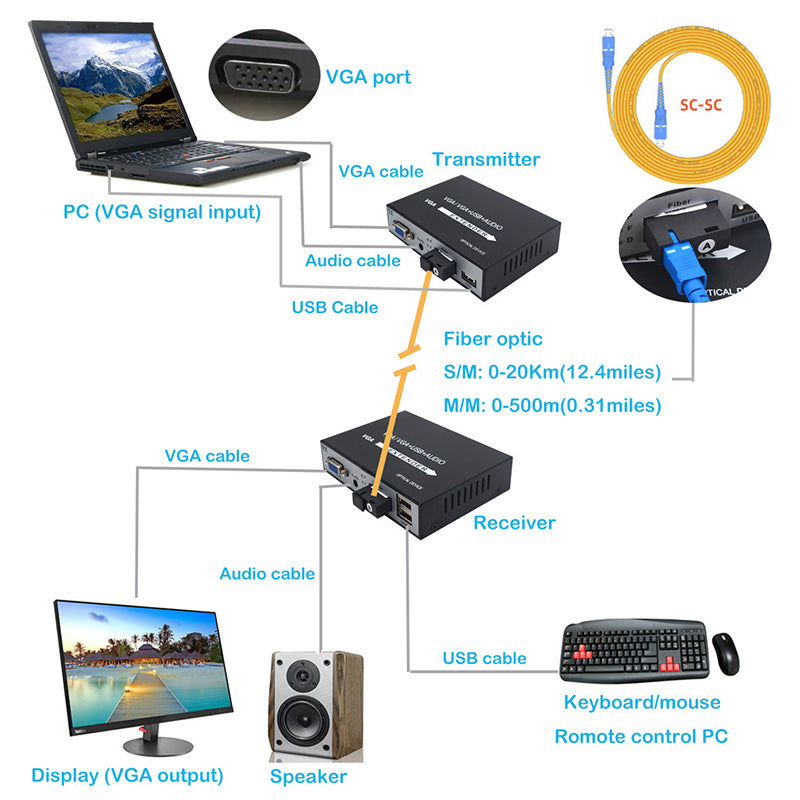

1.VGA : 15Pin female. Transmitter connected to the computer, receiver connected to the display.

2.Audio: Stereo 3.5mm mini jack audio.

3.Fiber: SC fiber interface, connect transmitter and receiver.

4.USB on TX: connect to PC. USB on RX: connect to keyboard and mouse for remote control.

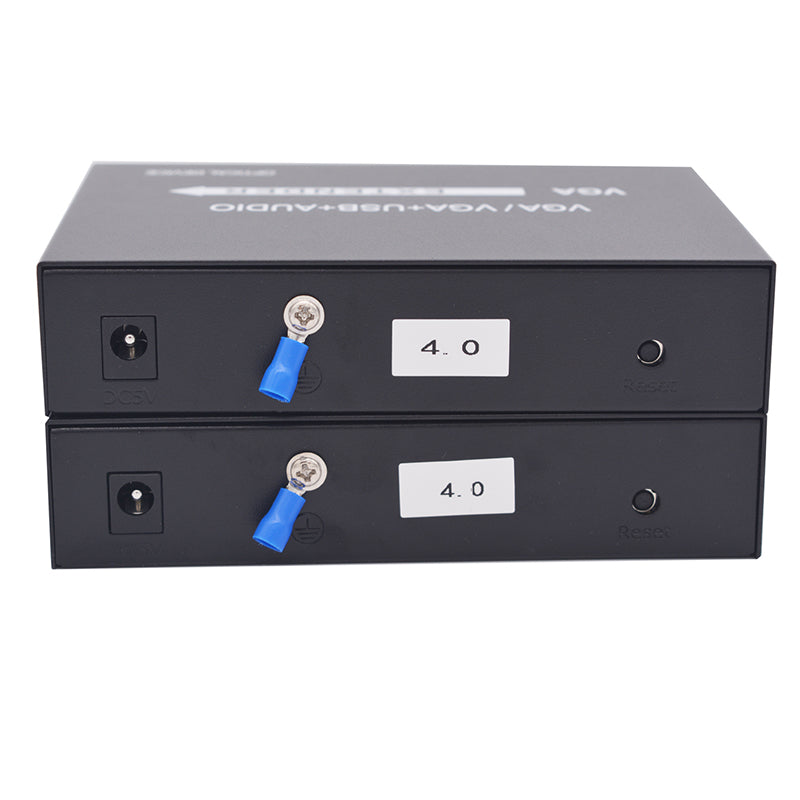

5.RESET reset button, which can adjust the resolution of the screen accordingly.

6.DC-5V power adapter that allows voltages up to 5V.

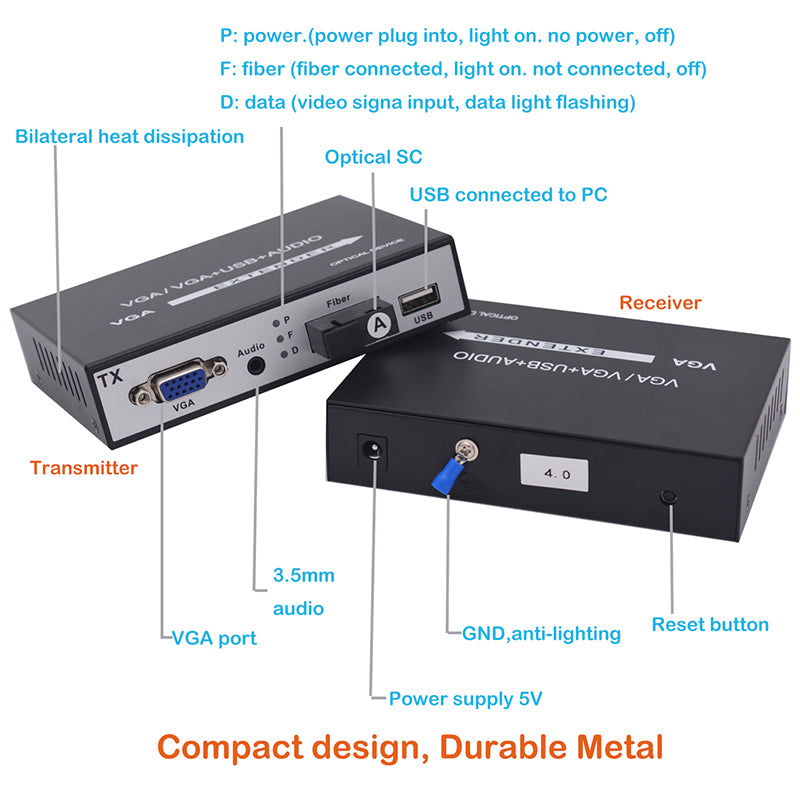

LEDs Indicator description:

1.P:power indicator, always on after power on.

2.F: fiber optic light, the fiber does not shine, the fiber communication normal constant.

3.D: data light, always bright after connecting VGA signal, there is data communication flashing.

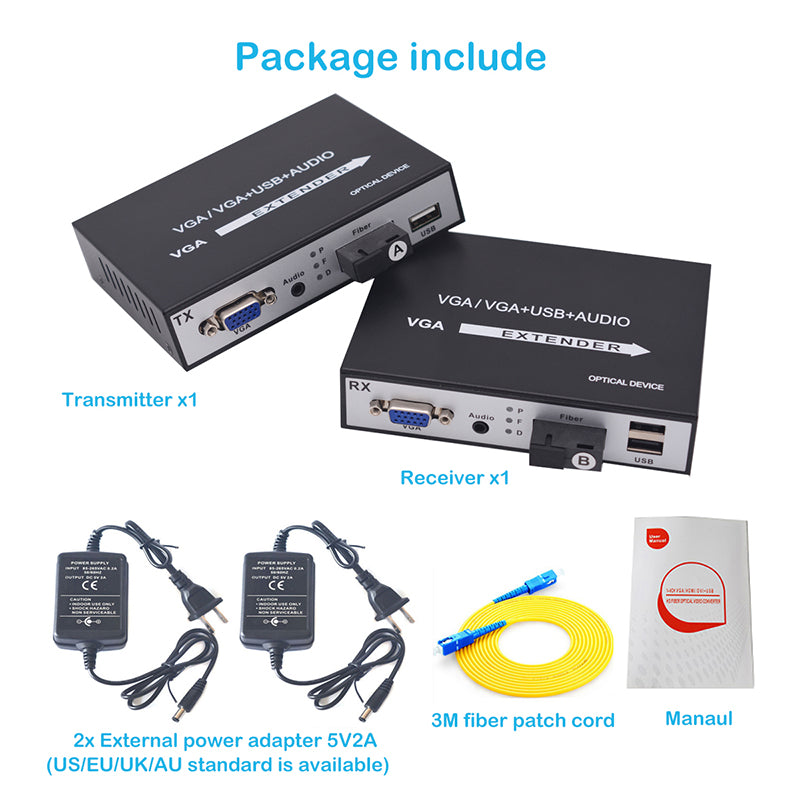

Package contents:

1x VGA transmitter

1x VGA receiver

2 x power supply adapter AC100~240V DC5V/2A

1 x User manual
