Description:
the unit is a RS-485 interface fiber MODEM with asynchronous transmission half-duplex transparent protocol, which is the best for connecting remote terminal unit (RTU) to host (HOST) or distributed data acquisition system (SCADA) controller select. The product uses optical fiber as the transmission medium to improve the transmission performance of the system and effectively avoid the threats to communication equipment such as lightning strikes, surges and electromagnetic interference in harsh environments.
Feature:
Extend your RS-485 data: 1 bidirectional RS-485 over an optical fiber cable to far end, Long transmission distance, Singlemode fiber 0-20 km(12.4miles) and compatible with Multimode fiber 0-500m(0.31miles).
Suitable for Access control system, Alarming control system, Industrial automatic control, LED screen control and Parking lot, etc.
Zero-latency automatic forwarding, Automatically detect serial port rate, distinguish and control data transmission direction.Maximum communication rate 500Kbps. The interface provides 600W surge protection, 15KV electrostatic protection.

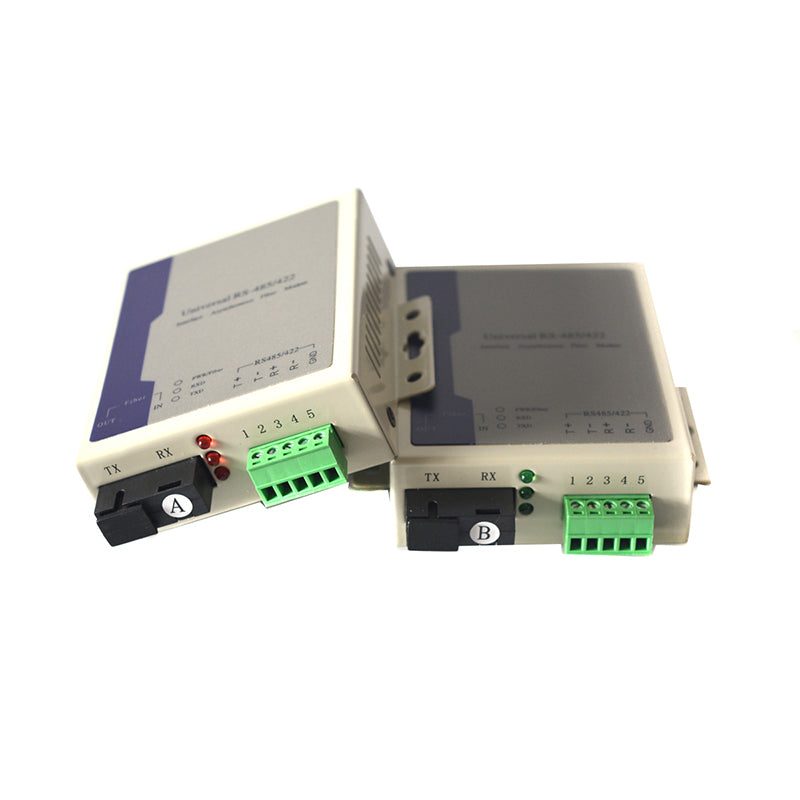

SC connector for fiber optical port, Green connector for RS-485 port(pin 1+, 2-). LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system.
Simple to Install, Plug and Play.

Specification:
1.Complies with EIA RS-485 standard.
2.RS-485 signal T+ T- (corresponding to industrial terminal pin 1+, 2-)
3.Working mode Asynchronous work, point to point.
4.Direction control adopts data flow automatic control technology to automatically determine and control the data transmission direction.
5.Baud rate 0-120Kbps, automatic detection of signal rate.
6.Fiber wavelength Multimode 850nm, single mode 1310nm.
7.Electrical port transmission distance RS-485 port 200 meters max.
8.Transmission distance 0-500meters for multi-mode, 0-20kilometers for single-mode (40Km/80km/60km/100km is customizable).
9.Interface protection 600W surge protection, 1500V electrostatic protection.
Other specification:
Power supply: AC100~240V,DC5V (US/EU/UK/AU standard plug is optional)
Power consumption: 2.5 w
Size:103x70x27mm(LxWxH)
Weight: 0.8Kg/pair.

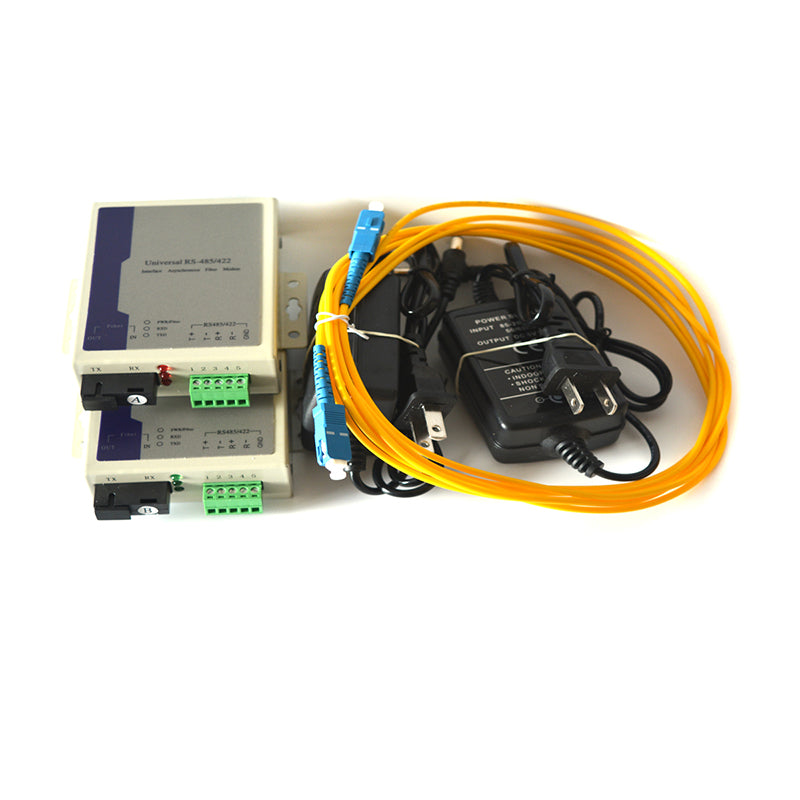

Package contents:
1x RS-485 data Transmitter.
1x RS-485 data Receiver.
2 x power supply adapter
1 x User manual
