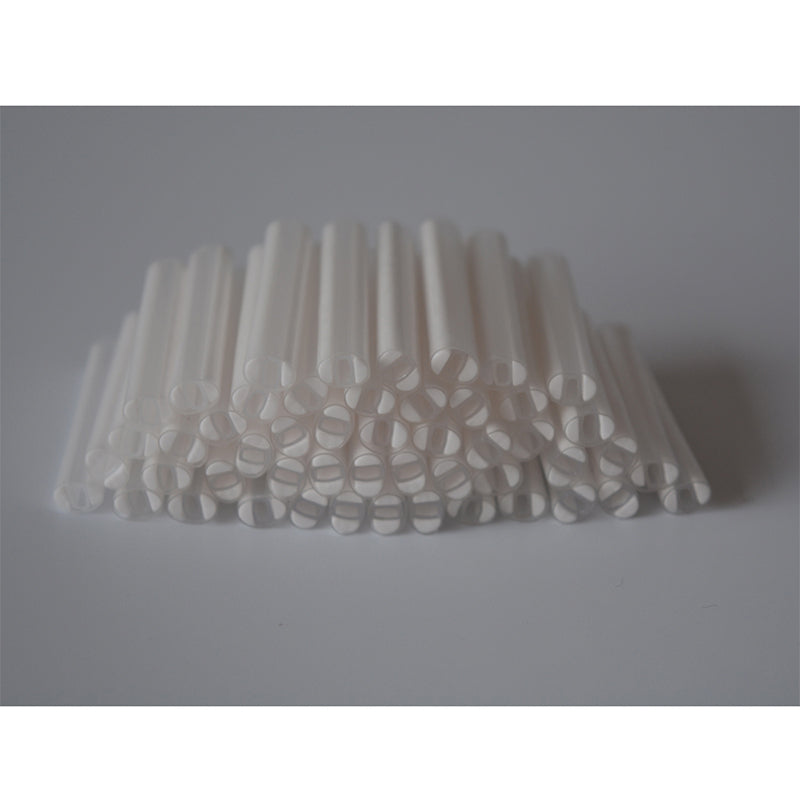

Ribbon Mass Fiber optic Splice Fusion Protection sleeves Clear, Dual ceramic D-shape strength, 100pcs

Product description This Ribbon type sleeves are applied in bar fiber-optic cables of the RIBBON type. They...
Vendor: Primeda-telecom
SKU: GT-12s-100
Availability: Out Of Stock
Product Type: Fiber splice sleeves
$20.90
$28.00
$20.90
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $20.90
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

Ribbon Mass Fiber optic Splice Fusion Protection sleeves Clear, Dual ceramic D-shape strength,  100pcs

Ribbon Mass Fiber optic Splice Fusion Protection sleeves Clear, Dual ceramic D-shape strength, 100pcs

$28.00 $20.90

Ribbon Mass Fiber optic Splice Fusion Protection sleeves Clear, Dual ceramic D-shape strength, 100pcs

$28.00 $20.90

Product description

This Ribbon type sleeves are applied in bar fiber-optic cables of the RIBBON type. They enable to secure up to twelve fibers in one sleeve. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices and quickness of assembly. Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.

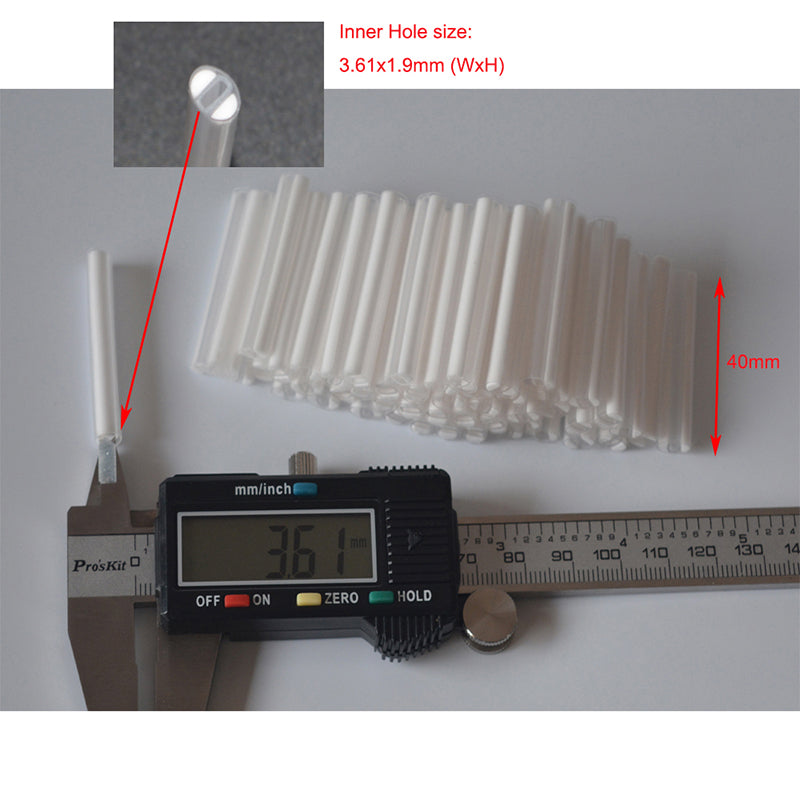

It is characterized by ability to secure up to 12 fibers in one shield and quickness of assembly (120s). The sleeve consists of a D-shaped ceramic strengthening element (dimensions 1.55x2.9mm up to 6 fibers, 1.9x3.9mm up to 12 fibers).

The standard sleeves are made in clear color.





Features

1. Special design by the cross linking polyolefin melt pipe, and composed of ceramic fiber connection. Protect components, no influence of fiber optical properties

2. Protect and improve in mechanical strength

3. Simple operation, reduce the risk of fiber damage during installation

4. Transparent, casting fiber connection clearly

5. Sealing structure make the splice free from effect of temperature and humidity.

6. Operating fully recovery temperature:-45 to 100 degree

7. Minimum fully recovery temperature: 120 degree



Product properties

Pin diameter (D type):  1.9x3.9 (up to 12 fibers)mm ceramic

Minimum installation temperature: 120 °C

Max installation time: 85 seconds

Standard color: Clear

Compliant norms: UL224, MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006

RoHS compliant

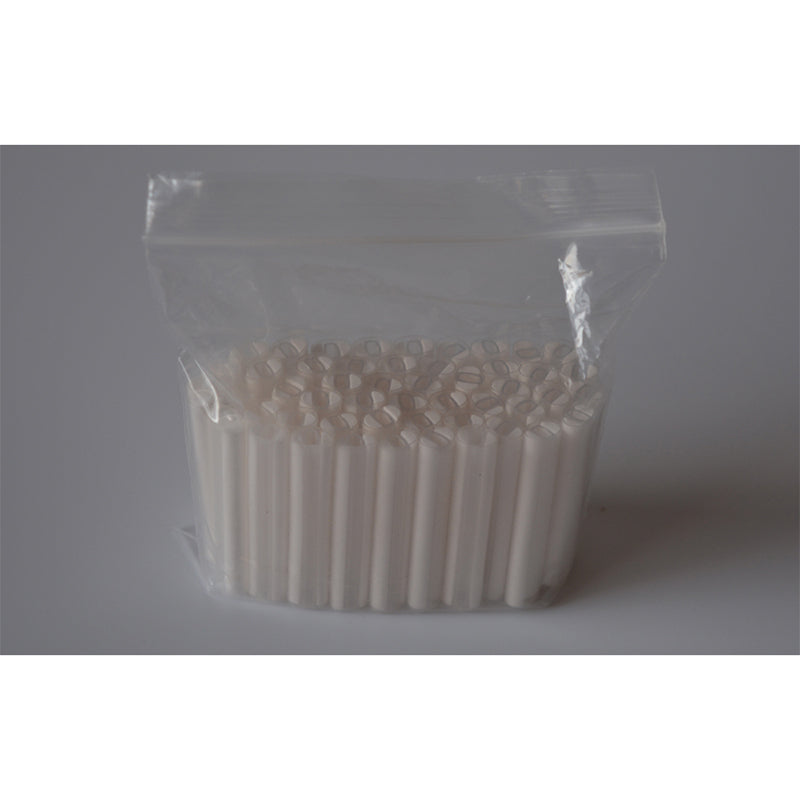

Packing:

100PCS, 50pcs packed to one zip-bag



Our factory, professional ,high effecient workshop.
