Please take note that the product is customized type ,The lead time of production is 4-6 weeks, before you order ,please confirm to us if you accept this long production time.

Function:

4x 12G-SDI (forward direction, from TX to RX)-- Supports pathological code (High Quality technology)

1x 12G-SDI (reverse direction, from RX to TX)---Supports pathological code (High Quality technology)

4x Gigabit Shared Ethernet

Equipped with Anton‑Bauer  (Optional)

ST fiber interface, Singlemode single fiber up 10Km

Power supply: 4 pin Canon DC12V

Description:

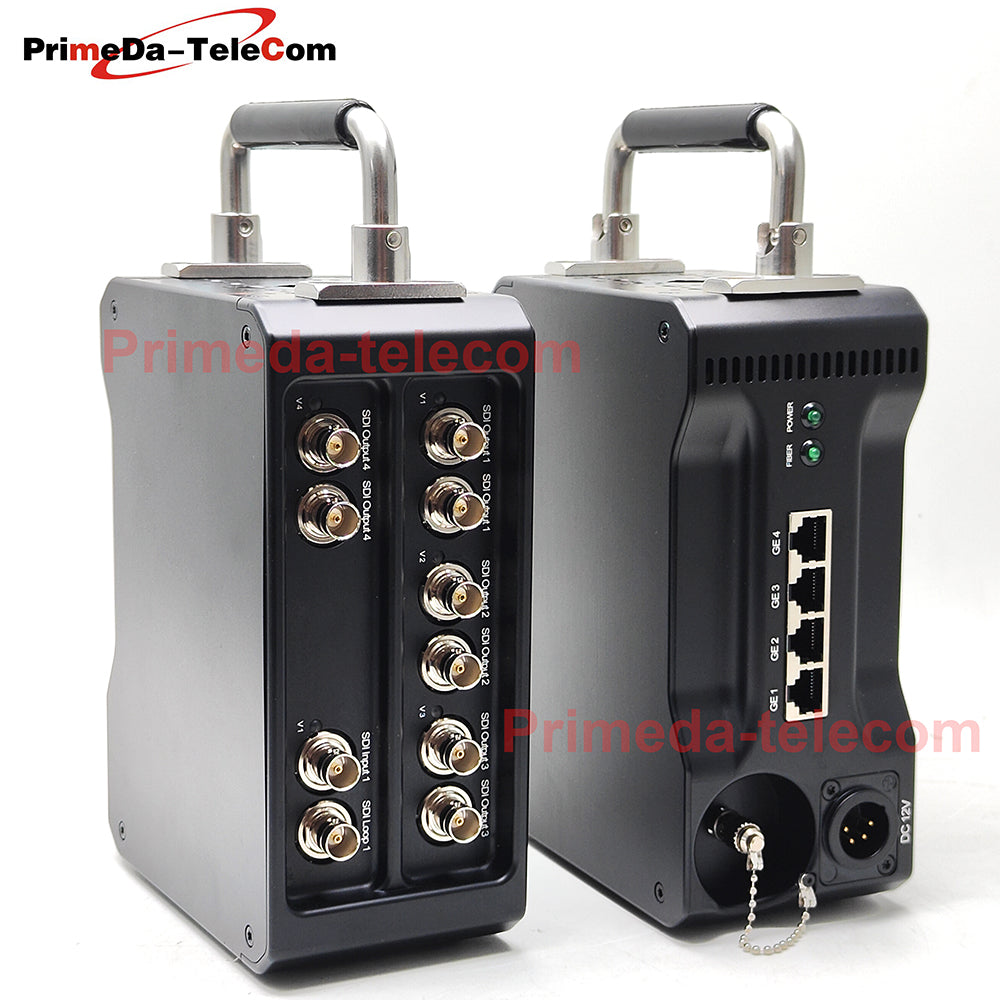

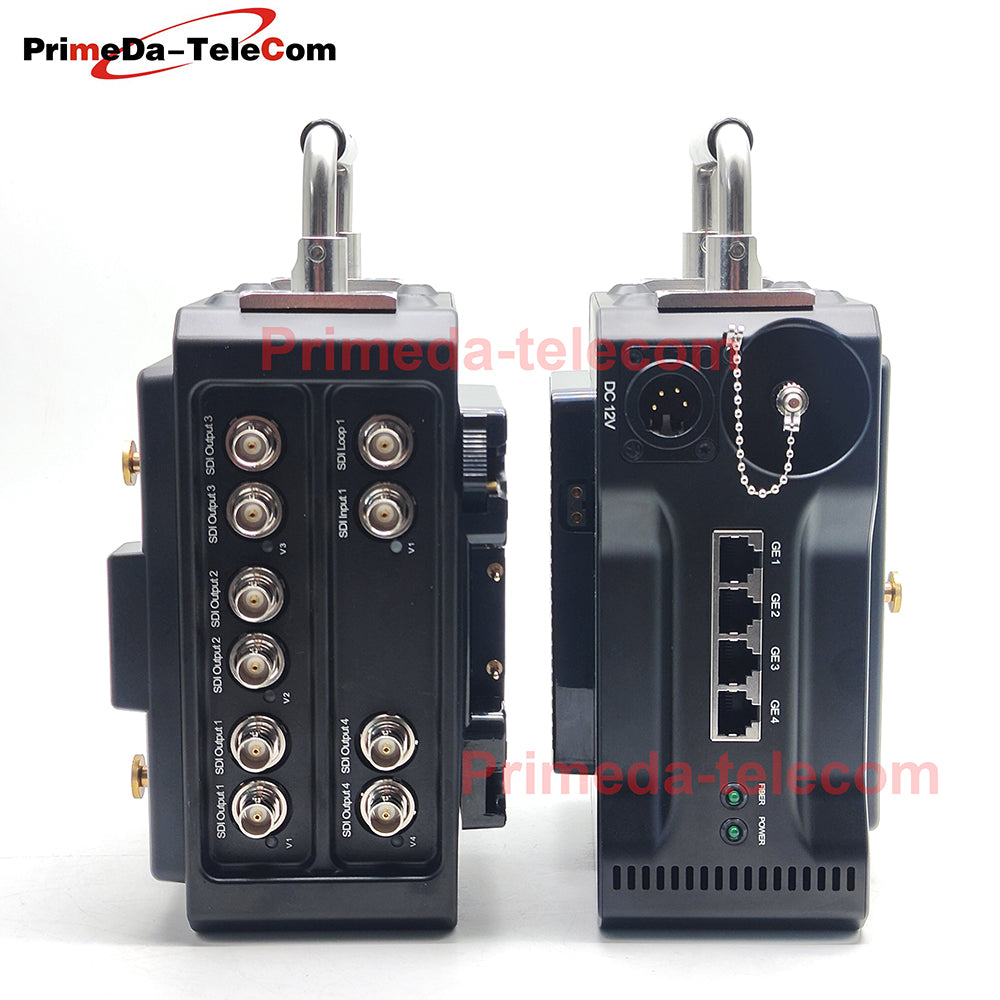

This multi-functional 12G-SDI/Gig Ethernet fiber Extender can extend bidirectional uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable. 4x12G-SDI is transmitted from T (TX) in the direction of R (RX), other 1x12G-SDI signal is transmitted in reverse direction. It also can extend 4 shared Gigabit Ethernet (RJ45 Port)  over a fiber optic cable to far distance synchronously.Extension range up to 10Km by singlemode fiber. Uncompressed real-time audio and video transmission, Professional broadcast level high quality, No delay.

Feature:

This multifunctional 12G-SDI/ethernet fiber converter can extend bidirectional uncompressed 12G/6G/3G/HD-SDI video over fiber optic cable. 4x12G-SDI is transmitted from T (TX) in the direction of R (RX), other 1x12G-SDI signal is transmitted in reverse direction. Single-Mode single Fiber or dual fiber transmission distances up to 10Km(6.2miles).

The 12G-SDI ultra high definition audio and video optical transceiver is equipped with serial clock recovery(Supports pathological code, very professional ,much better than ordinary one at marketing). The input automatically detects signals 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;

Support  4  shared 100/1000Mbps Gigabit Ethernet, the network signal can be through same fiber optic from Transmitter side to Receiver side. it can extend network signal, like PC and IP camera with RJ45 connector. Please take note: the SDI signal can’t be extended by Network port (Cat5e cable).

Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD); Compatible with DVB-ASI and AES10 (MADI);

The input automatically detects signals 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;

Support single mode dual fiber transmission distance of 10KM (default).

Real-Time Video Transmission for Exceptional Quality and Resolution.

Plug and Play,No need to set up

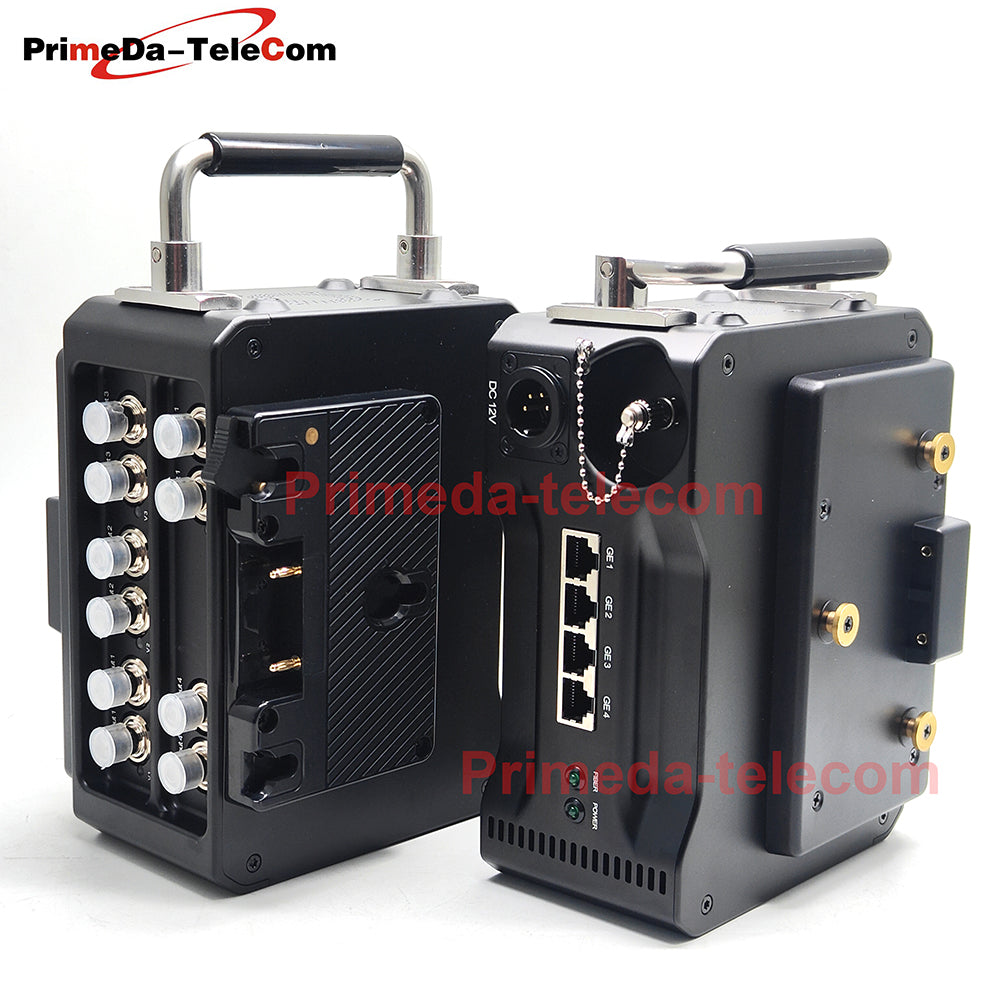

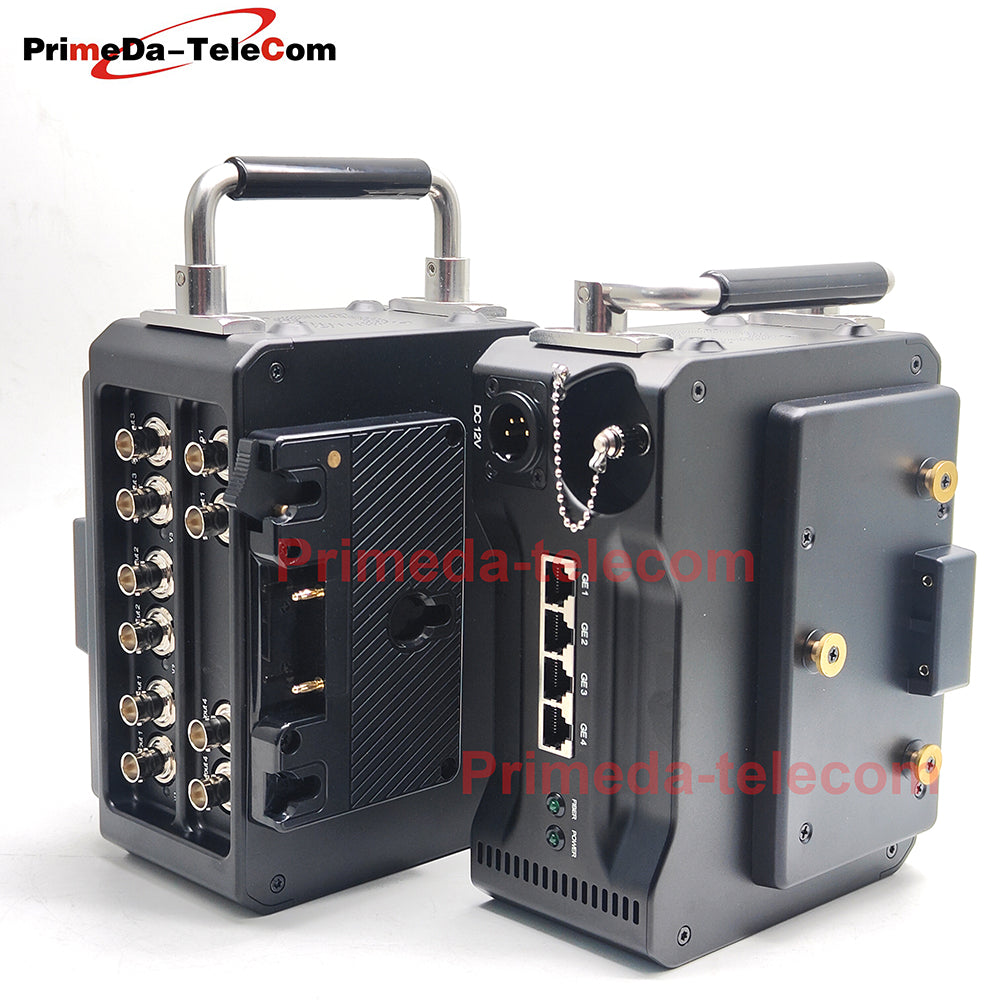

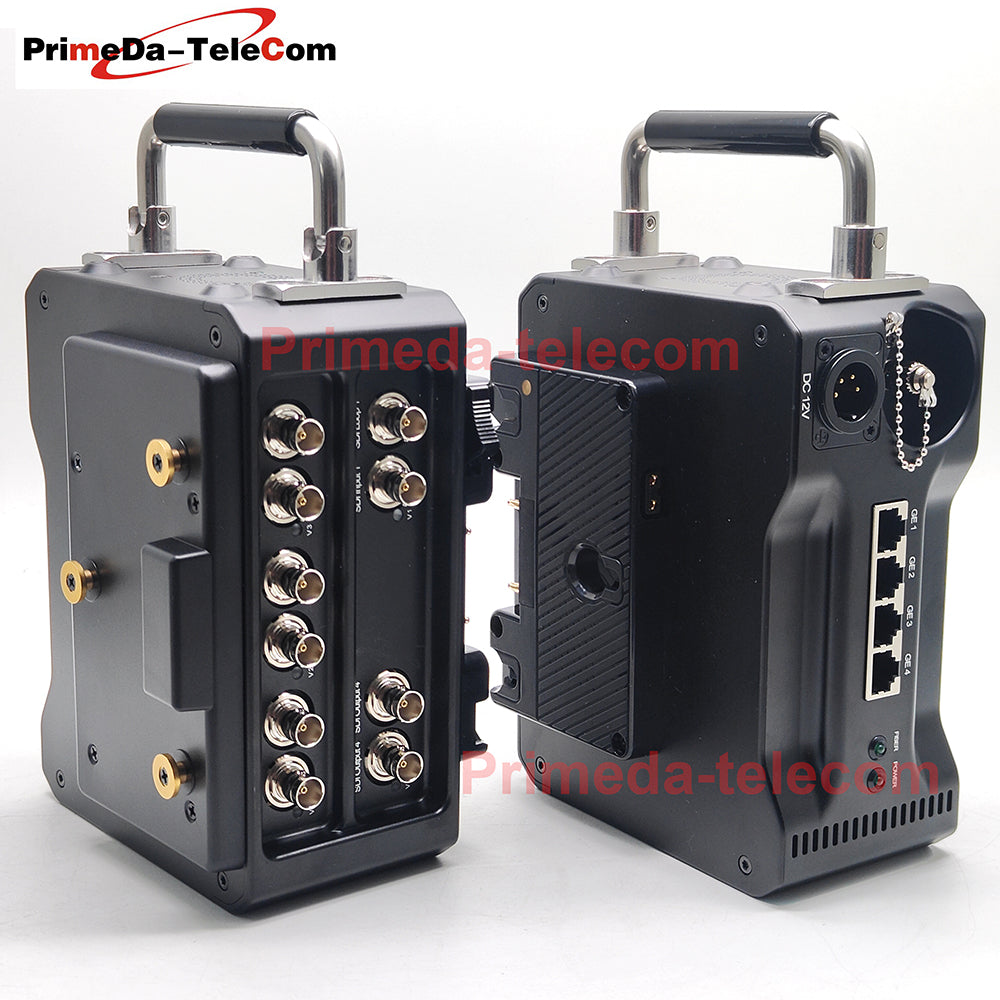

With Anton‑Bauer:

Without Anton‑Bauer:

Supports standard (digital video format) :

SMPIE 259M SD-SDI 480i, 576i

SMPIE 344M ED-SDI 480P, 576P

SMPIE 292M HD-SDI 720P, 1080i

SMPIE 424M 3G-SDI 1080P60Hz

SMPIE ST-2081 6G-SDI 2160P30Hz

SMPIE ST-2082 12G-SDI 2160P60Hz

Application:

SMPTE compatible serial digital interface

UHDTV/4K/HDTV/SDTV Video

IP media gateway

Digital video processing and editing

Optical Interface: ST (LC/FC/SC is optional)

Electrical & Mechanical :

Power supply: 4 pin Canon DC12V

Environmental

1. Operating temperature: -20°C ~ +75°C

2. Storage temperature: -40°C ~ +85°C

3. Working humidity: 0% ~ 95% (non-condensing)

4. MTBF:>100,000 hours

Package Include:

12G-SDI Fiber Transmitter

12G-SDI Fiber Receiver

Cable 4 pin Canon DC12V

1x FREE 3M fiber patch cord

1 x User manual
