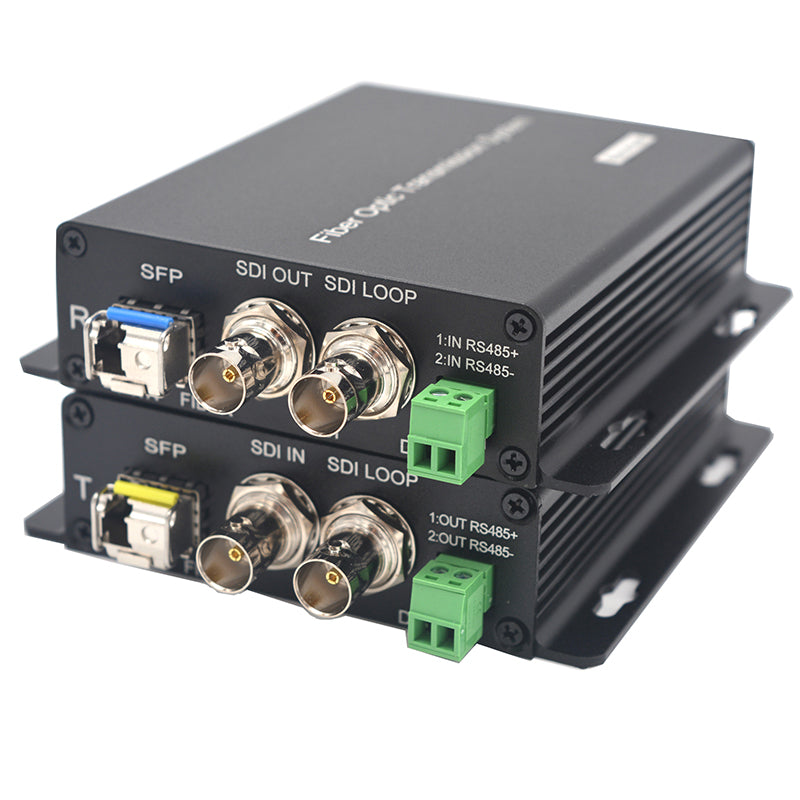

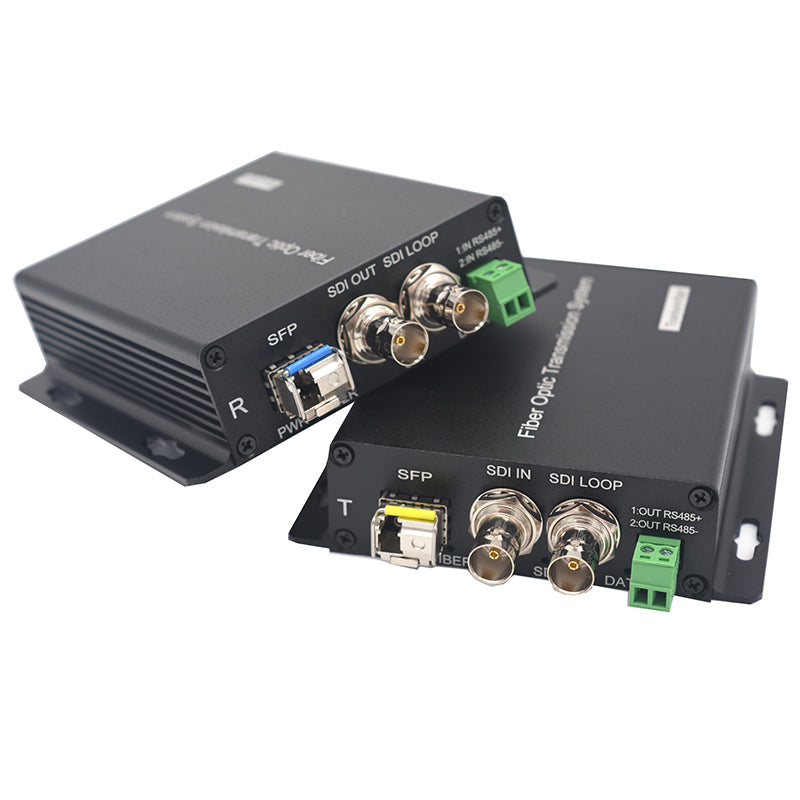

Professional 3G-SDI Fiber Optic Converter,Uncompressed, HD Video Audio RS485 over Fiber Extender,with two 3.125G SFP Module and Loop out Singlemode up 20Km, A Set

Feature: It can extend Uncompressed 3G/HD-SDI Video over a fiber optic to far end. Suitable for Universal...
Vendor: Primeda-telecom
SKU: PMD-3GSDI-1V1D-LC
Availability: In Stock
$198.00
$229.00
$198.00
Please hurry! Only 100 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $198.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

Professional 3G-SDI Fiber Optic Converter,Uncompressed, HD Video Audio RS485 over Fiber Extender,with two 3.125G SFP Module and Loop out Singlemode up 20Km, A Set

Professional 3G-SDI Fiber Optic Converter,Uncompressed, HD Video Audio RS485 over Fiber Extender,with two 3.125G SFP Module and Loop out Singlemode up 20Km, A Set

$229.00 $198.00

Professional 3G-SDI Fiber Optic Converter,Uncompressed, HD Video Audio RS485 over Fiber Extender,with two 3.125G SFP Module and Loop out Singlemode up 20Km, A Set

$229.00 $198.00

Feature:

  1. It can extend Uncompressed 3G/HD-SDI Video over a fiber optic to far end. Suitable for Universal Single-mode (SM) and multi-mode (MM). SM reach up to 12.4miles (20Km), MM up to 500m.
  2. Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz and backward compatible. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
  3. Broadcast High grade design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
  4. Support Video loop out function and one reverse direction RS485 data, Supports embedded digital audio stream.
  5. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
  6. Plug and play, No need to set up.

SDI Video:

  1. Physical Interface: BNC
  2. Max Resolution: 1920 x 1080 @ 60Hz
  3. Video Input and Output Impedance: 75Ω (unbalanced).
  4. Video Input/output Voltage:Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp 5. Video Bits Rate: Max 2.97Gb/s.
  5. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.



Optical Interface: LC



Electrical & Mechanical :

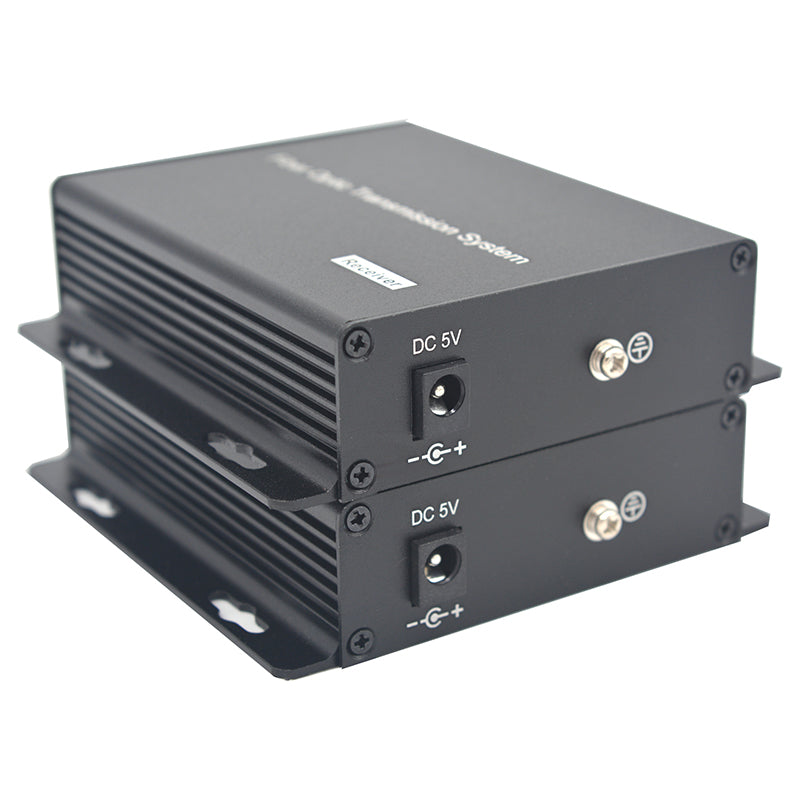

  1. Power supply: AC100-240V,DC5V2A. (US/EU/UK/AU plug is optional)
  2. Dimensions:104*108*28mm (LxWxH).
  3. Product weight (including the outer packaging):0.8Kg/Set.



Data:

  1. Physical Interface: standard industry block terminal.
  2. Interface signal: RS485 reverse direction.
  3. Baud Rate:0-400Kbps.
  4. BER <10 -9.
  5. Operation Mode: Full duplex / half duplex.



Environmental

  1. Operating temperature: -20°C ~ +75°C
  2. Storage temperature: -40°C ~ +85°C
  3. Working humidity: 0% ~ 95% (non-condensing)
  4. MTBF:>100,000 hours

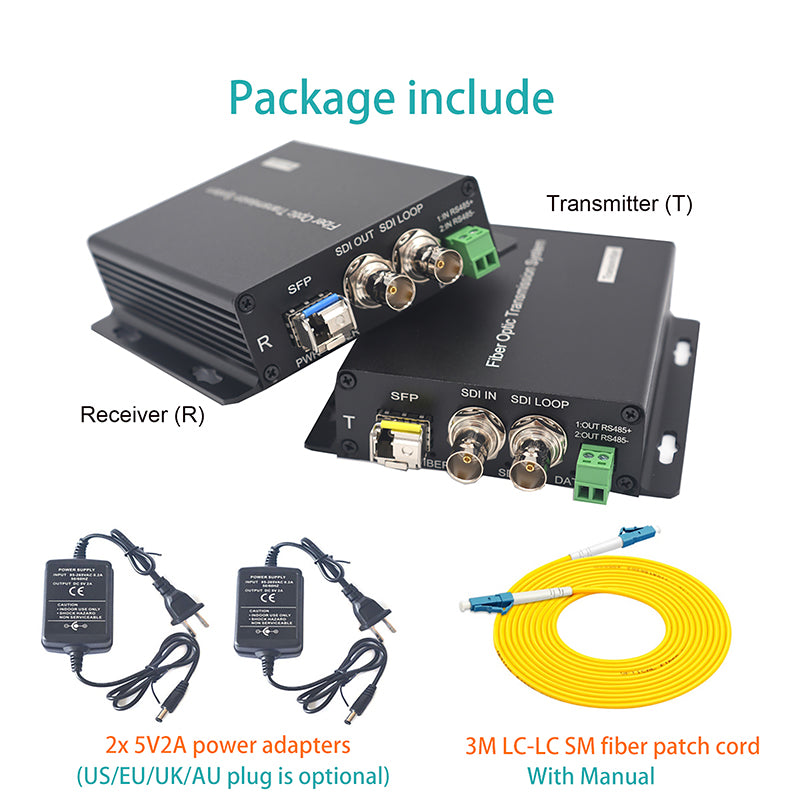

Package Include:

1 x 3G-SDI Transmitter

1 x 3G-SDI Receiver

2x Power supply adapters

1 x FREE 3M LC-LC S/M fiber patch cord

1x User Manual
