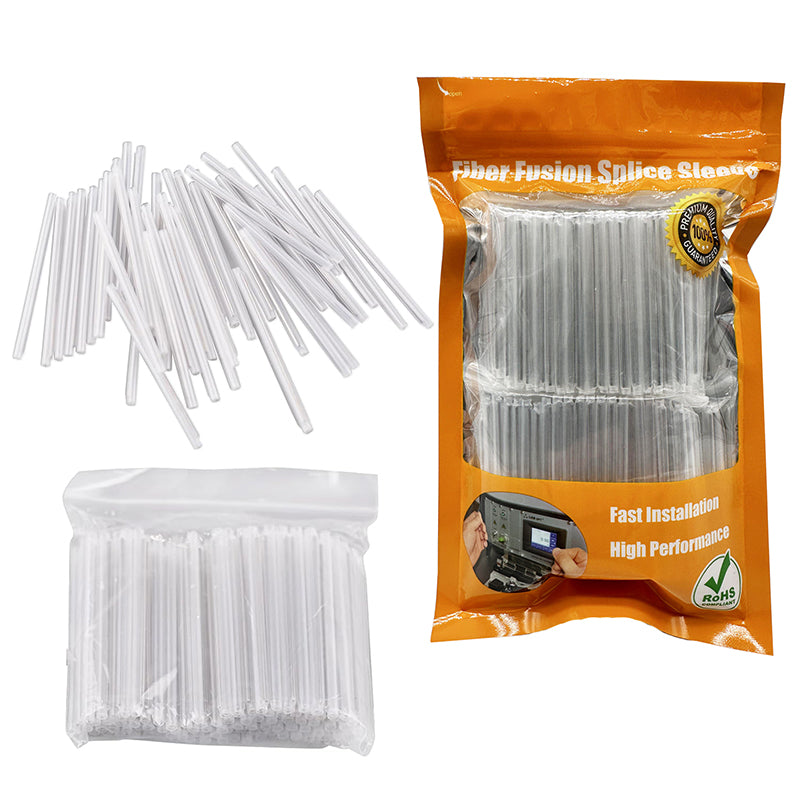

Premium Fiber Optic Fusion Splice Protection Sleeves, Heat shrink tube Clear 400pcs

Feature:

The sleeves are applied in nearly all branches optic fibers engineering. They are used to secure connections in fiber optic splice closures as well as 19" rack fiber optical distribution panels, stand and wall box.

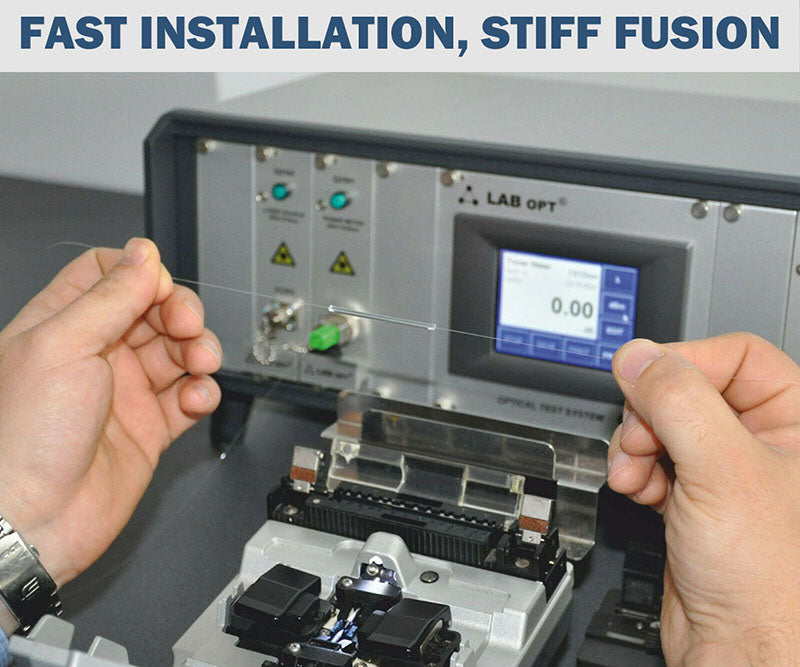

Stiffness of connection and quickness of assembly (below 60s) are the main advantages of this solution.

The Pin that stiffens the splice is made from high grade 304 stainless steel and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. the internal tube and Pin no falling out.

Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. No rupturing.

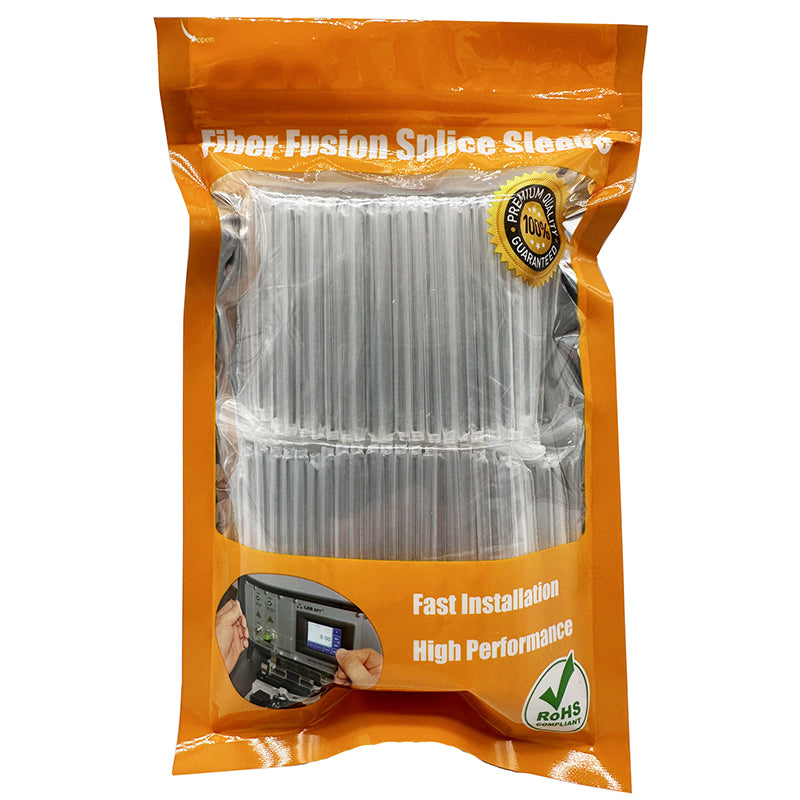

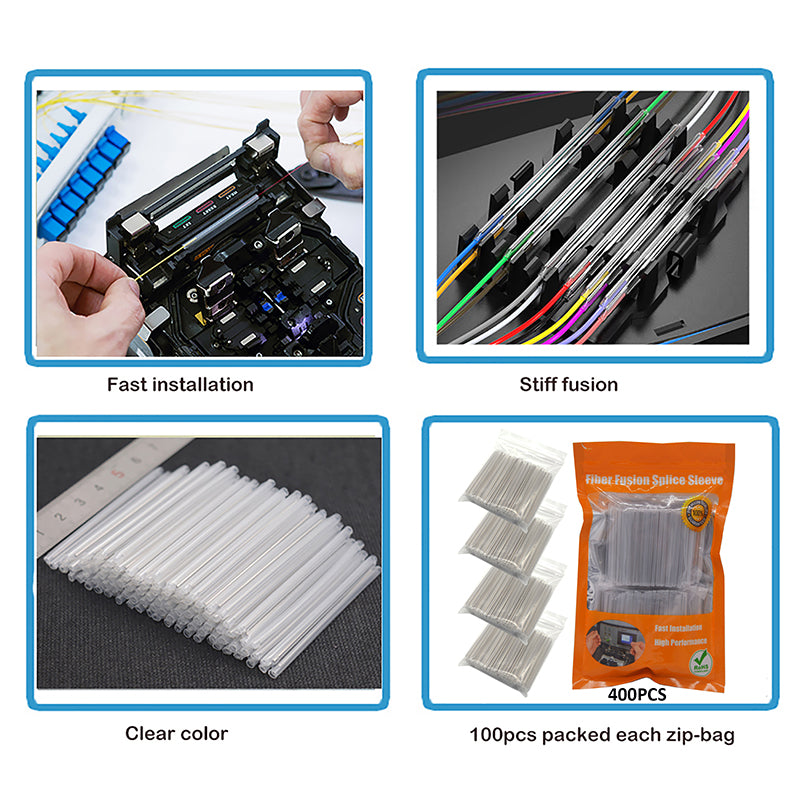

Packing: 100pcs packed to one zip-bag

Description:

GT series sleeves are applied in nearly all branches optic fibers engineering. They are used to secure connections in fiber optic splice closures as well as 19" rack fiber optical distribution panels, stand and wall box. Stiffness of connection and quickness of assembly are the main advantages of this solution. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices, stiffness of connection and short assembly time. Initial shrinking of the shield was taken into account during the production process to reduce the gap between the shields. This protects the internal tube and Pin from falling out as well as facilitates entering the optical fiber to hole. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.

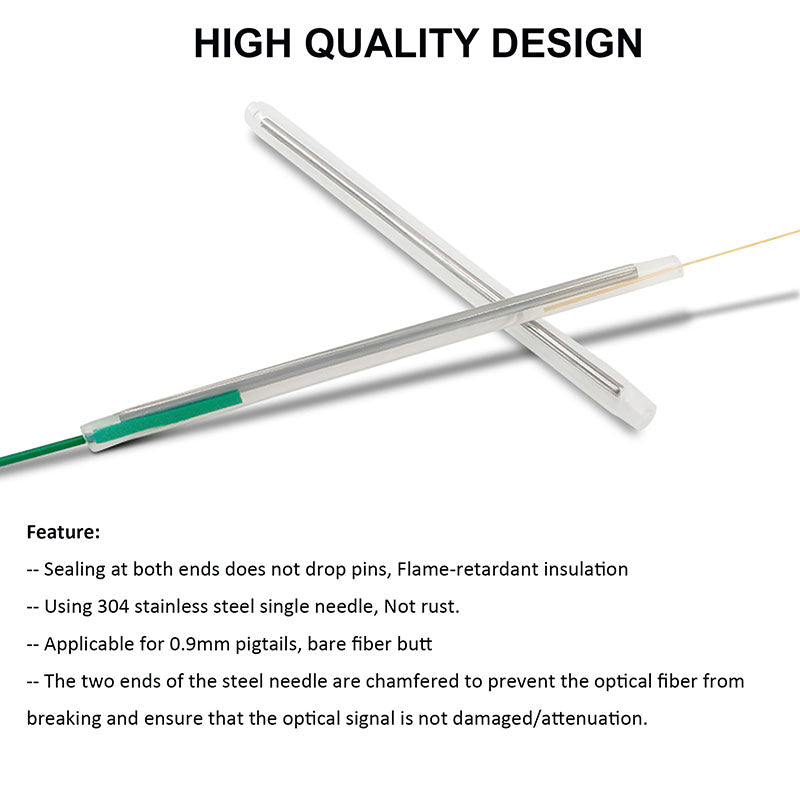

GT-XXB series is characterized by stiffness of fusion, relatively small external diameter (D=2.4mm/2.5mm after shrinking), reduced length, quickness of assembly (below 60s). The sleeve consists of a 1.0mm/1.2mm/1.5mm diameter PIN, a thin external tube and an internal tube with a 1.2mm hole. Such a solution enables using those sleeves to protect fibers with a 250um cover and a 900 um buffer. The internal tube is made from special material with good adhesion to many materials and low solubility in water. It changes its consistency to semi-liquid in growth temperatures. It enables to eliminate air bubbles through filling up the spaces between external tube, the Pin and fiber optic cable. The Pin that stiffens the splice is made from steel with heat extensibility indicator identical to that of optic fiber. This prevents from longitudinal stresses on the splice during heating process. Longitudinal stresses of the splice influence on growth an insert loss and a reflection loss. In extreme cases they may cause breaking the connection, which makes it necessary to repeat the splice procedure. External tube material guarantees sustainability and resistance to stretching and puncture. It offers optimal air permeability, high gloss and smooth surface. It fulfills the requirements of UL224 and MIL-I-23053 standards.

The standard sleeves are made in clear color. Other color available on request.

Specifications

1.Minimum installation(shrinking) temperature: 110°C

2.Max installation time: 60 seconds

3.Standard color: Clear

4. Low Temperature property: No crackle at -55°C  lasting 4 hours

5. RoHS compliant

6.Packing: 100pcs per individual zipped bag

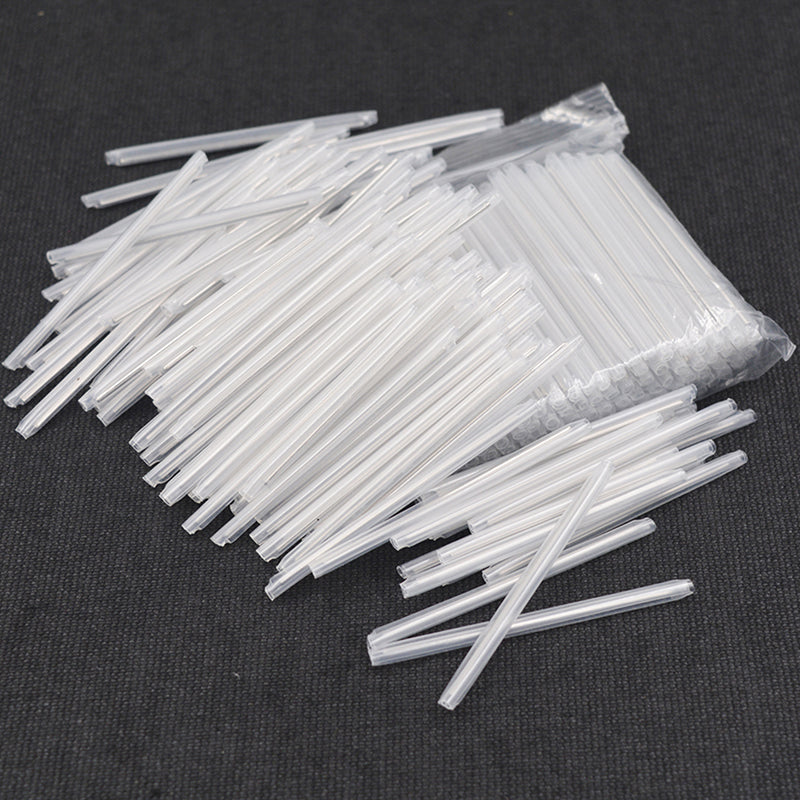

Package: 400pcs Fiber splice sleeves
