Mirco OD1.4mm Fiber optic Fusion Splice Protection Sleeves 40mm 35mm 30mm 25mm Clear for Single fiber 250um -400pcs

Feature: Application Type: Single Fiber 250µm .Recovered Dia.1.4+/-0.1mm, Optional length: 45/40/35/30/25/15mm Clear sleeve make it easy to...
Vendor: Primeda-telecom
SKU: PMD-45D
Availability: In Stock
Product Type: Fiber splice sleeves
$19.90
$26.00
$19.90
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
尺寸: OD1.4mm 45mm(L)
Subtotal: $19.90
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

Mirco OD1.4mm Fiber optic Fusion Splice Protection Sleeves 40mm 35mm 30mm 25mm Clear for Single fiber 250um -400pcs

Mirco OD1.4mm Fiber optic Fusion Splice Protection Sleeves 40mm 35mm 30mm 25mm Clear for Single fiber 250um -400pcs

$26.00 $19.90

Mirco OD1.4mm Fiber optic Fusion Splice Protection Sleeves 40mm 35mm 30mm 25mm Clear for Single fiber 250um -400pcs

$26.00 $19.90
尺寸: OD1.4mm 45mm(L)

Feature:

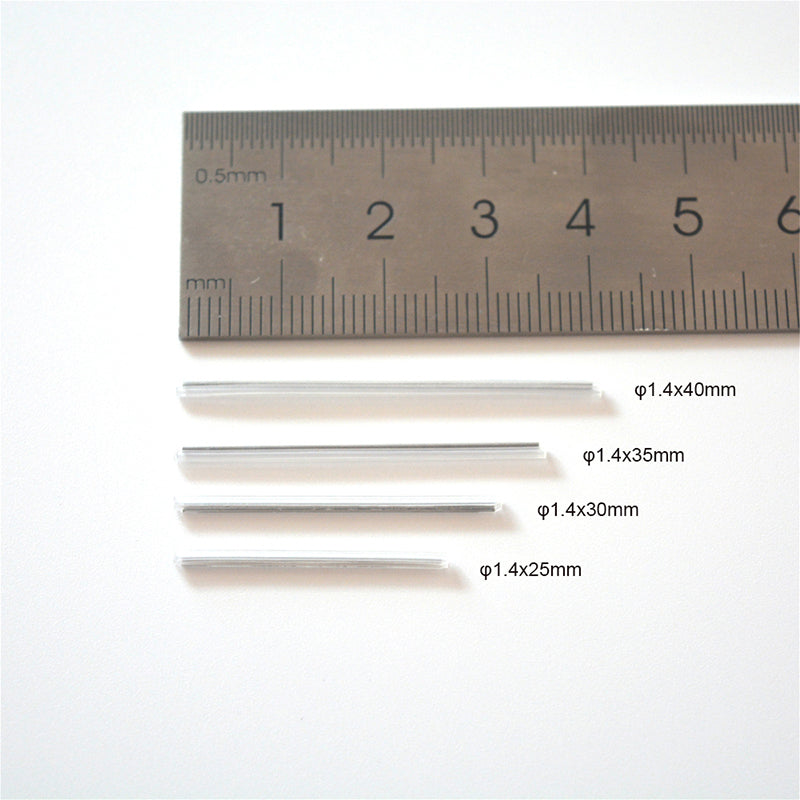

Application Type: Single Fiber 250µm .Recovered Dia.1.4+/-0.1mm, Optional length: 45/40/35/30/25/15mm

Clear sleeve make it easy to detect splice before shrinkage

Airproof structure keeping the splice point's good resistance of humidity and temperature

Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing

Easily use and avoid any damages to the optical fiber during installation

Overview:

The Micro Series are high quality, long-term reliability Fibre Optic Fusion Splice Protector Sleeves. Designed to restore the mechanical strength, environmental protection and optical performance of single optical fiber after fusion splicing.

The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.

We offer a good product in very good price on this auction the sleeve. Don't hesitate to order one pack, We guarantee, next time you order more.





Material Specifications

1. Application Type: Single Fiber 250µm

2. Compatibility: Most splice trays, ovens and coated fibers

3. Outer Material: Cross-linked Polyolefin Heat Shrinkable Tubing +135°C MIL Spec.

4. Inner Material: Hot-melt adhesive Ethylene Vinyl Acetate (EVA) Copolymer

5. Reinforcing Pin: Stainless Steel 304 with polished and rounded edges

6. Colours: Clear for easy visual inspection

7. Splice Operating Temperature: -40°C to +70°C (Heat shrink outer rated at -55°C to +135°C)

8. Storage Temperature: -40°C to +70°C

9. Package : 100pcs/bag (OD1.4x40mm and OD1.4x35mm),200pcs/bag (OD1.4x30mm and OD1.4x25mm).



Packing Contents

400pcs Mirco Fiber splice protection sleeve



Our factory, professional ,high effecient workshop.

Warranty Policy

In Primeda-telecom, All of our products usually enjoy one year limited warranty. Custom orders can not be returned when they function properly.

If any Primeda-telecom product fails due to a defect in materials or workmanship within limited warranty of original shipment, Primeda-telecom will, at its sole option, repair/replace the product or refund the original purchase price. To access this Limited Warranty, contact Primeda-telecom for a Return Material Authorization number and ship the product to us.

This Limited Warranty is given in line with all other warranties, express and/or implied and to the maximum extent permitted by law, Primeda-telecom disclaims all other warranties, expressed and/or implied, including the warranty of merchantability and fitness for any particular purpose. No employee of Primeda-telecom has the authority to verbally modify this Limited Warranty.

All else not withstanding, acceptance of products from Primeda-telecom, constitutes acceptance of this Limited Warranty.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

FAQ

Q1:What’s your main products?

Primeda-telecom dedicates to the developing, production, marketing of the Fiber Optic communication products, like Video/Audio/Ethernet/Tel/Contact closure over Fiber Exender, FPV optical modules,Fiber cable/connectors/accessories and so on.

Q2.: May I buy samples from you?

You are welcome to place sample order to test our superior quality and services.

Q3.: Can you put my brand name (logo) on these products?

Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4.: How can I get the quotation quickly?

To send your inquiry with detailed requirements to our sales email box or call us. Our sales representative will get back to in 12 hours.

Q5: What’s your best price? Can I negotiate the price?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

Q6.: May I know the status of my order?

Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: Can you provide OEM/ODM service?

Yes, we can. Please give us your requirements, our engineer will make the technical datasheet for your further confirm.

Q8. Do you have distributor in other country?

Until now, we sell our products to customers directly. And factory price could be offered.
