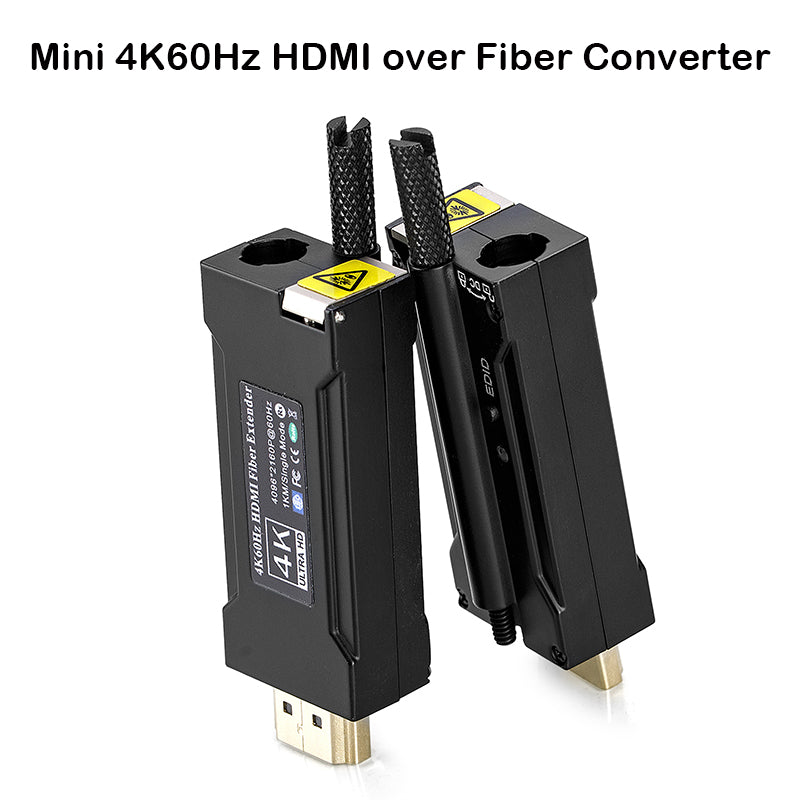

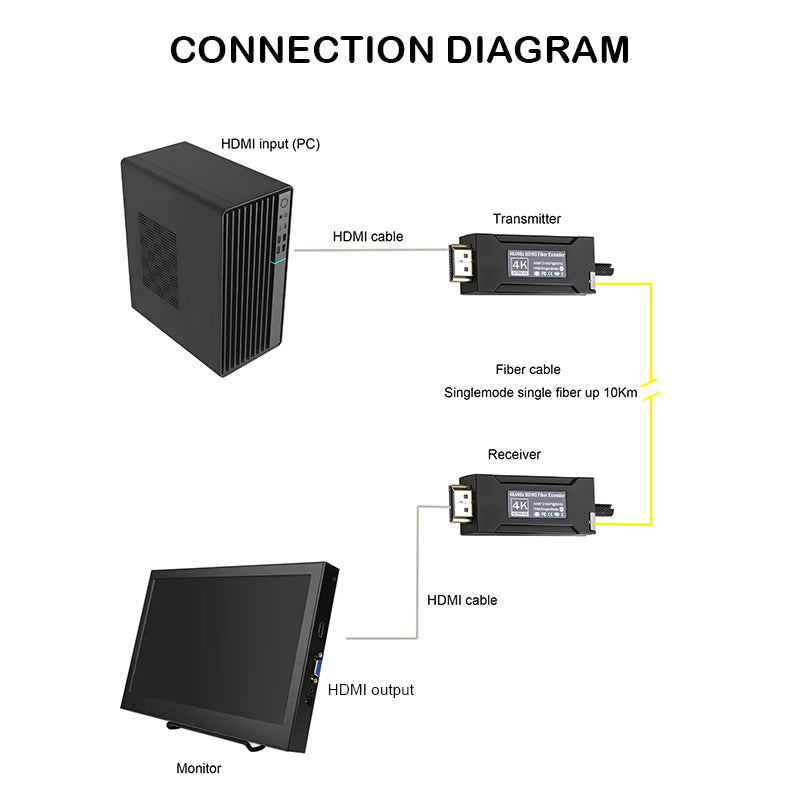

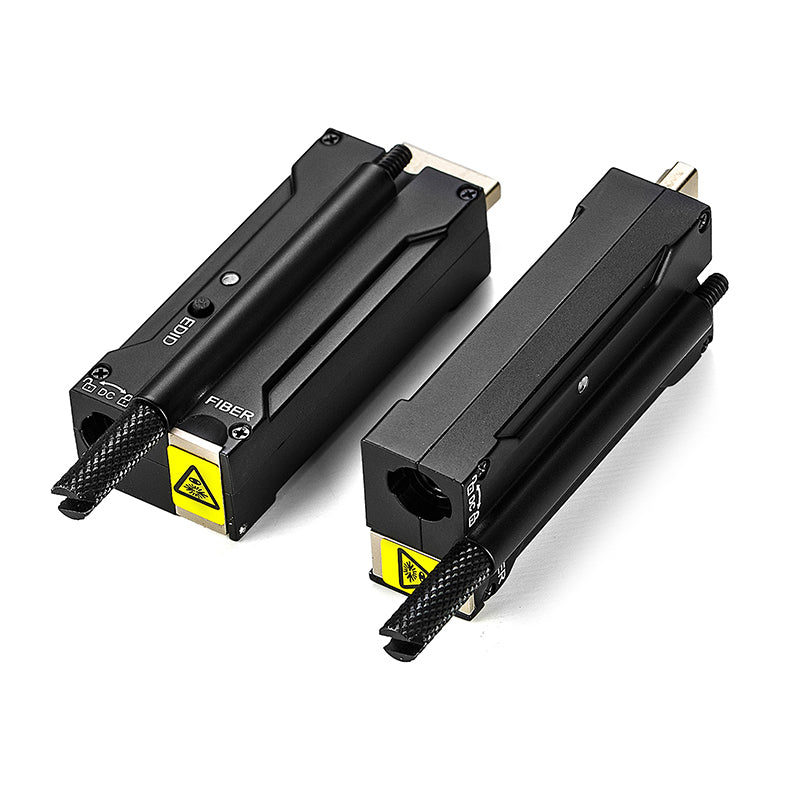

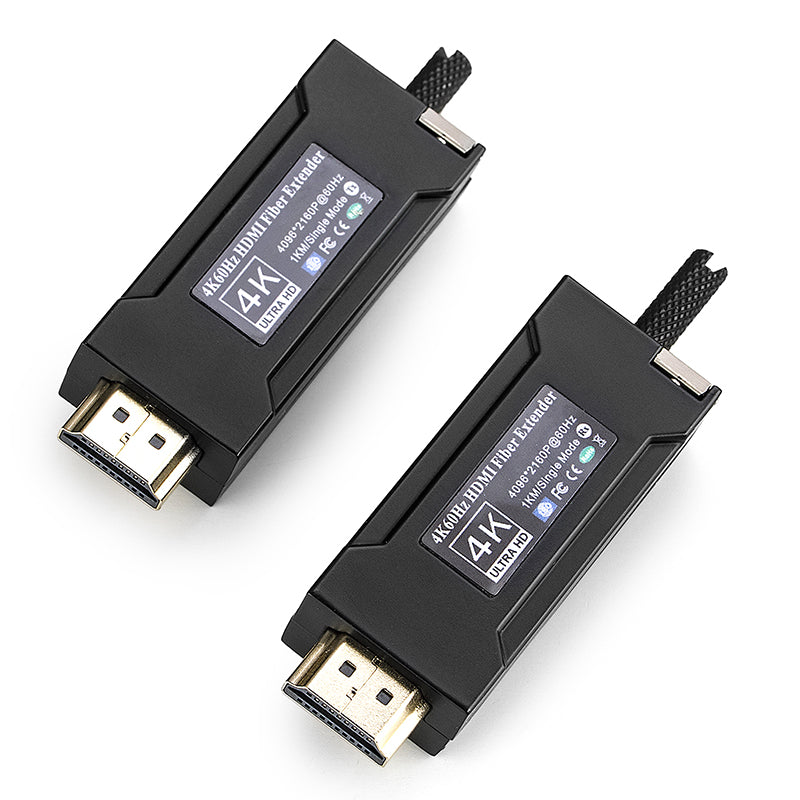

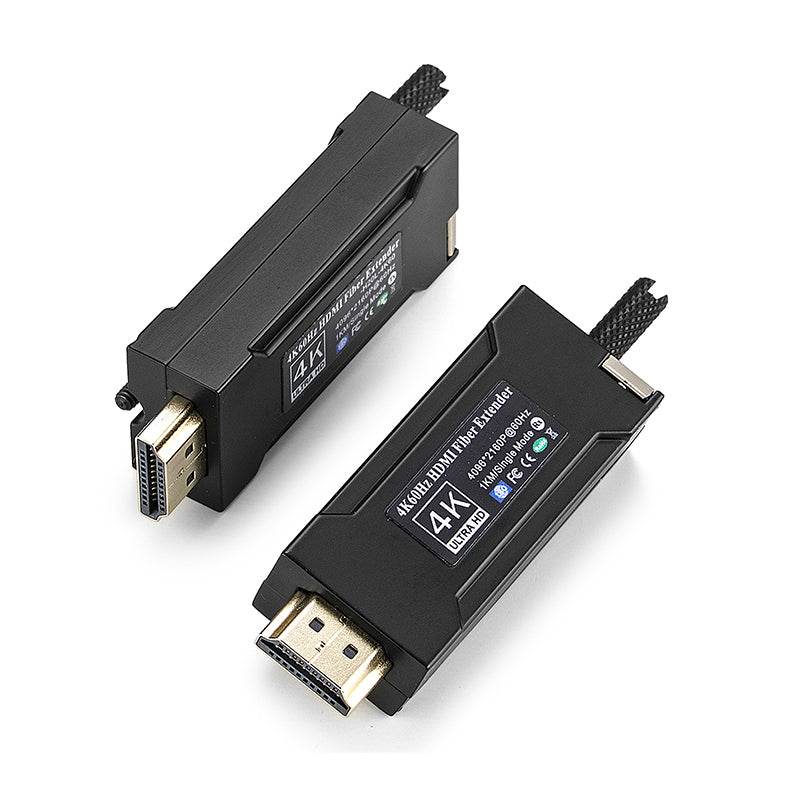

Mini 4K@60Hz HDMI over Fiber Converter, LC Singlemode Single Fiber Up 1Km,EDID,with Lock Uncompressed No Loss High Speed 10Gbps ,A pair

5.Radio and television and video recording;

6.Video conferencing;

7.Information release and display system;

8.Command and dispatch center;

Ordering Information

Features

1.Support downward compatibility of 4Kx2K@60Hz resolution;

2.Built-in EDID mode and EDID manual learning mode,support button mode switching;

3.Support EDID memory storage function after power off;

4.Support unilateral power supply technology and can be powered from the signal source HDMI port;

5.Support dust prevention of fiber optic interfaces and have anti detachment design to prevent the loss of dust covers;

6.Support the power socket with lock to prevent the equipment from falling off during operation;

7.Support portable installation of rear long screws;

8.Support single fiber transmission of 1km by single-mode .

9.Support status light display;

10.Plug and play,without debugging;

Specifications

Product Size (Unit : mm)

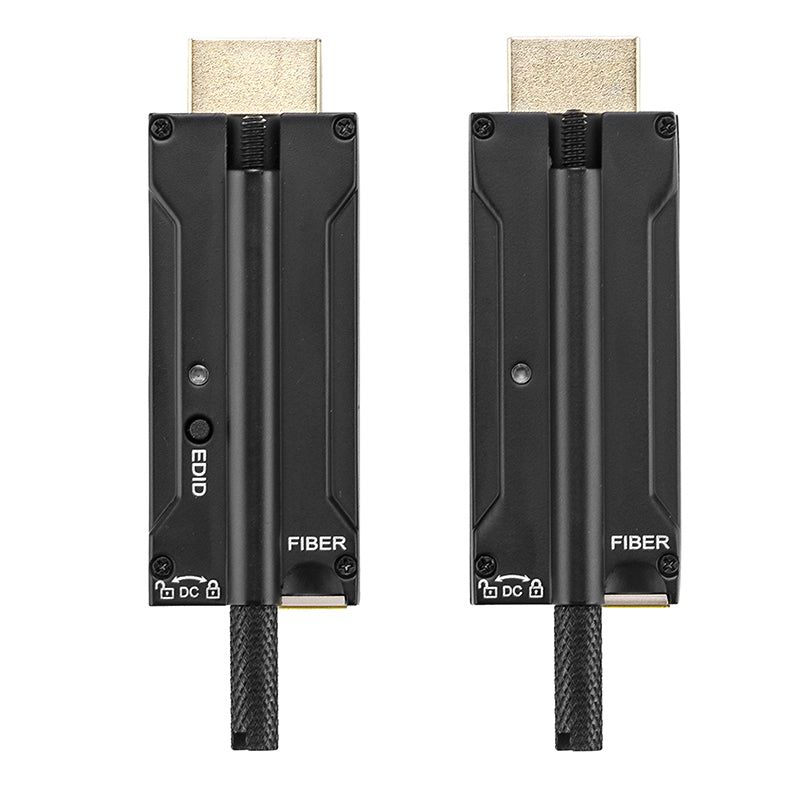

Note: Only Transmitter with EDID manual learning button switching

Operation

1.It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal,and then do long-distance transmission;

2.Mini HDMI fiber optic converter can be powered from the signal source HDMI port, but it’s to ensure the stability of the system, it is recommended to use a power adapter for operation;

3.The color space is 4:2:0 when transmitting 4K@60Hz video signal; the color space support RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 when transmitting 4K@30Hz and backward compatibility video signal;  Note:  this unit's color space can only reach 4:2:0 (10.2Gbps), can not reach up to 4:4:4 (18Gbps).

4.The EDID key is a switch between the device's built-in EDID and manual learning of EDID;

EDID mode switching operation instructions

LED Status Description

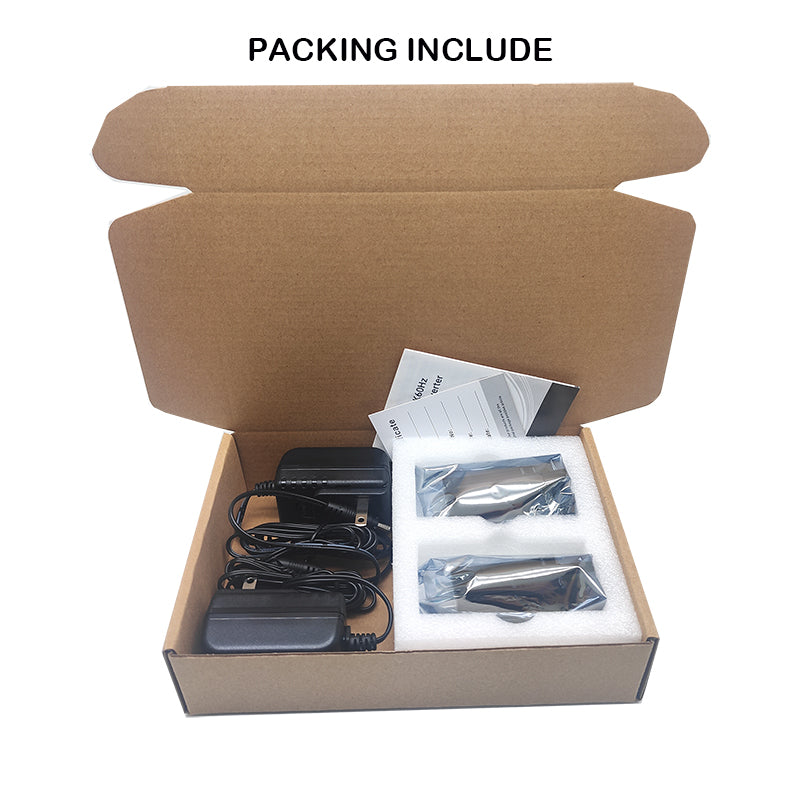

Packing list

Attention

Lightning protection,static electricity and grounding:

It is recommended that when install the device,consideration should be given to the impact of grounding by lightning,and take prevention measures.Strong static electricity will damage the optical device and data chip in the equipment.It is recommended that when plug/unplug the data port of the optical converter,please disconnect the power supply of the optical converter first.Equipment housing is not waterproof,equipment installation box should be fully considered waterproof.

Fiber and optical components:

Be careful when plugging the optical fiber as optical components of the optical converter is very fragile,and it should avoid causing damage to the optical components.It should be noted that the light source produced by the optical components of the optical converter will be harmful to eyes,so do not have direct eye contact with the optical components of optical converter.If you need to detect the optical power of the optical converter,please use the optical power meter.

Equipment and installation procedures:

(1)Optical fiber installation:please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

(2)Equipment installation:The equipment can be distinguished between transmitter and receiver,and it is stated clearly on the label and printed on the chassis of the equipment.
