Mini 3G-SDI Video over Fiber Optic Converters,LC Singlemode up 20Km with 2 SFP Optical Module for 3G-SDI,HD-SDI Camera

Feature: Extends uncompressed 3G-SDI, HD-SDI or SD-SDI HD video over a single fiber optic. Suitable for universal...
Vendor: Primeda-telecom
SKU: PMD-3GSDI-M-LC
Availability: In Stock
Product Type: SDI fiber converters
$179.00
$249.00
$179.00
Please hurry! Only 93 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $179.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

Mini 3G-SDI Video over Fiber Optic Converters,LC Singlemode up 20Km with 2 SFP Optical Module for 3G-SDI,HD-SDI Camera

Mini 3G-SDI Video over Fiber Optic Converters,LC Singlemode up 20Km with 2 SFP Optical Module for 3G-SDI,HD-SDI Camera

$249.00 $179.00

Mini 3G-SDI Video over Fiber Optic Converters,LC Singlemode up 20Km with 2 SFP Optical Module for 3G-SDI,HD-SDI Camera

$249.00 $179.00

Feature:

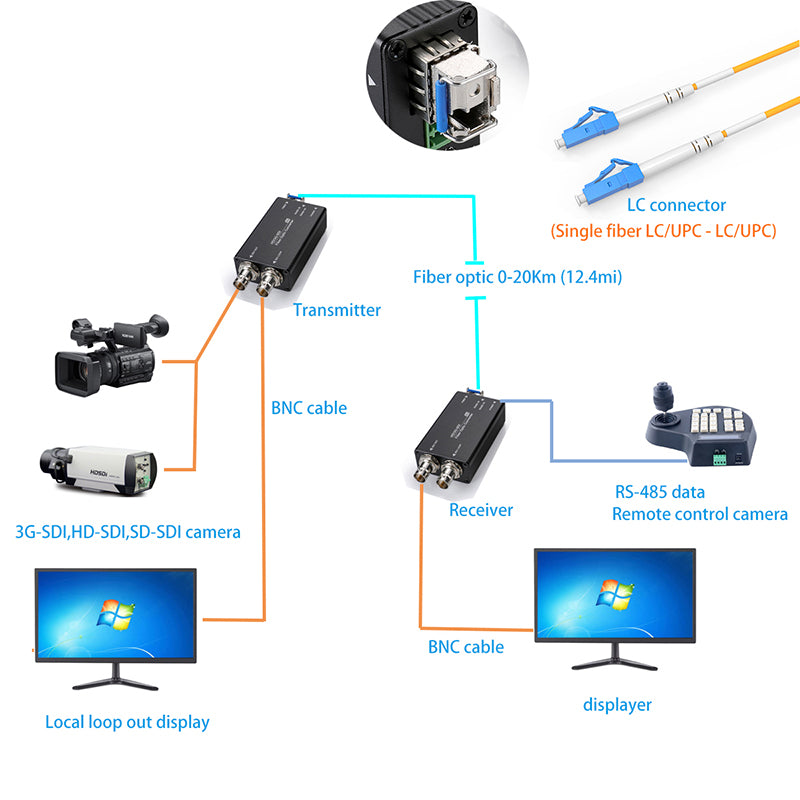

  1. Extends uncompressed 3G-SDI, HD-SDI or SD-SDI HD video over a single fiber optic. Suitable for universal Single-mode and multi-mode fiber cable, single-mode up to 20KM, Multi-mode up to 500M. with RS-485 data (reverse direction) which can control PTZ.
  2. Support video resolution 1920x1080@60Hz max, backward compatible.1080P@ 30,25,24Hz and 1080I@60,50Hz. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant.
  3. Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz, backward compatible. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
  4. Broadcast High grade & Compact design. with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
  5. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.

Specifications:

  1. Optical wavelength:1310nm-1550nm
  2. Fiber Type: Single mode, Single fiber(default)
  3. Working distance 0~20km
  4. Fiber connector: LC.


SDI Video:

  1. Physical Interface: BNC
  2. Resolution: up to 1920 x 1080 @ 60Hz
  3. Video Input and Output Impedance: 75Ω (unbalanced)
  4. Video Input/output Voltage:Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
  5. Video Bits Rate: Max 2.97Gb/s
  6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI


Electrical & Mechanical:

  1. Input Power Requirements: DC 5V
  2. Power consumption <1.5W
  3. Power physical interface micro-USB

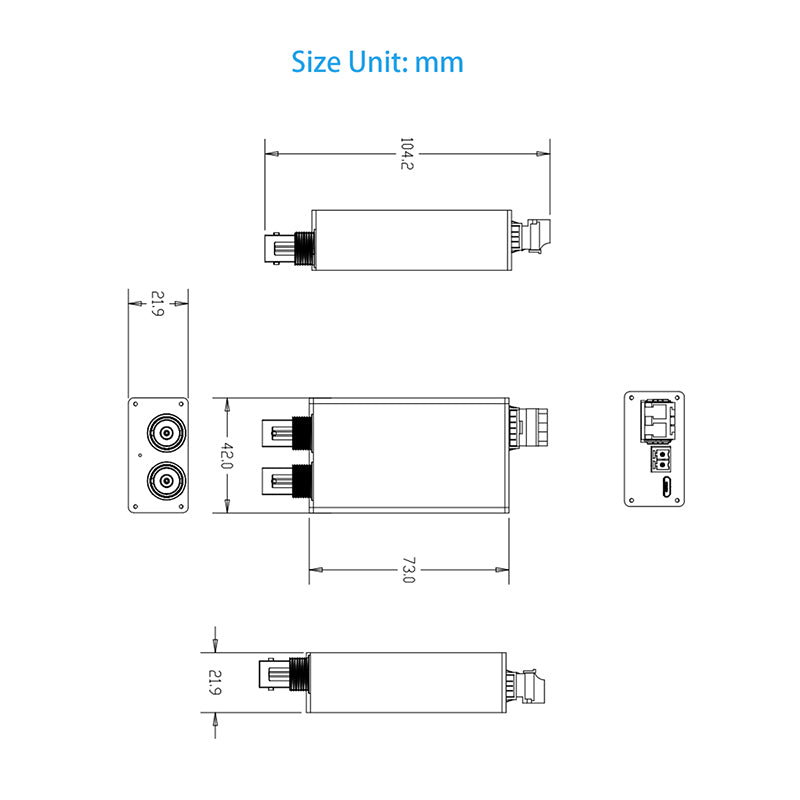

  4. Dimensions:73*42*21.9mm (LxWxH).


Data

  1. Physical Interface: standard industry block terminal
  2. Interface signal: RS485 reverse direction, PTZ control
  3. Baud Rate:0-400Kbps
  4. BER <10 -9
  5. Operation Mode: Full duplex / half duplex



Environmental

  1. Operating temperature: -20°C ~ +75°C
  2. Storage temperature: -40°C ~ +85°C
  3. Working humidity: 0% ~ 95% (non-condensing)
  4. MTBF:>100,000 hours

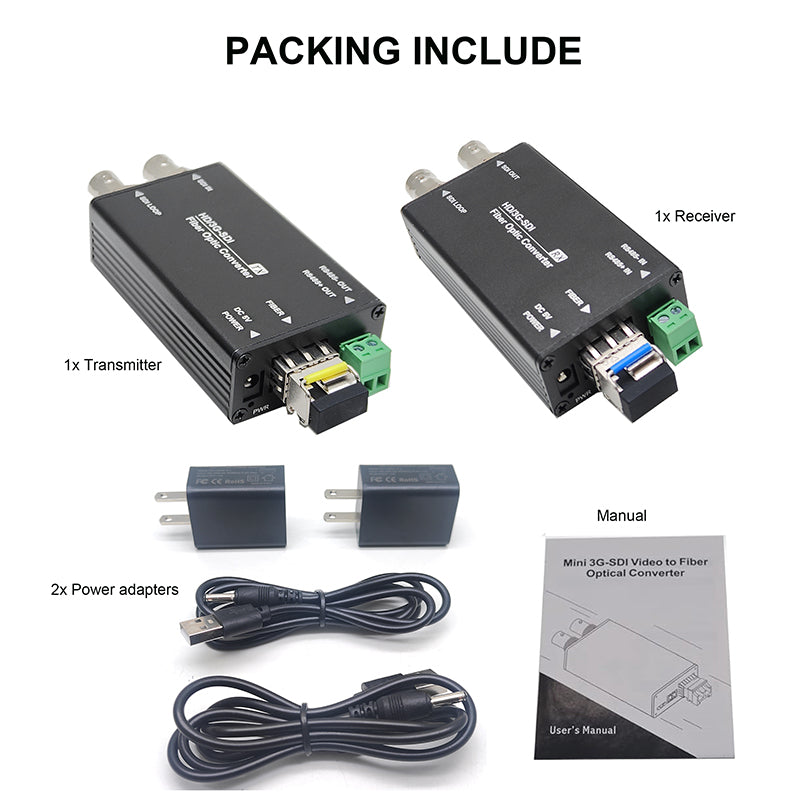

Package Include:

  • 1 x 3G-SDI Transmitter
  • 1 x 3G-SDI Receiver
  • 2x 3G SFP module
  • 2x Power supply adapter  (US/EU/UK/AU is optional)
  • 1x User Manual
