Mini 12G/3G-SDI Video to Fiber Optic Converters Kit, with RS485 data or Tally optional, 12G SFP Transceivers include, Singlemode up 10Km,Compatible 6G-SDI,3G-SDI,HD-SDI For UHDTV 4K 8K HDTV Video
Optional:1. 12G-SDI with local loop out and 1 channel reverse RS485 data. 2. 12G-SDI with local loop out...
Vendor:
Primeda-telecom
SKU:
PMD-12GSDI-SFP-RS485
Availability:
In Stock
Product Type:
SDI fiber converters
- $469.00
$560.00- $469.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Fast Shipping
Estimated standard delivery time 7-12 days. Express 5-7 days
Free Returns
Learn More.
Built And Shipped Within 1-3 Days
Optional:

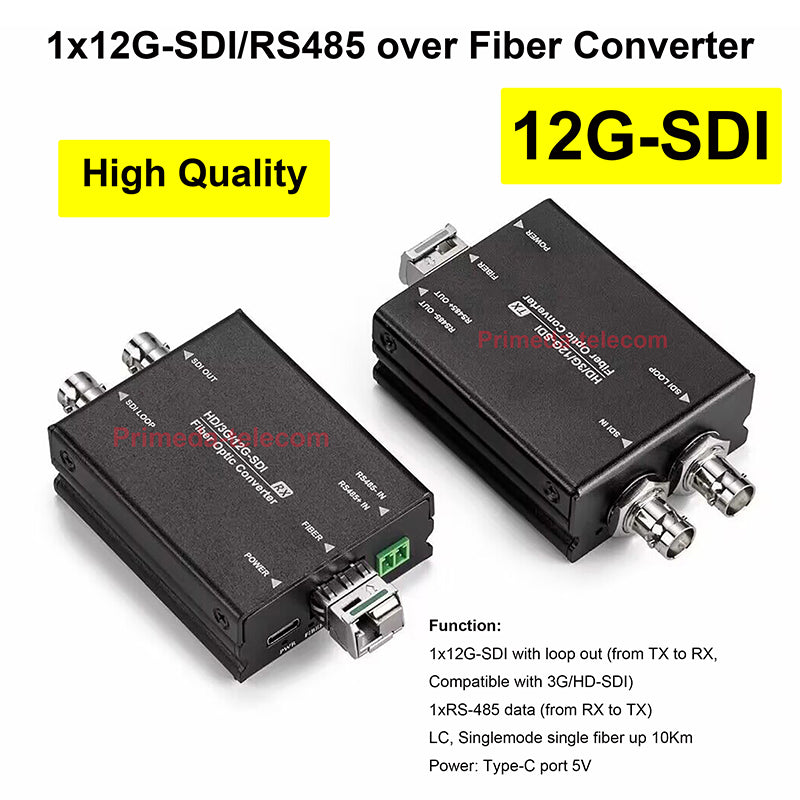

1. 12G-SDI with local loop out and 1 channel reverse RS485 data.

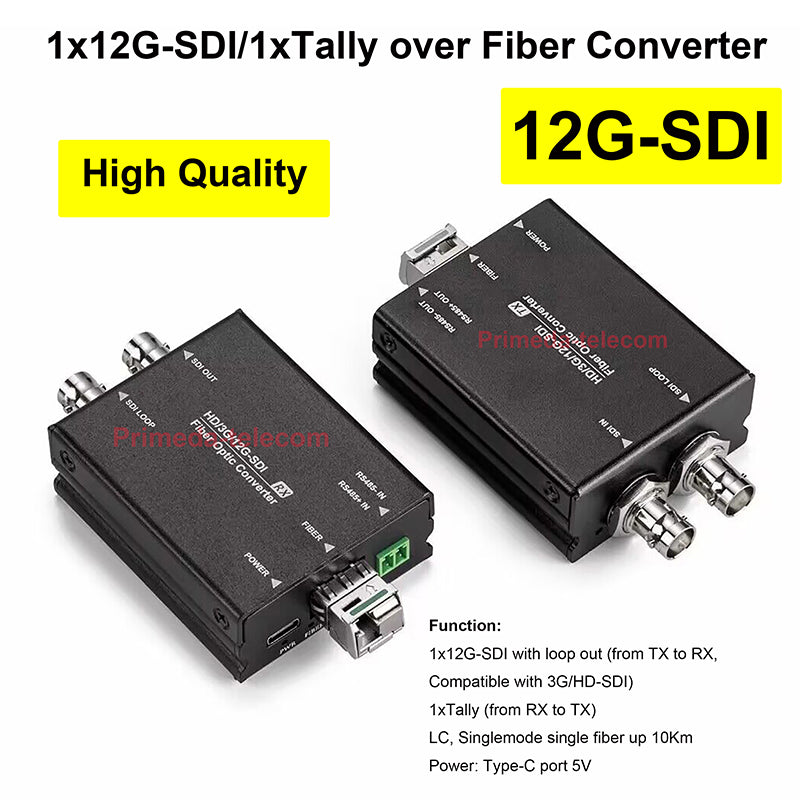

2. 12G-SDI with local loop out and 1 channel reverse Tally.
Features

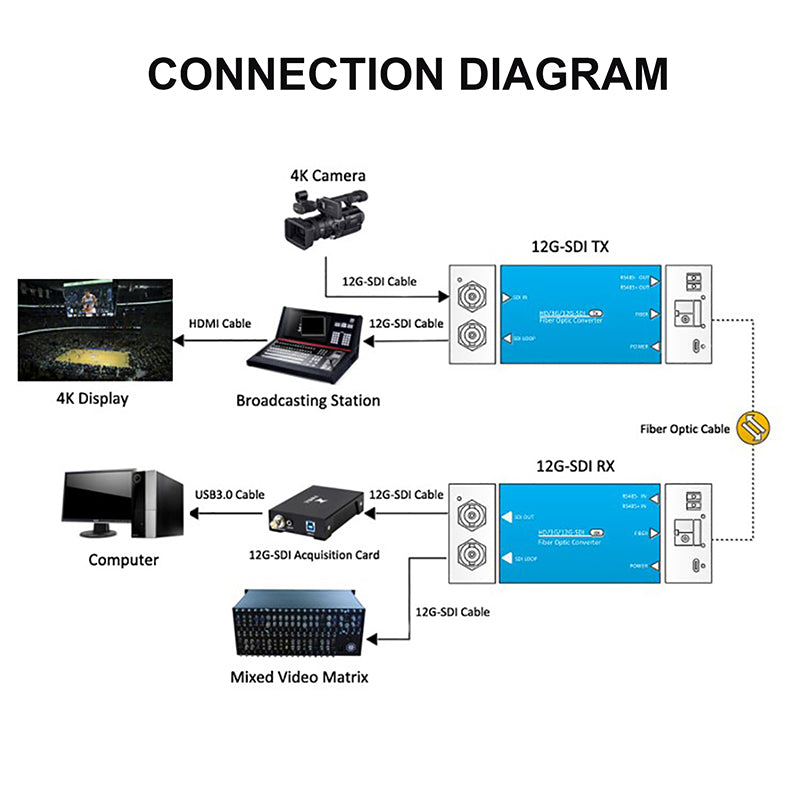

This sdi over fiber converter can extend 1 channel of uncompressed 12G-SDI video signal over a fiber optic cable to far end. 1x12G-SDI is transmitted from T (TX) in the direction of R (RX).Single-Mode single Fiber transmission distances up to 10Km(6.2miles).
The input automatically detects signals 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/SDI/ASI, which complies with the SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, and SMPTE310M standards;
Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI).
It can be with RS485 reverse direction data or with 1x Tally reverse directional, both is optional ).
the equipment power consumption is less than 1.5W, the Type-C port is used for power supply, support USB power supply system, which is flexible in use.
Plug and play, No need to set up.
Application For
1.SMPTE compatible with serial digital interface
2.UHDTV / 4K / 8K / HDTV / SDTV video
3.IP media gateway
4.Digital video processing and editing
Technical Indexes
| Fiber index | |
| Wavelength | 1310nm(dual -fiber) 1270-1330nm (single fiber) |
| Fiber type | 9/125um single-mode |
| Rate | 12Gbps |
| Tx power | 0~-3dB |
| Rx sensitivity | -12dB |
| Fiber connector | LC |
| Transmission distance |
Multimode fiber, 550m Single-mode fiber, 10km |
| SDI index | |
| Protocol standard | SMPTE ST-2082 |
| SMPTE rate | 270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s,11.88Gbit/s |
|
Support standard (digital video format) |
SMPIE 259M SD-SDI 480i，576i |
| SMPIE 344M ED-SDI 480P, 576P | |
| SMPIE 292M HD-SDI 720P, 1080i | |
| SMPIE 424M 3G-SDI 1080P60Hz | |
| SMPIE ST-2081 6G-SDI 2160P30Hz | |
| SMPIE ST-2082 12G-SDI 2160P60Hz | |
|
EQ mode cable transmission distance |
75m at 11.88Gbps |
| 120m at 5.94 Gbps | |
| 200m at 2.97 Gbps | |
| 300m at 1.485 Gbps | |
| 600m at 270Mbps | |
| Signal amplitude | 800mV±10% |
| Impedance | 75Ω |
| Connctor | The BNC meet the IEC169-8 standard |
| RS485 data index | |
| Standard | Compliance with the EIA RS-485 standard |
| Transmission mode | Synchronous transmission |
| Baud rate | 50bps to 520 kbps (support non-standard baud rates) |
| RS485 | 2-wire (A, B), half-duplex, point to multi-master-slave communication |
| Physical interface | Industrial terminal / 3.81mm |
| RS485 circuit index | |
| RS-485 pull-up resistance/pull-down resistance | 4.7 kΩ，4.7 kΩ |
| RS-485 terminal resistance | N / A, 120 Ω, and 120 k Ω |
| Tally signal index | |
| Level type | TTL（5V）/LVTTL(3.3V) |
| Input level range | 3.3V~12V |
| Output level parameters | 0V or 3.3V |
| Default state | No-voltage output (0V) |
| Physical interface | Industrial terminal / 3.81mm |
| Power index | |
| Input current | ≦300MA |
| Input voltage | 5V |
| Overload current protection | Support |
| Power supply physical interface | Type-C |
| Power consumption | <1.5W |
| Mechanical index | |
| The shell metal | Aluminum alloy |
| Product size | 100 x 55 x 25 (mm) |
| Net weight of product | 0.15kg / unit |
| Packing | |
| Material | Kraft paper |
| Package size | 210*160*46mm |
| Gross weight | 0.5kg |
| Parts | USB charging head * 2, Type-C power cable * 2, User’s manual * 1, Certificate of quality * 1 |
| Working environment | |
| Working temperature | -20°C ~+75°C |
| Storage temperature | -40°C ~+85°C |
| Relative humidity | 5 to 95% (non-condensing) |
| MTBF | > 10,0000 hours |

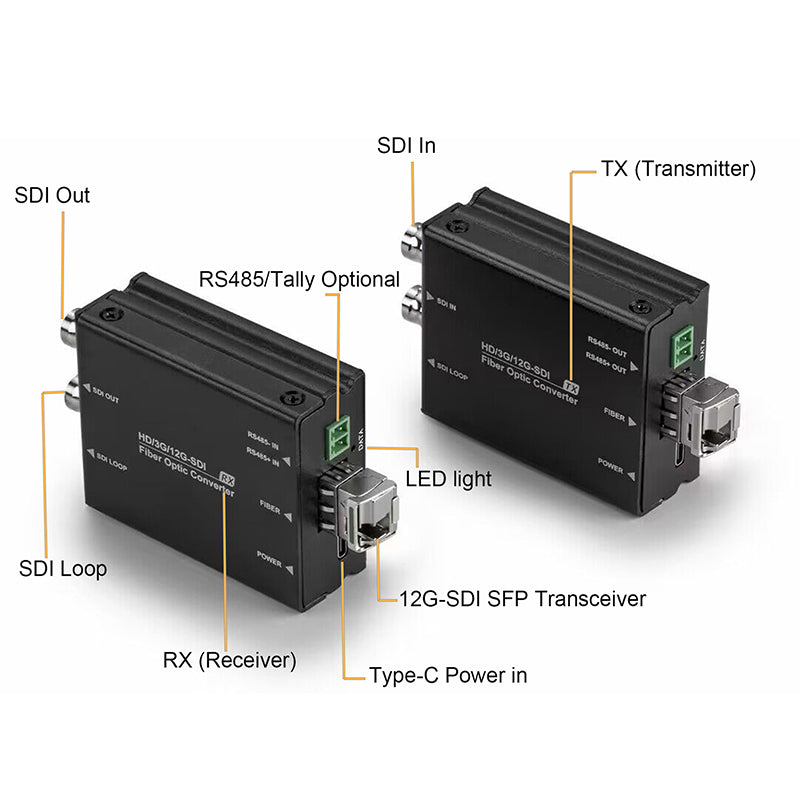

| Silk-screen | State description | |
| PWR | Light on:the device is powered on | Light off:the device is powered off |
| FIBER | Light on:fiber signal | Light off:no fiber signal |
| DATA |
Light on:the device is connected Blinking: Data works |
Light off:no data signal |
| V1 | Light on:video signal | Light off:no video signal |
Package Include:

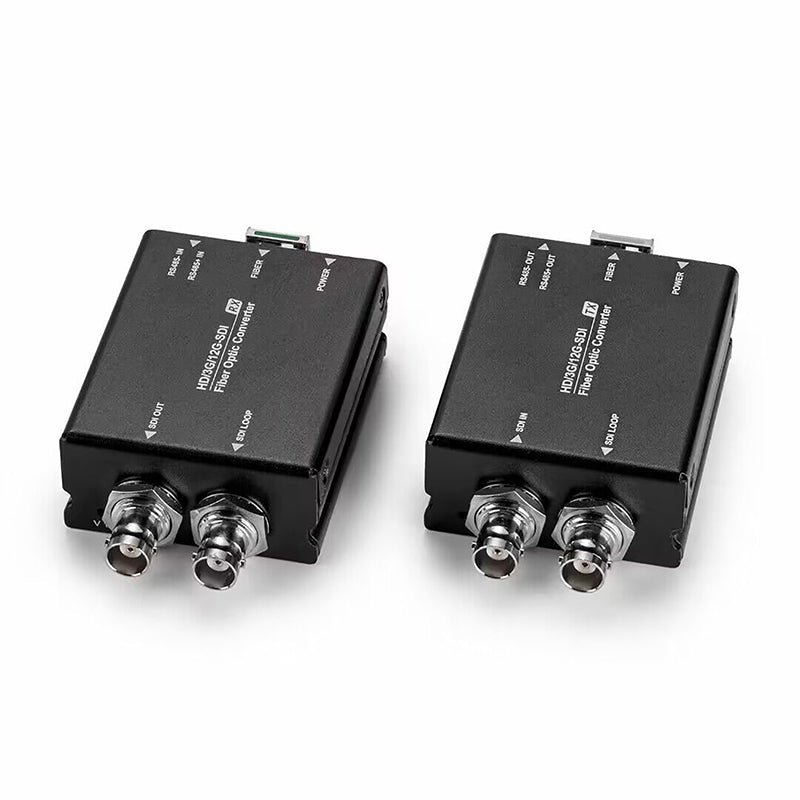

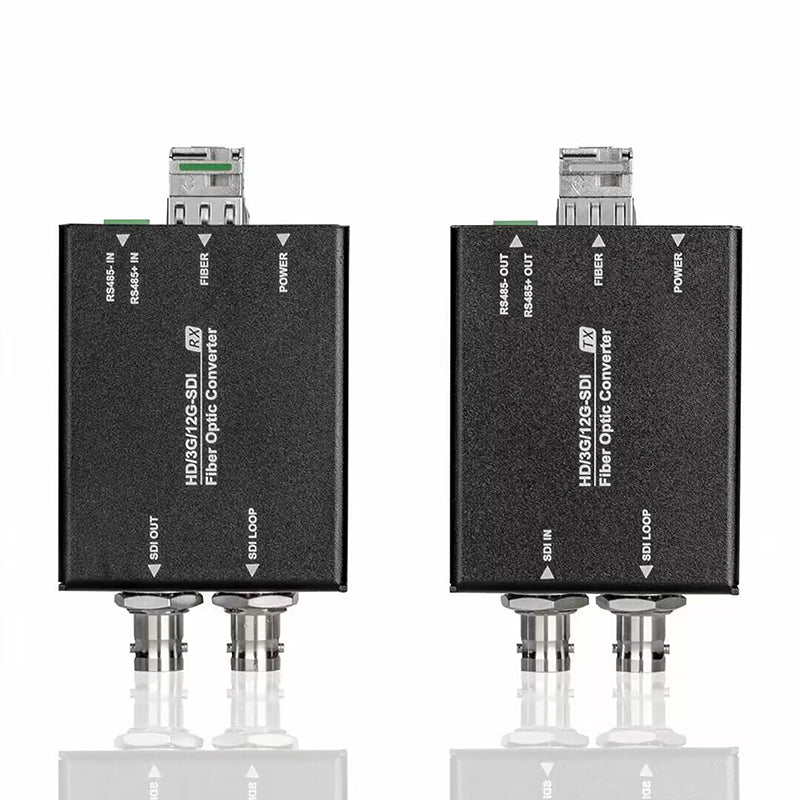

1 x 12G-SDI Transmitter
1 x 12G-SDI Receiver
2 x USB charging head
2x USB to Type-C power cable
1 x Free 3M LC-LC S/M fiber patch cord
1x User Manual
