1080p HDMI Over CAT5e/CAT6 Ethernet Extender Up to 150m (492 Ft) with KVM and Loop out Full HD 1080P

  Overview:   The HDMI over single ethernet extender is able to extend a 1920x1080P@60Hz audio/video signal...
Vendor: Primeda-telecom
SKU: PMD-HDMI-KVM-E
Availability: In Stock
Product Type: HDMI fiber converters
$78.00
$98.00
$78.00
Please hurry! Only 100 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $78.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

1080p HDMI Over CAT5e/CAT6 Ethernet Extender Up to 150m (492 Ft) with KVM and Loop out  Full HD 1080P

1080p HDMI Over CAT5e/CAT6 Ethernet Extender Up to 150m (492 Ft) with KVM and Loop out Full HD 1080P

$98.00 $78.00

1080p HDMI Over CAT5e/CAT6 Ethernet Extender Up to 150m (492 Ft) with KVM and Loop out Full HD 1080P

$98.00 $78.00



Overview:



The HDMI over single ethernet extender is able to extend a 1920x1080P@60Hz audio/video signal up to 492Ft (150meters), with tiny latency and utilize the EDID copy function to eliminate any incompatibility issues that may occur within the setup. it is a great addition to an A/V distribution room, and it's easy installation make it perfect for any residential or commercial installation.





Feature:



【Extend HDMI A/V signal up to 492FT】For 492Ft(150m) transmit distance via CAT6/CAT7/CAT5e LAN cable.  Low Video Latency. NOTE: We recommend using direct HDMI to HDMI connections, avoid using signal converters or adapters



【With EDID function】Utilize the EDID copy function to eliminate any incompatibility issues that may occur within the setup

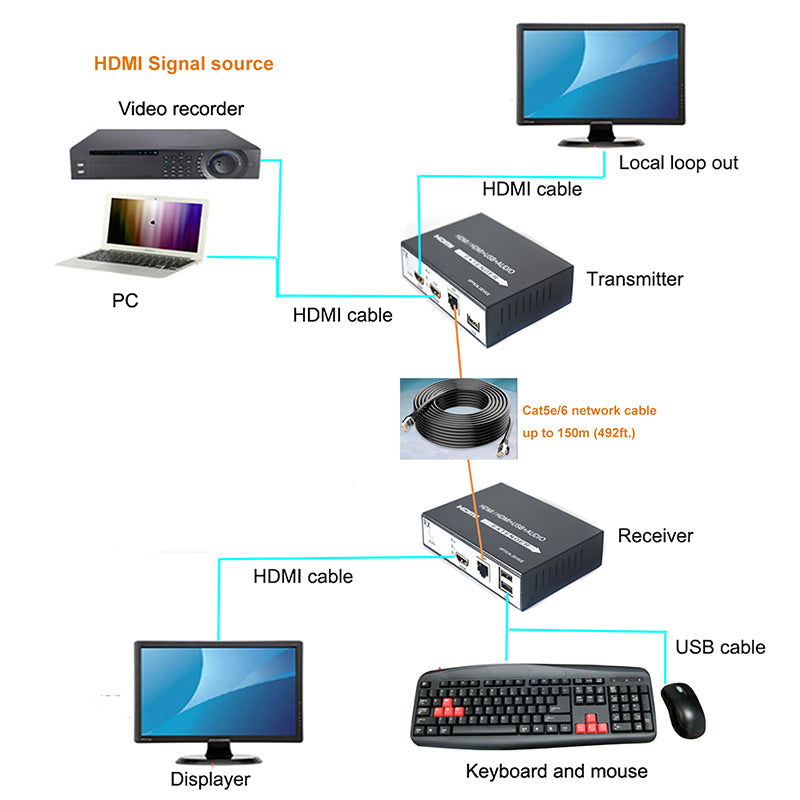

【KVM and Loop out】 KVM function allow you to control HDMI audio/video signal remotely through a keyboard and mouse with USB port. HDMI Loop-out on the transmitter unit allows you to connect an HDMI display at the source



【APPLICATION 】 Widely used in extending HD sources such as Blu-Ray players, game consoles, PCs and other HDMI sources to distant monitors, displays, TVs, and more



【Optimized your performance 】- For better picture quality and longer distance transfer, We highly recommend you to use Cat6 or Cat7 cable. For better performance, we suggest using solid COPPER network cable with our product.



【Plug and Play】: No need to set up, Simply plug in RJ45 port and HDMI connectors at Transmitter and Receiver sides, it will have video instantly





General Index:

1. Product size: 125x90x27mm (LxWxH).

2. Product weight: about 1Kg per set.

2. Working voltage : AC100~240V,DC5V2A, with US/EU/UK/AU power supply plug is optional.

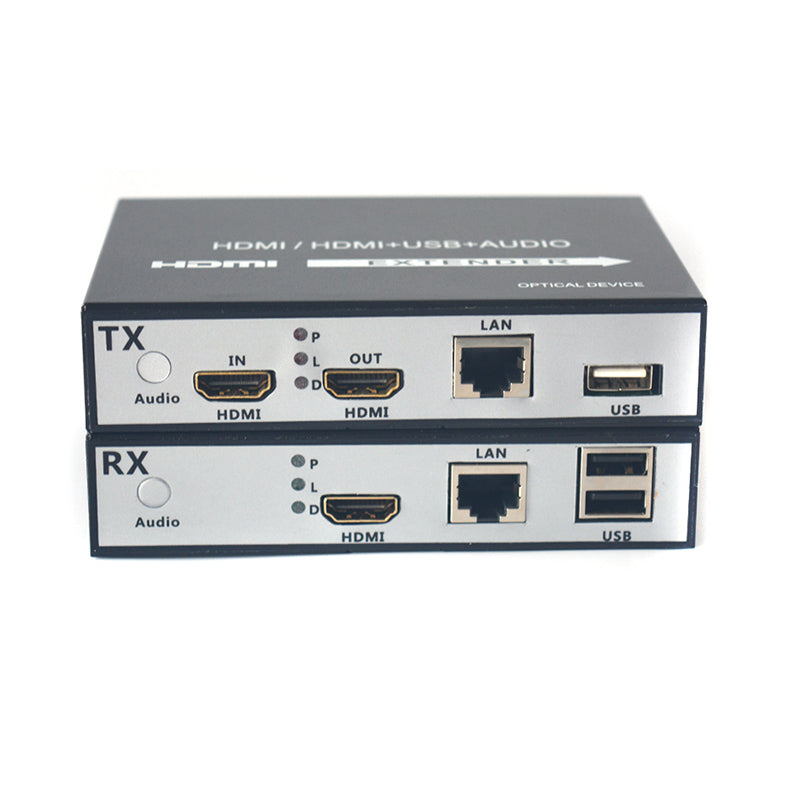

LEDs Indicator description:

1. P: power indicator, always on after power on.

2. L:  Network light, have network signal pass through from TX to RX, the network communication normal always constant on.

3. D: data light, always on after connecting HDMI signal, there is data communication flashing.



 2U Rack moutable, if you request ,please contact us .



Package Include:

1x HDMI Transmitter

1x HDMI Receiver

2 x power supply adapter

1 x User manual
