8 Video Ethernet RS485 422 Data to Fiber media Converters, Analog Video RJ45 network over fiber, optical FC, Singlemode up to 20Km Multimomode 500M.A set

8 Video Ethernet RS485 422 Data to Fiber media Converters, Analog Video RJ45 network over fiber, optical FC, Singlemode up to 20Km Multimomode 500M.A set

$459.00 $399.00

8 Video Ethernet RS485 422 Data to Fiber media Converters, Analog Video RJ45 network over fiber, optical FC, Singlemode up to 20Km Multimomode 500M.A set

$459.00 $399.00

Product description:

This model is multifunctional  Video/RS422 and RS485 Data/Ethernet over same fiber optic media converters.

It can extend 8 channels Video (for analog cameras) over fiber, singemode fiber up to 20Km, compatiable multimode up to 500m.

It also can extend 10/100Mbps Ethernet by same fiber cable, which can be applicable for extending computer networking, as well as applicable for IP cameras.

4 bidirectional RS-485 data for remote cameras control, and 4 bidirectional RS-422 data.


Function:

  • 8 channels video for analog cameras
  • 1x 10/100Mbps Ethernet
  • 4x RS-485 data (bidirectional)
  • 4x RS-422 data (bidirectional)
  • FC, Single-mode up to 20Km



Remark:

Support OEM,custom made,No Minimum purchase, Contact us if needed.

Video:

  1. Video connector: BNC
  2. Video format compatible for PAL, NTSC, SECAM
  3. Mean Time between failures:More than 100,000 hours
  4. Input / output impedance: 75 Ω (unbalanced)
  5. Input / output voltage: typical 1Vpp (peak-to-peak), maximum 1.2Vpp
  6. Bandwidth: 5Hz-10MHz
  7. Sampling: 15MHz high speed sampling
  8. Digital Bit Width: 8/10 bits (bits)
  9. Differential gain: (10% -90% APL) DG <1% (typical)
  10. Differential phase: (10% -90% APL) DP <0.8 degree (typical)
  11. Field tilt: <0.3%
  12. Video signal to noise ratio (weighted): S / N ≥ 70dB (maximum optical link loss)



Optical :

  1. Optical Interface : FC
  2. Wavelength : Single-mode 1310/1550μm (9/125μm).
  3. Transmission distance: Singlemode 0-20Km. Multimode up to 500m.



Data :

  • RS-485 (2 wires), Bi-directional
  • RS-422 (4 wires), Bi-directional
  • Connector: Terminals block


Ethernet:

  1. Interface rate: 10 /100Mbit/s adaptive, the default is 100Mbps working state
  2. Interface type: UPC Cat5 cable RJ-45
  3. Support Protocol: IEEE 802.3U 100Base-TX, 10 / 100M Ethernet standard
  4. Work mode: full duplex or half duplex



Power supply:  AC100~240V, DC5V/2A (US/EU/UK/AU standard is optional)


Applicable for:

  1. Security Systems
  2. Radio and television transmission
  3. Video monitoring
  4. Building control systems
  5. Train/High speed road monitoring
  6. Intelligent Traffic Monitoring System (ITS)
  7. Remote multimedia teaching / campus monitoring
  8. Long-distance radio and television transmission system

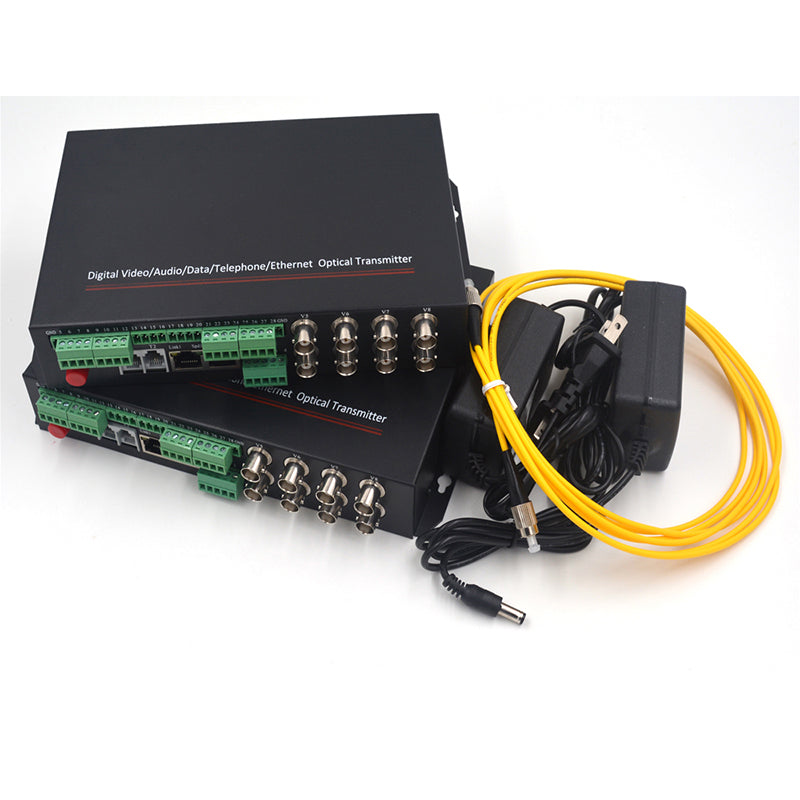

Package:

1x Video fiber Transmitter

1x Video fiber Receiver

2x Power supply adapter

1x FREE 3M FC-FC S/M fiber patch cord.

1x User manual
