8 channels POTS Telephones and Ethernet over Fiber optic Media Converters,High quality PCM voice landlines phones fiber Extenders

Feature:   This unit can extend POTS (Plain Old Telephone Service) landline phones and Network signal by a same fiber: 8 Independent POTS...
Vendor: Primeda-telecom
SKU: PMD-8TEL-E-FC-20Km
Availability: In Stock
Product Type: Telephone fiber converter
$128.00
$148.00
$128.00
Please hurry! Only 99 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Transmission range: 20Km
Subtotal: $128.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

8 channels POTS Telephones and Ethernet over Fiber optic Media Converters,High quality PCM voice landlines phones fiber Extenders

8 channels POTS Telephones and Ethernet over Fiber optic Media Converters,High quality PCM voice landlines phones fiber Extenders

$148.00 $128.00

8 channels POTS Telephones and Ethernet over Fiber optic Media Converters,High quality PCM voice landlines phones fiber Extenders

$148.00 $128.00
Transmission range: 20Km

Feature:

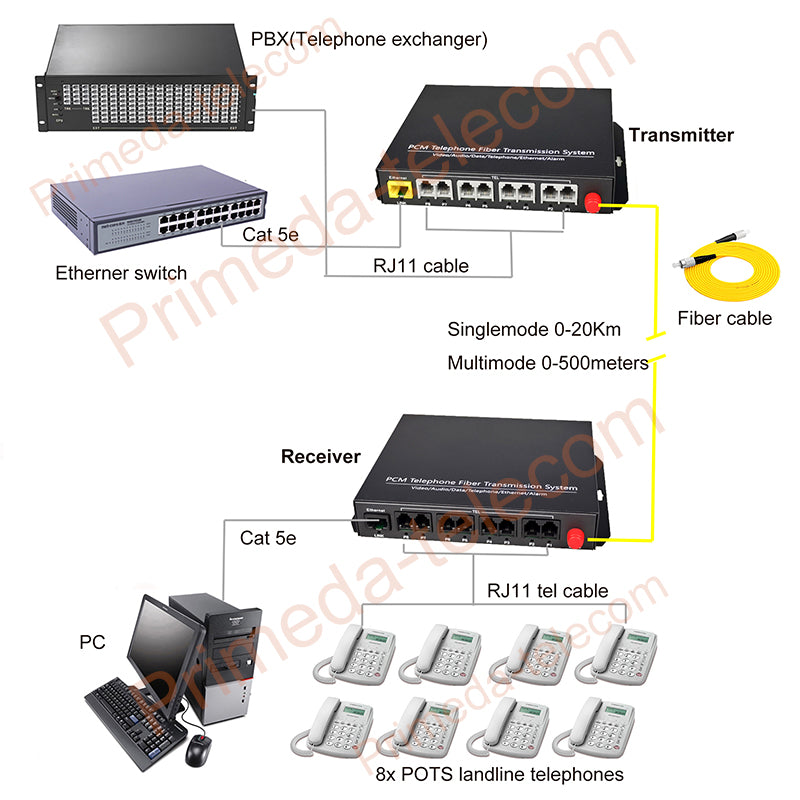

This unit can extend POTS (Plain Old Telephone Service) landline phones and Network signal by a same fiber: 8 Independent POTS telephones lines and 1x 10/100Mbps Ethernet port over same fiber optic cable to far end.



Suitable for Both Fiber Types (Single-mode and multimode). Single-mode fiber distance up to 20 km(40Km/60Km/80Km/100Km is optional), Multimode fiber distance up to 500m(0.31 miles)



Support Called id, Ring and Fax function,Voice coding adopts PCM coding .Uncompressed and No Delay Transmission and Protocol Support, High fidelity speech.



Professional high quality design and Excellent performance, Voice quality is pure clear and stable. Widely used in government units, electric power, public security, military, civil aviation, maritime, mining, highway and other college networks or public networks



LEDs for power supply and optical fiber link, data status indication can monitor the operating status of the system



Plug and play,No need to set up







Phone RJ11 port specifications:



FXS interface (transmitter)

Telephone Channel: 2

Ringing receiving voltage: 75V (AC)

Ring frequency: 25Hz or 50Hz

Two-wire input impedance: 600Ω



FXO interface (receiver)

Telephone Channel: 2

Ring output voltage: 75V (AC)

Ring frequency: 50Hz

Two-wire input impedance: 600Ω





Ethernet RJ45 port specifications:

Rate: 10M/100Mbps, full duplex, half duplex fully adaptive

Protocol:

IEEE802.3 10Base-T Ethernet , IEEE802.3u.

100Base-TX/FX Fast Ethernet , IEEE802.3x Flow control ,

IEEE802.1q VLAN,IEEE802.1p Qos,IEEE802.1d Spanning Tree

Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)



Power supply:

1. Suitable working voltage AC100~240V, DC12V

2. US/EU/UK/AU standard power supply adaptor is optional.



Other index

Working temperature -20°C ~70°C

Storage temperature -40°C ~85°C

MTBF >100,000hours

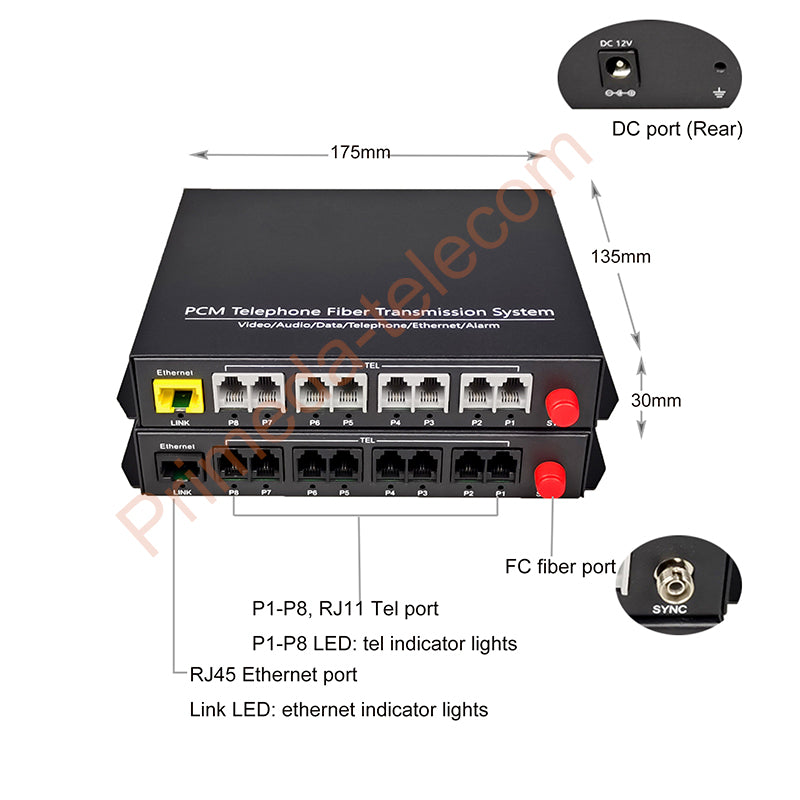

Product size: 175*135*30mm(LxWxH)

Weight: 1.8Kg/set



Package include:

1. 1x 8 channel POTS telephone Transmitter

2. 1x 8 channel POTS telephone Receiver

3. 2 x External US standard power adapter

4. User Manual
