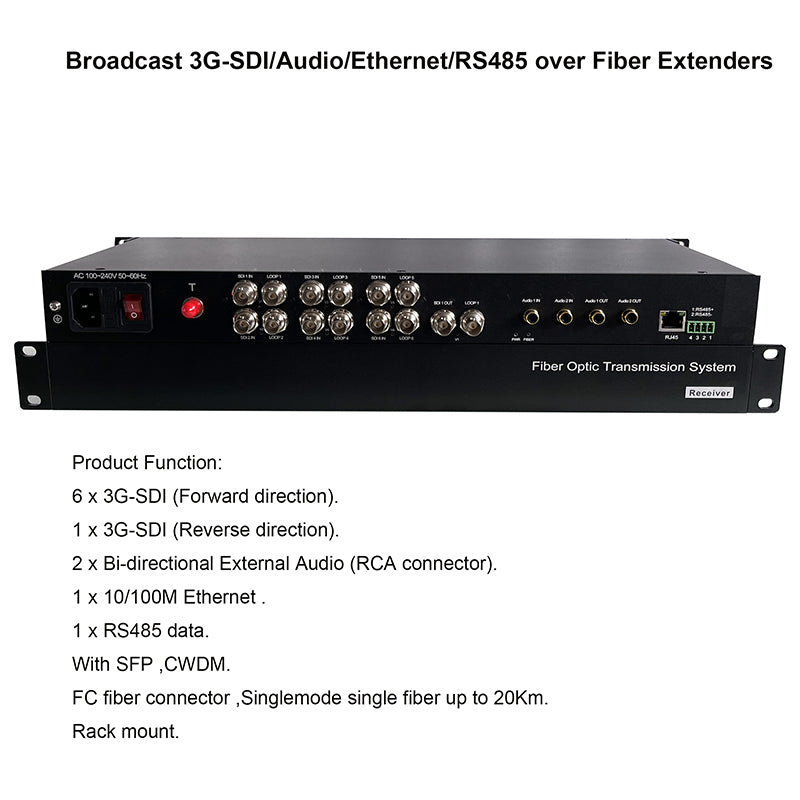

Product Function:

  • 6 x 3G-SDI (Forward direction).
  • 1 x 3G-SDI (Reverse direction).
  • 2 x Bi-directional External Audio (RCA connector).
  • 1 x 10/100M Ethernet .
  • 1 x RS485 data.
  • With SFP inside pc broad ,CWDM.
  • FC fiber connector ,Singlemode single fiber up to 20Km.
  • 1U 19'' Rack mount.



Quick custom made ,small order is acceptable. contact us if you have special requirement.


Feature:

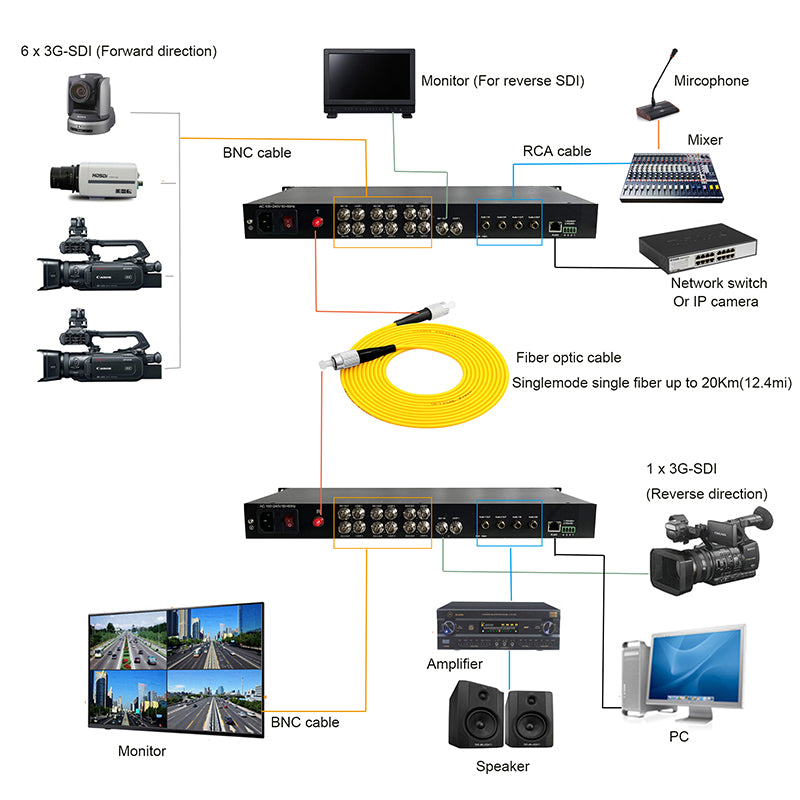

  1. This unit extends 6 channels of 3G/HD-SDI over a fiber optic to far end synchronously, and it can extend 1 channel 3G/HD-SDI at reverse direction, Uncompressed transmission, No delay.
  2. Multi-function, Support SDI loop out for each channel, with 1x10/100Mbps Ethernet which can extend Ethernet signal by same fiber optic cable, it can be used IP cameras with RJ45 port. With 2 Bidirectional Unbalanced Audio and 1xRS485 data which can remote contact PTZ.
  3. Suitable for Universal Single-mode , the transmission distance reach up to 12.4miles (20Km) by a fiber optic cable.
  4. Support 3G-SDI, HD-SDI, SD-SDI, DVB-ASI video signal, Video resolution up to 1920x1080@60Hz,Backward compatible with 1080P@59.94,50,30,25,24Hz and 1080I@60,50Hz and more. Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards.
  5. Broadcasting High grade design, with clock recovery function which can make sure the video image no blinking, whatever you use converter or not. It can reduce signal jitter, it can handle the distortion signal very well. Its quality is far away than ordinary and cheaper units from other brand.
  6. Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
  7. Plug and play, No need to set up.

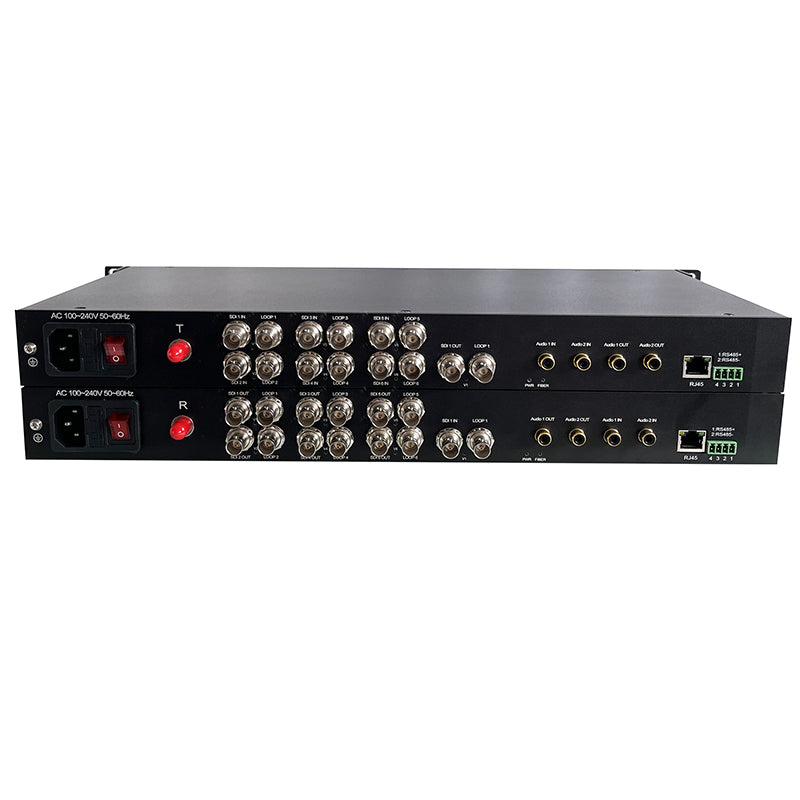

SDI Video:

  1. Physical Interface:  BNC
  2. Support video resolution 1080P@60,59.94, 50,30,25,24Hz and 1080I@60,50Hz and more
  3. Video Input and Output Impedance:   75Ω (unbalanced).
  4. Video Input/output Voltage:Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
  5. Video Bits Rate: Max 2.97Gb/s.
  6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.


Optical Interface: FC (ST/LC is optional)



Electrical & Mechanical :

  1. Power supply: AC100-240V,DC5V2A.
  2. Product weight (including the outer packaging):2.0Kg/Set.

Data:

  1. Physical Interface: standard industry block terminal.
  2. Interface signal: 1x RS485

Environmental:

  1. Operating temperature: -20°C ~ +75°C
  2. Storage temperature: -40°C ~ +85°C
  3. Working humidity: 0% ~ 95% (non-condensing)
  4. MTBF:>100,000 hours


Package Include:

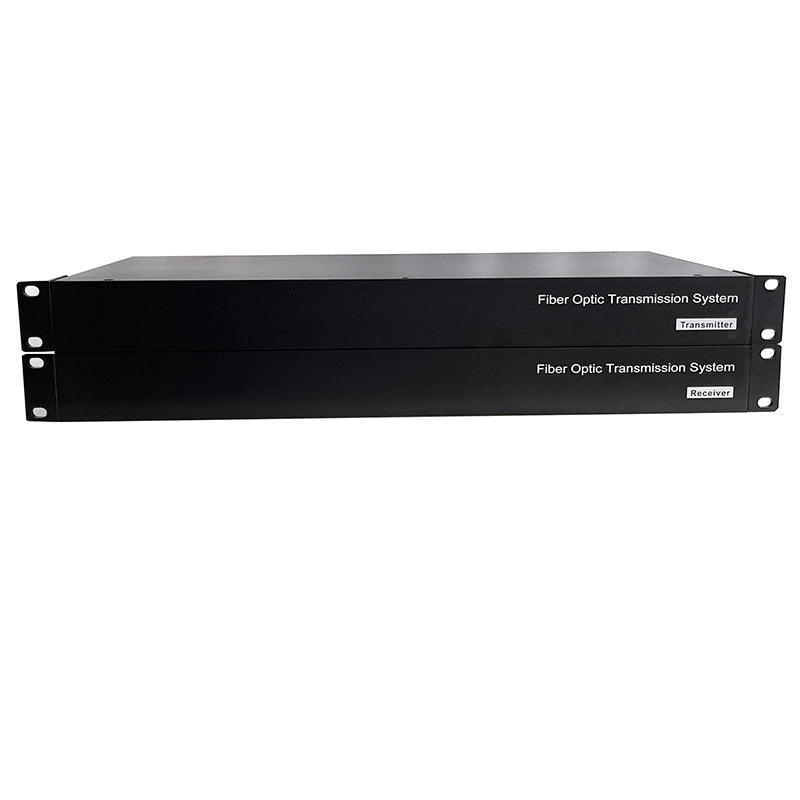

  1. 1 x 3G-SDI Transmitter
  2. 1 x 3G-SDI Receiver
  3. 2x Power cable (US/EU/UK/AU is standard)
  4. 1 x FREE 3M FC-FC fiber patch cord
  5. 1x User Manual
