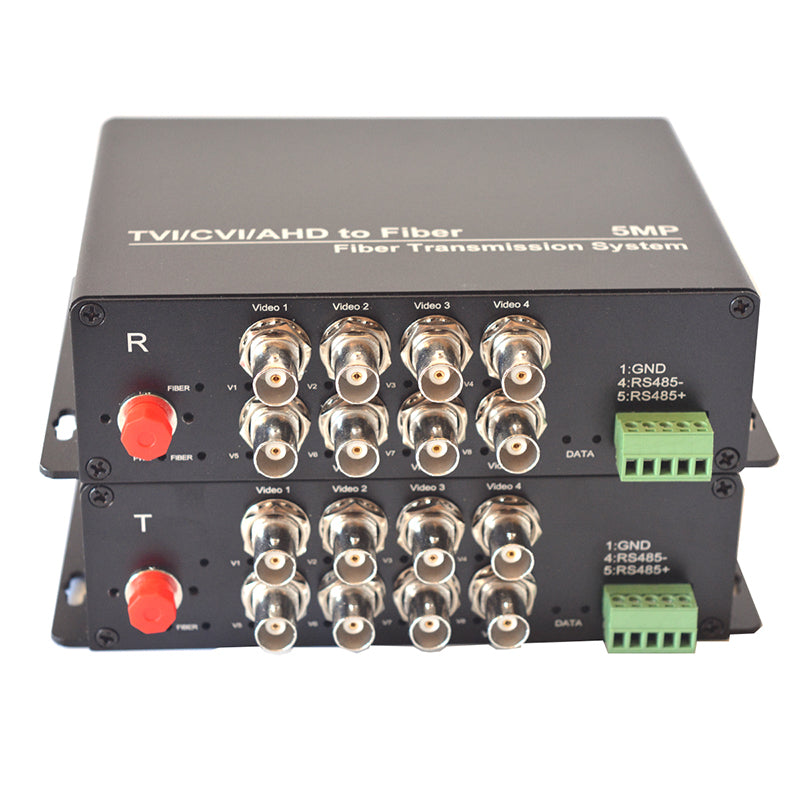

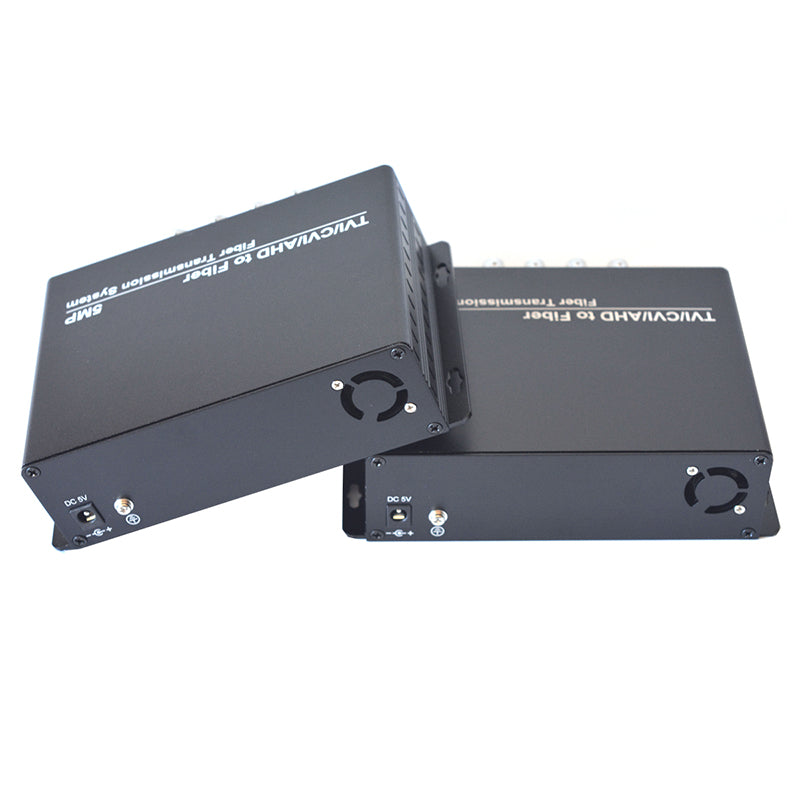

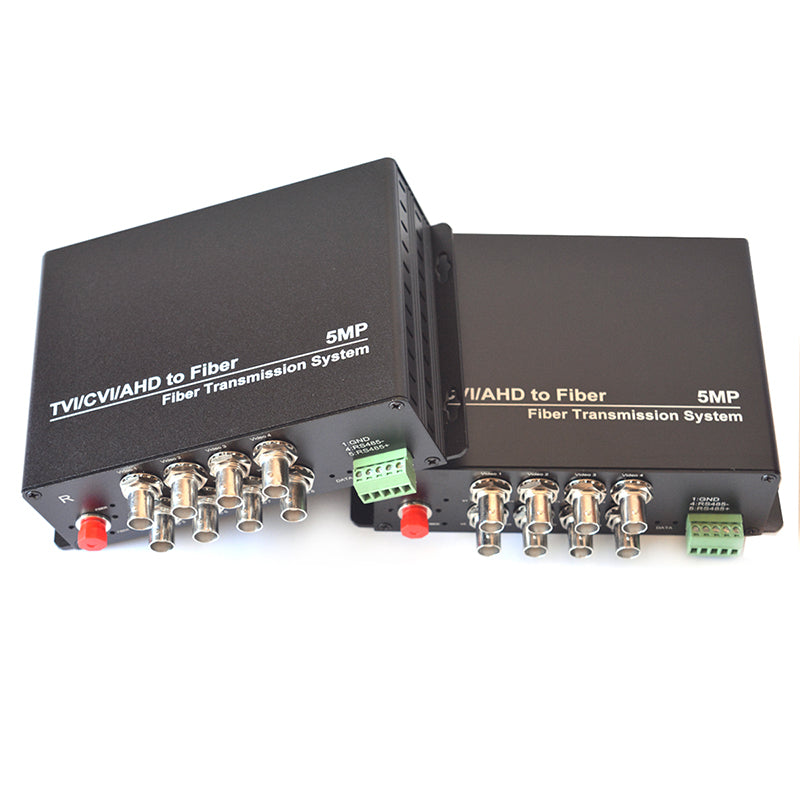

5MP Video over Fiber optic Converters,BNC coax HD Video to fiber extenders, Support 5MP 4MP 3MP 2MP 1080p TVI CVI AHD HD Camera, A pair

Support Cameras: TVI: 5MP/4MP/3MP/2MP 1080P (1920×1080), 960P (1280×960), 720P (1280×720) CVI: 5MP/4MP/3MP/2MP 1080P (1920×1080), 960P (1280×960), 720P...
Vendor: Primeda-telecom
SKU: PMD-16V1D-5MP-FC
Availability: In Stock
Product Type: HD Video fiber extender
$429.00
$499.00
$429.00
Please hurry! Only 100 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $429.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

5MP Video over Fiber optic Converters,BNC coax HD Video to fiber extenders, Support 5MP 4MP 3MP 2MP 1080p TVI CVI AHD HD Camera, A pair

5MP Video over Fiber optic Converters,BNC coax HD Video to fiber extenders, Support 5MP 4MP 3MP 2MP 1080p TVI CVI AHD HD Camera, A pair

$499.00 $429.00

5MP Video over Fiber optic Converters,BNC coax HD Video to fiber extenders, Support 5MP 4MP 3MP 2MP 1080p TVI CVI AHD HD Camera, A pair

$499.00 $429.00

Support Cameras:

  1. TVI: 5MP/4MP/3MP/2MP 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
  2. CVI: 5MP/4MP/3MP/2MP 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
  3. AHD: 5MP/4MP/3MP/2MP 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
  4. Analog cameras (PAL, NTSC, SECAM format)

Feature:

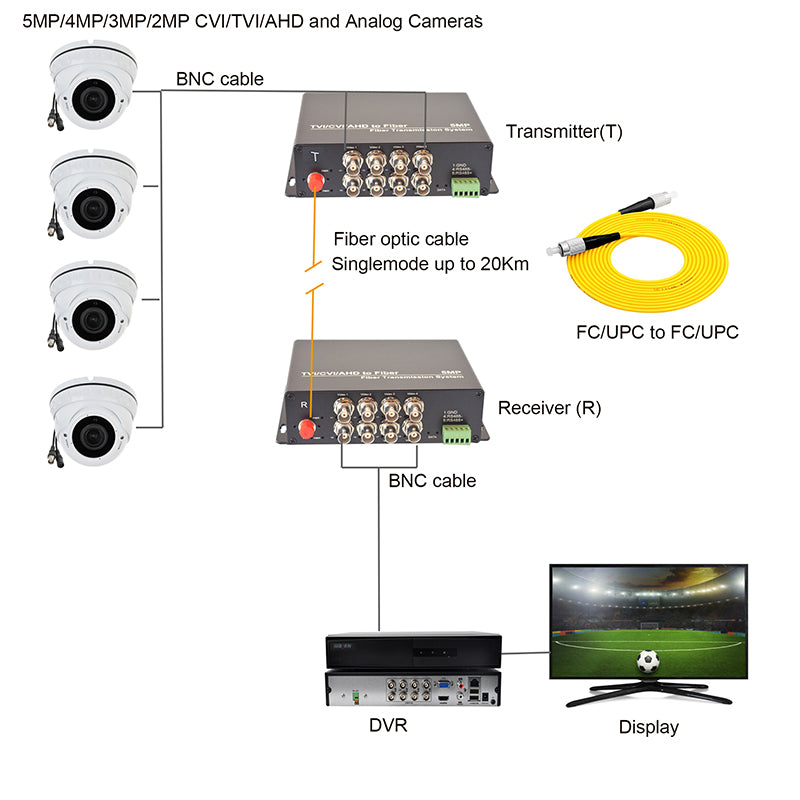

  1. This unit can extend 8channel HD Video signal through a fiber optic cable to remote display. Long transmission distance up to 20Km by single-mode fiber. Broadcast-quality, Uncompressed real-time transmission.
  2. Applicable for 5MP/4MP/3MP/2MPHD TVI/CVI/AHD Cameras, and compatible with 960P/720P TVI/CVI/AHD and analog camera.
    3. Suitable fiber type: universal Single-mode. Equipped with ST optical connector. With RS-485 data (reverse direction) which can remotely control PTZ.
  3. LED indicators can dynamic feedback link connection state and fault detection to easily monitor network status.
  4. Plug and Play, No need to set up.



Optical:
1. Optical connector:  FC (FC/SC is optional)
2. Fiber type: universal single mode, single fiber(default).
3. Working distance: single-mode single fiber 0-20Km (40km/60km/80Km is optional)..



Video:
1. Number of Channels: 8 (1/2/4/8/16 is optional) .
2. Support camera type: 3 megapixel, 4 megapixel, 5 megapixel HD TVI/CVI/AHD video and analog camera.
3. Input/output impedance: BNC 75 ohm (unbalance).
4. Video bandwidth: 30MHz(720P); 60MHz(1080P);150MHz(1960P) .
5. Video input level: >500mVp-p.
6. Video output level: 1Vp-p.
7. SNR:  >60dB (8 bit).
8. Connector:  BNC.
9. Operating Voltage: DC 5V2A.
10. Operating Temperature : -10 degree C to +75 degree C.
11. Storing Temperature : -40 degree C to +85 degree C.
13. Humidity: 0 to 95% Non-condensing.
14. MTBF: >= 100000Hours.


RS-485 Data (optional)
1. Reverse direction, for remote control PTZ cameras.
2. Connector: industry terminal.
3. Baud Rate : 1200-9600bit/s.
4. BER: less than 10-9.


Package list:
1 x Video Transmitter
1 x Video Receiver
2 x External power adapters
1 x User manual
