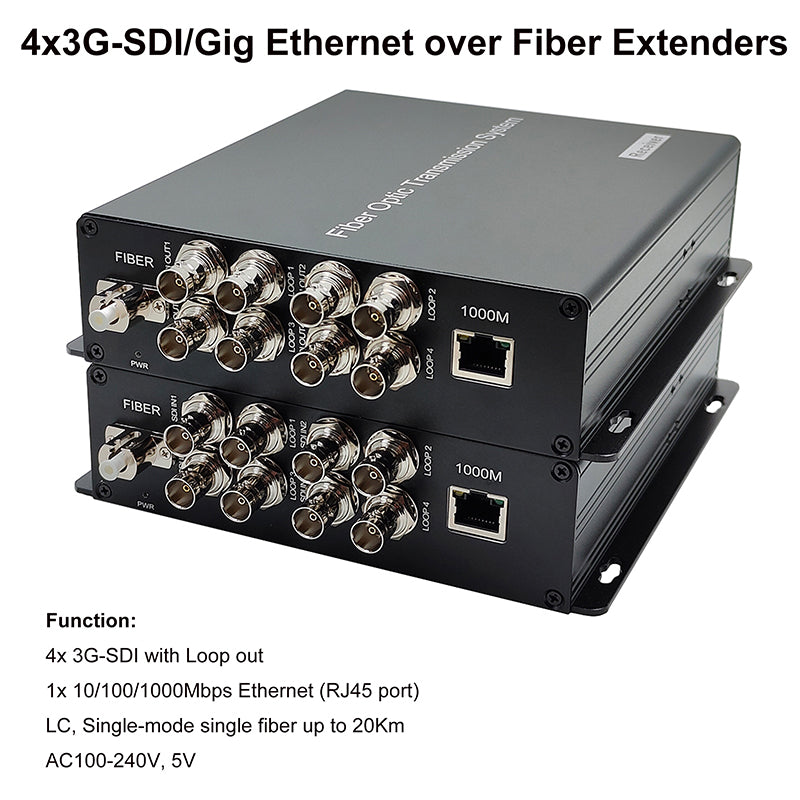

Function:
4x 3G-SDI with Loop out
1x 10/100/1000Mbps Ethernet (RJ45 port)
LC, Single-mode single fiber up to 20Km
AC100-240V, 5V
Features

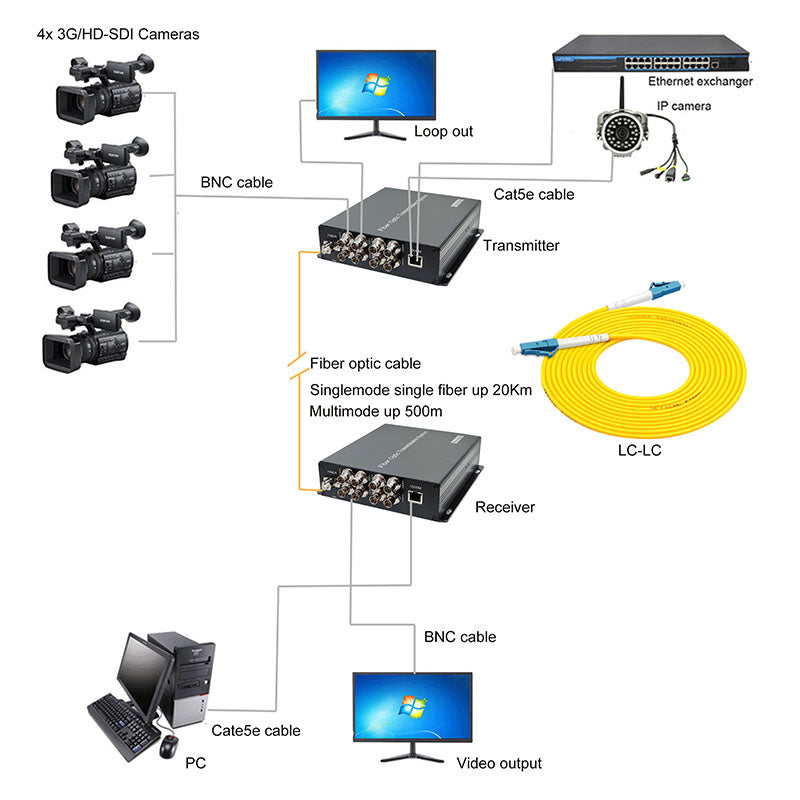

1. Extend 4 channels of uncompressed 3G-SDI, HD-SDI or SD-SDI video over single fiber optic cable. Single-Mode Fiber transmission distances up to 20Km(12.4miles), Compatible with multi-mode Fiber up to 300Meters.
2. Support one 10/100/1000Mbps Gigabit Ethernet, the network signal can be through same fiber optic from Transmitter side to Receiver side. it can extend network signal, like PC and IP camera with RJ45 connector. Note: the SDI signal can’t be extended by Network port (Cat5e cable).
3. Support video resolution 1080P@60,59.94, 50,30,25,24Hz and 1080I@60,50Hz and more.
4. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
5. With clock recovery, clock shaping design which make video visuals smoother and no flicker/no blinking,which its quality is much better than ordinary & cheaper product in current marketing.
6. Supports embedded digital audio stream
7. Real-Time Video Transmission for Exceptional Quality and Resolution
8. LED Status Provide Rapid Indication of Operating Parameters
9. No EMI or RFI and no ground loops, Support hot swap.
10. No need to set up, plug and play.

SDI Video:
1. Physical Interface: BNC
2. Max Resolution: 1920 x 1080 @ 60Hz
3. Video Input and Output Impedance: 75Ω (unbalanced)
4. Video Input/output Voltage:Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
5. Video Bits Rate: Max 2.97Gb/s
6. Video SDI standard: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
Optical Interface: LC (FC/ST/SC is optional, Contact us if needed)
Electrical & Mechanical :

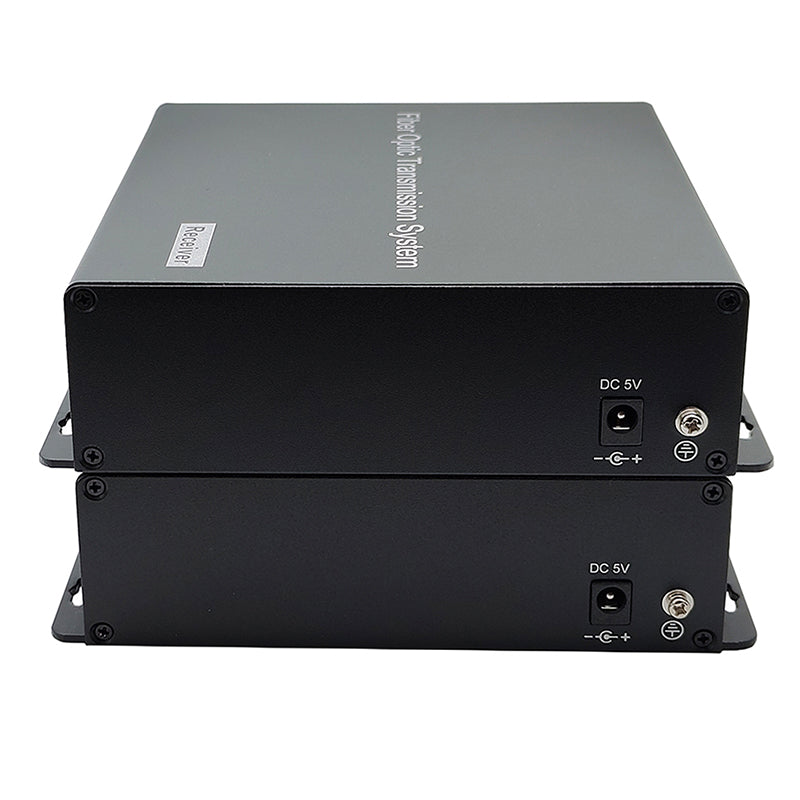

1. Power supply: AC100-240V,DC5V2A (US/EU/UK/AU standard is optional)
2. Product weight: about 2.0Kg/Set.
Environmental
1. Operating temperature: -20°C ~ +75°C
2. Storage temperature: -40°C ~ +85°C
3. Working humidity: 0% ~ 95% (non-condensing)
4. MTBF:>100,000 hours

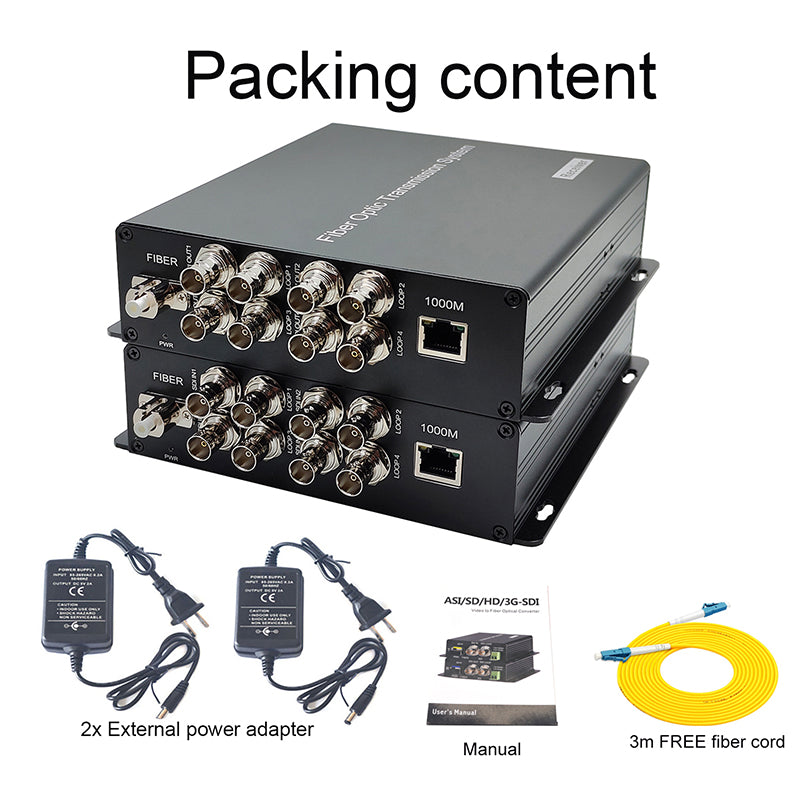

Package Include:
1. 3G-SDI Transmitter
2. 3G-SDI Receiver
3. 2 x External Power adapters (US/EU/UK/AU standard is optional)
4. 1x FREE 3M fiber patch cord
5. 1 x User manual
