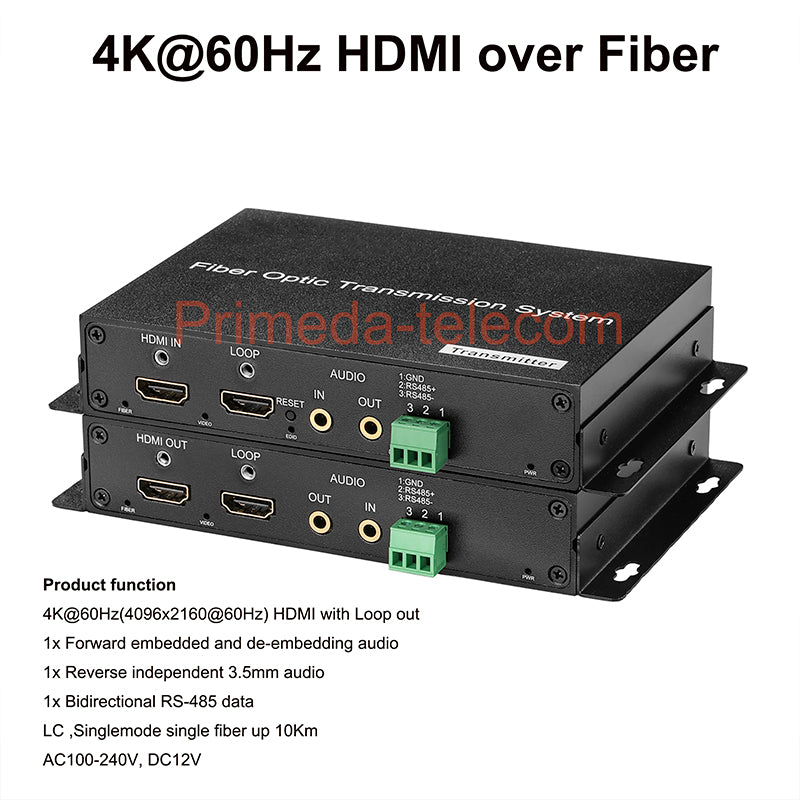

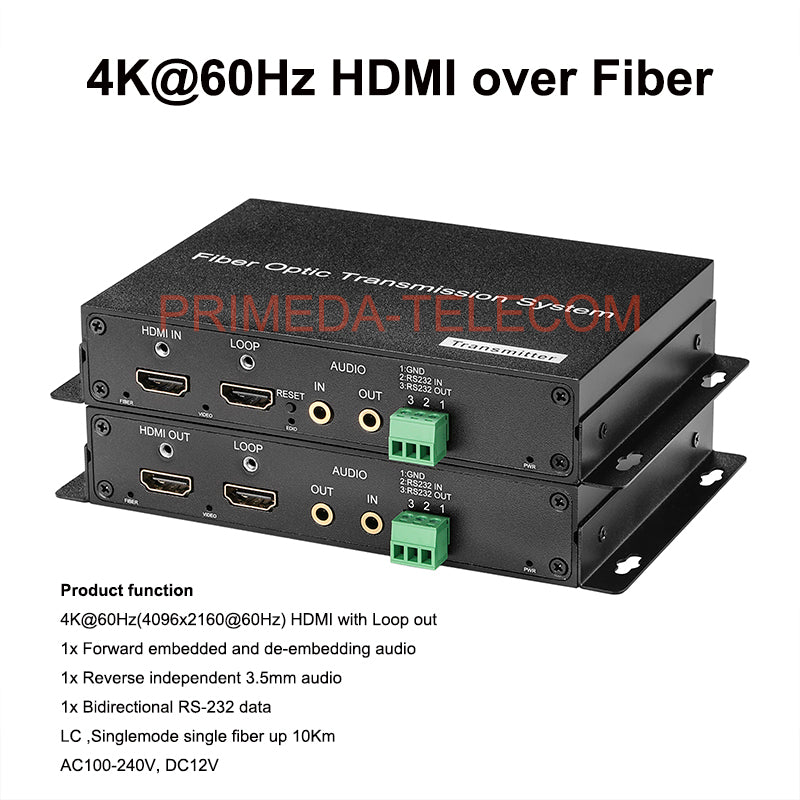

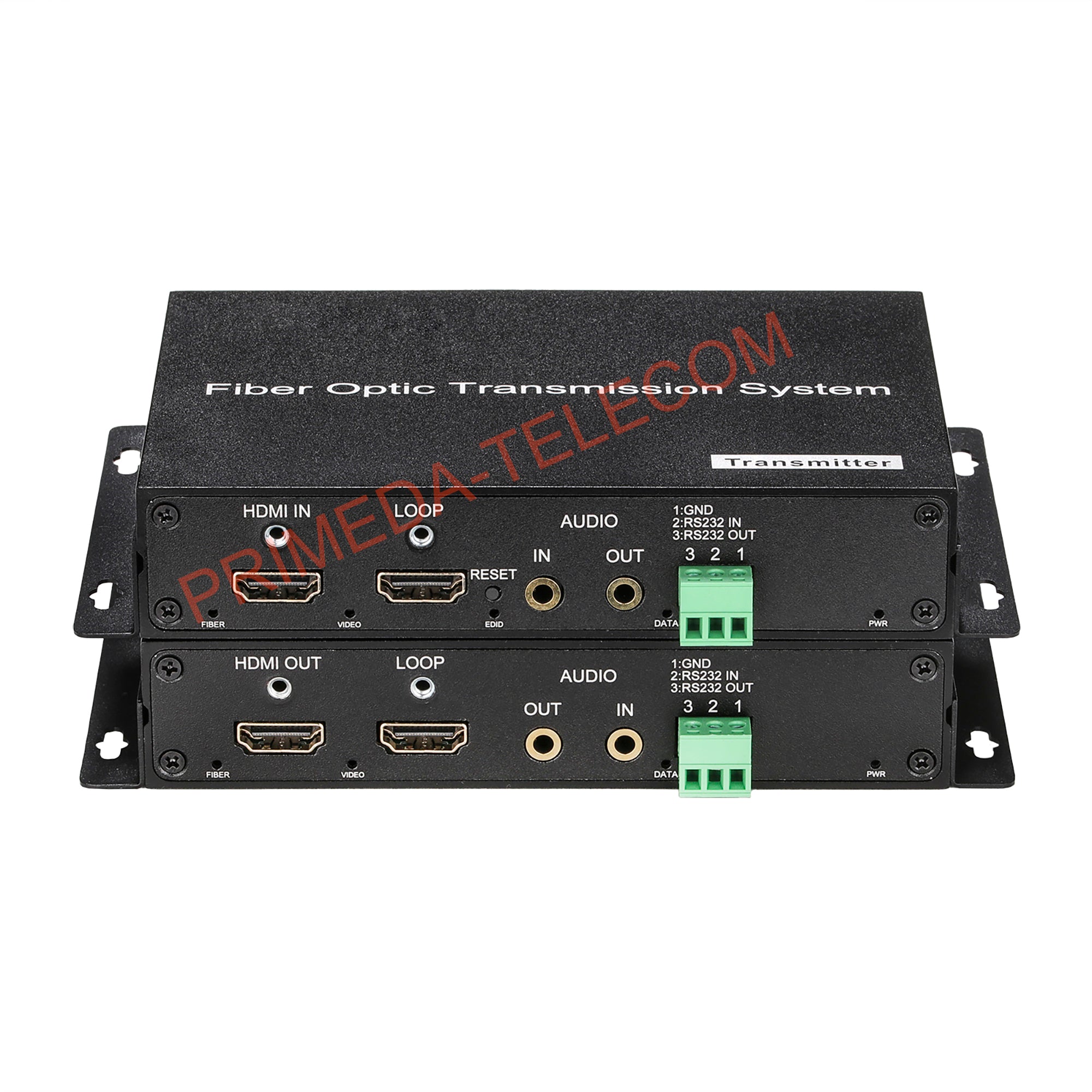

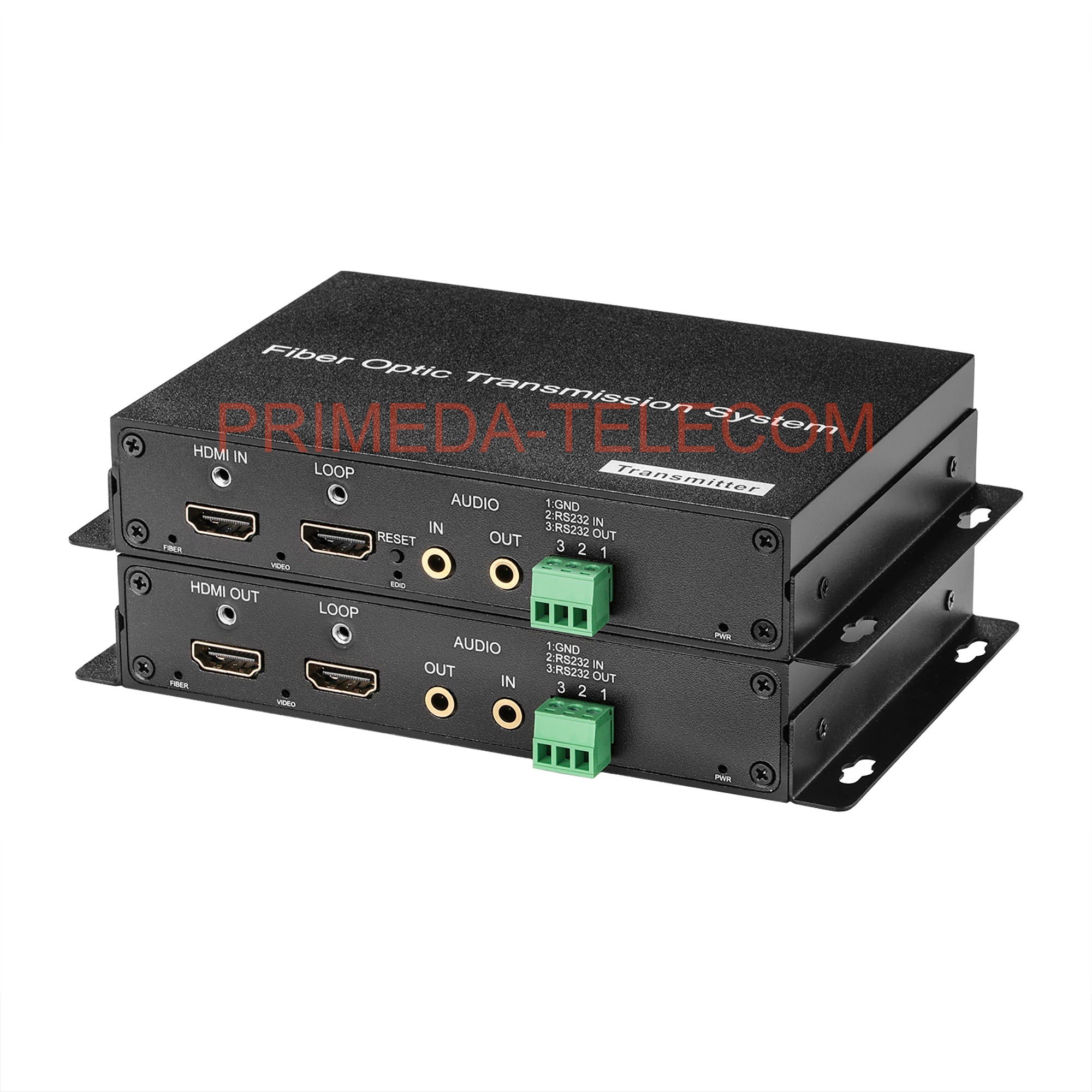

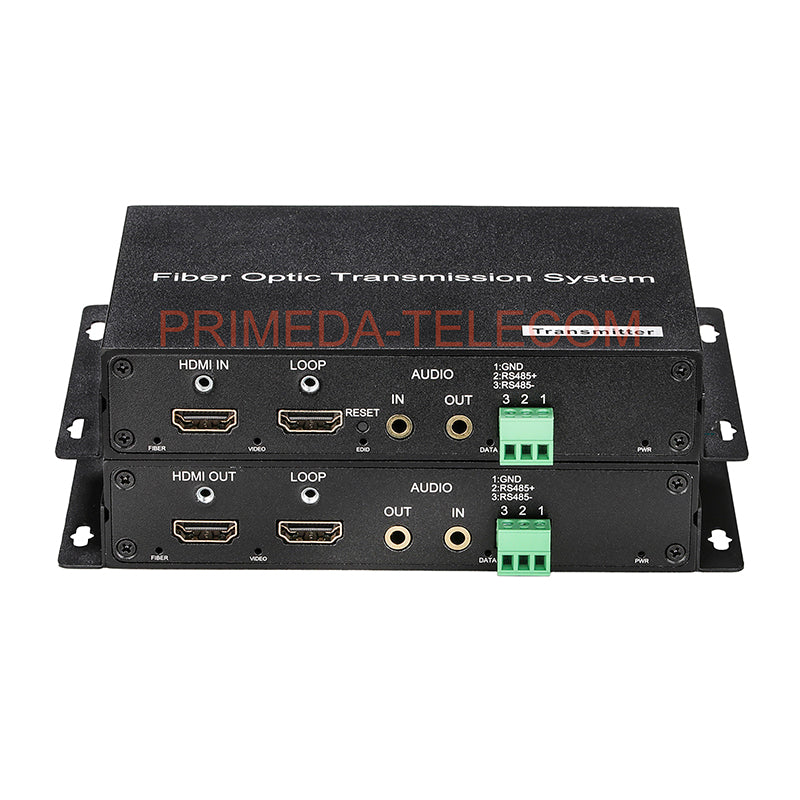

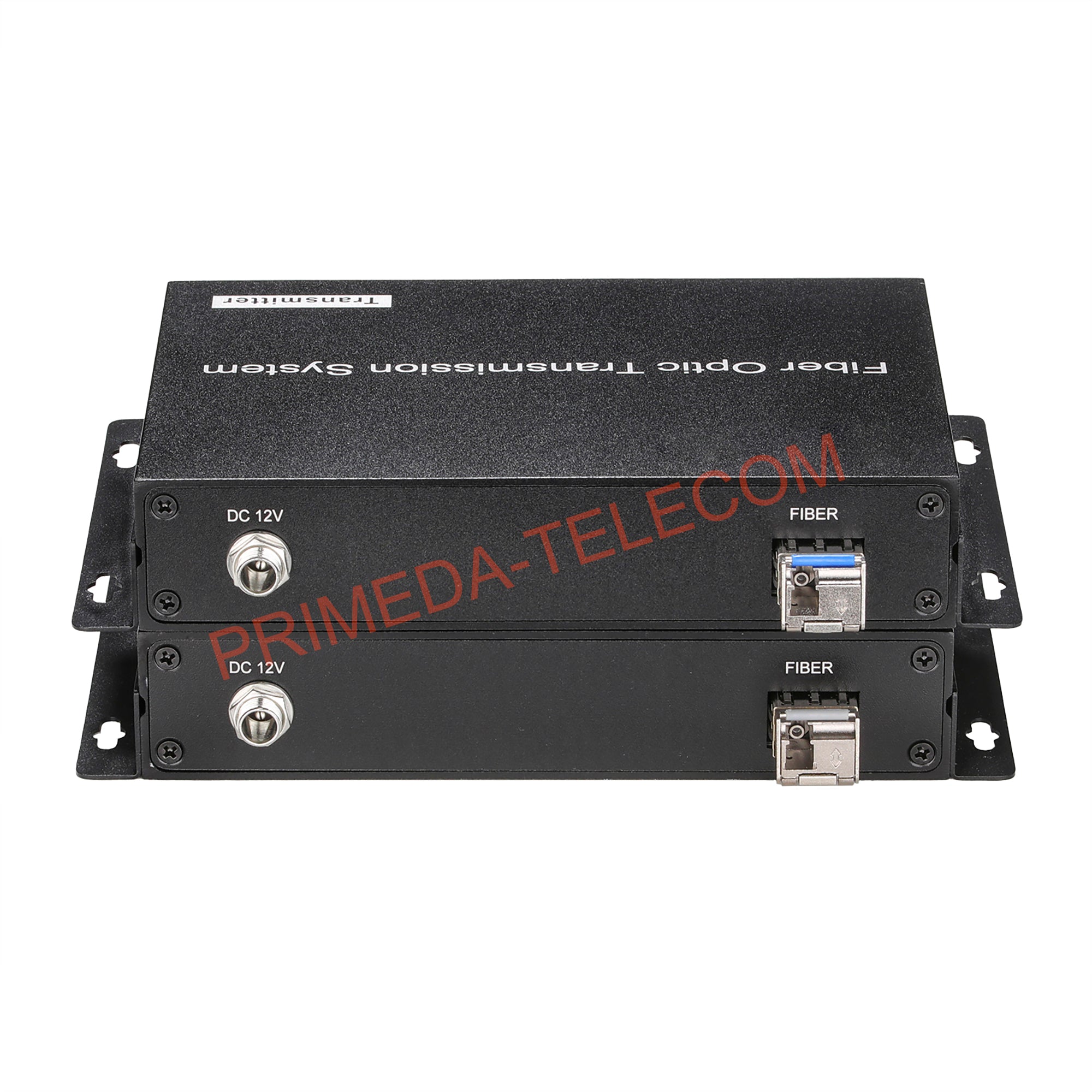

High quality 4K 60Hz HDMI Over Fiber Optic Converter LC with independent 3.5mm audio and RS232 485 Singlemode up 10Km Uncompressed 10G SFP Transceiver Included
Feature: 【4K HDMI over Fiber】- Extend 4K HDMI2.0 signal over Fiber Optic cable to remote transmission,...
Vendor:
Primeda-telecom
SKU:
PMD-HDMI-4K60Hz-232-3.5mm-LC
Availability:
In Stock
Product Type:
HDMI fiber converters
- $448.00
$518.00- $448.00
- Unit price
- per
Please hurry! Only 99 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Fast Shipping
Estimated standard delivery time 7-12 days. Express 5-7 days
Free Returns
Learn More.
Built And Shipped Within 1-3 Days
Feature:
【4K HDMI over Fiber】- Extend 4K HDMI2.0 signal over Fiber Optic cable to remote transmission, Long transmission distance Up to 10Km(1640FT) by singlemode single fiber cable.
【Ultra HD 4K Resolution】- This HDMI fiber converter supports resolution up to 4Kx2K@60Hz resolution, Support 3D and HDR format video.
【Uncompressed Transmission】- It can transmit Uncompressed Video/Audio signals up to 0.62 Miles(10Km) with non-delay and Lossless. HDMI is embedded Audio, it can transmit video and audio signal synchronously.
【Multifunction】Support bidirectional 3.5mm independent audio. One is forward 3.5mm independent transmission with audio embedding/un-embedding function in one direction, Other one is reverse 3.5mm audio transmission in other direction. Support 1 channel bidirectional RS232 or RS485 port data transmission. and it also support EDID management function,support built-in EDID/automatic learning EDID switch.
【10Gb/s SFP transceiver】2 Pcs 10Km 10Gb/s SFP Transceiver included. Single Single-mode Fiber up to 0.62Miles(10Km), the same equipment is also compatible with Single Multimode fiber up to 1000 Feet (300m).

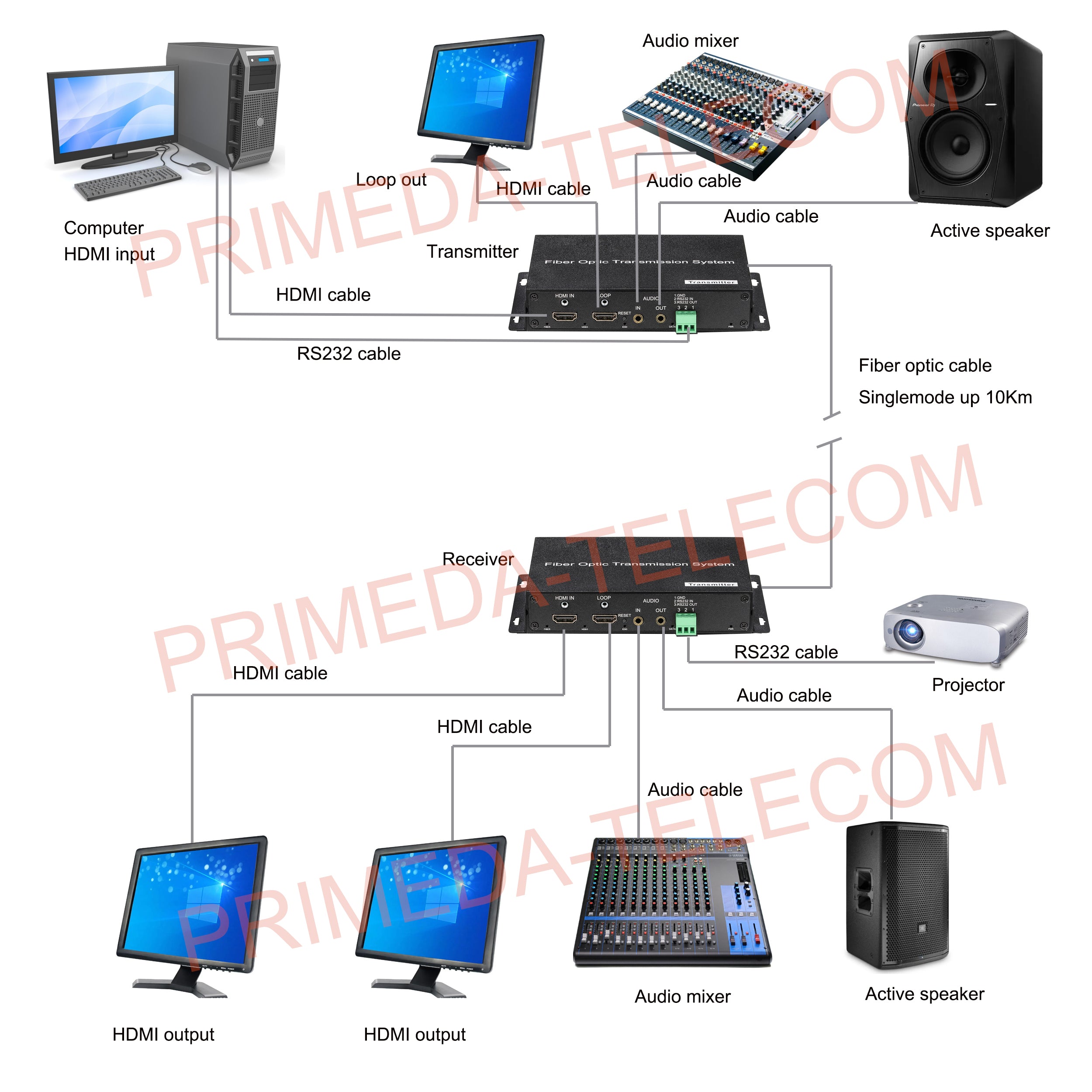

【Widely application】Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, used fiber optic to connect the transmitter to Receiver, then connect your HD TV from a long distance place to the Receiver.
【Plug and Play】Plug and Play, None configuration required, Easy to install.
Application for:
1.Stage rental;
2.LED large screen;
3.Projection fusion;
4.Live TV;
5.Radio and television and video recording;
6.Video conferencing;
7.Information release and display system;
8.Command and dispatch center;
Optical index:
1.Optical connector :LC
2. Wavelength 1310-1550nm
3. Rate: 10Gbps
Video index
HDMI standard :HDMI 2.0
Video bandwidth:18Gbps
Video resolution:480i ~1080p50/60Hz,4Kx2K@24/30Hz,4k2k@60Hz
Color space:RGB,YCbCr 4:4:4/4:2:2,YUV 4:2:0
Maximum pixel clock:594MHZ
Effective cable length: ≤10M
Physical interface:HDMI Female
Audio index
Sampling frequency: 48K
Sampling depth:24bit
Dynamic bandwidth:96db
Total harmonical distortion (THD):-88db
Signal to noise ratio（SNR）:96db
Audio input/output impedance:600Ω
Signal level:VPP 3.5V
Physical interface:3.5mm stereo audio socket
Signal type: Stereo channel
RS-232 data index
Connector: 3-wire system, full duplex
Baud rate:115200Kbps downward compatibility
Data bits: 8 digits
Physical interface:3-pin phoenix terminal
Other index
Operating temperature:-20°C ~75°C
Storage temperature: -40°C ~85°C
Power supply:12V1A (US/EU/AU/UK power supply adapter is optional)
Power dissipation＜1.5W
Outer box Material: Aluminum alloy
Mean Time Between Failure (MTBF): ≥100,000 hours
Product size:163*100*29mm(LxWxH)
Product weight: 1.15kg
LED Indicated lights:
Link light: TX: turn on when connect to video. RX: when connect to fiber optic.
PWR light: Power light, Turn on when connect to power. Turn off when no power.
Package include.
1 x 4K HDMI Transmitter.
1 x 4K HDMI Receiver.
2 x 10Gbps SFP optical module.
1 x Free 3M LC/LC fiber patch cord
2 x External power adapter
1 x Manual.
4U Rack moutable, if you request ,please contact us .
