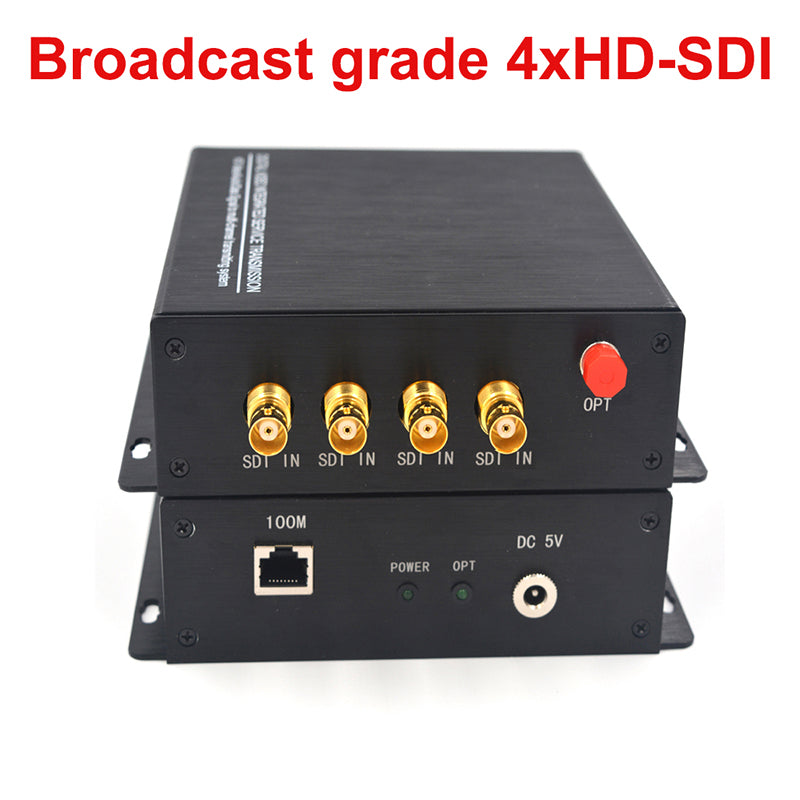

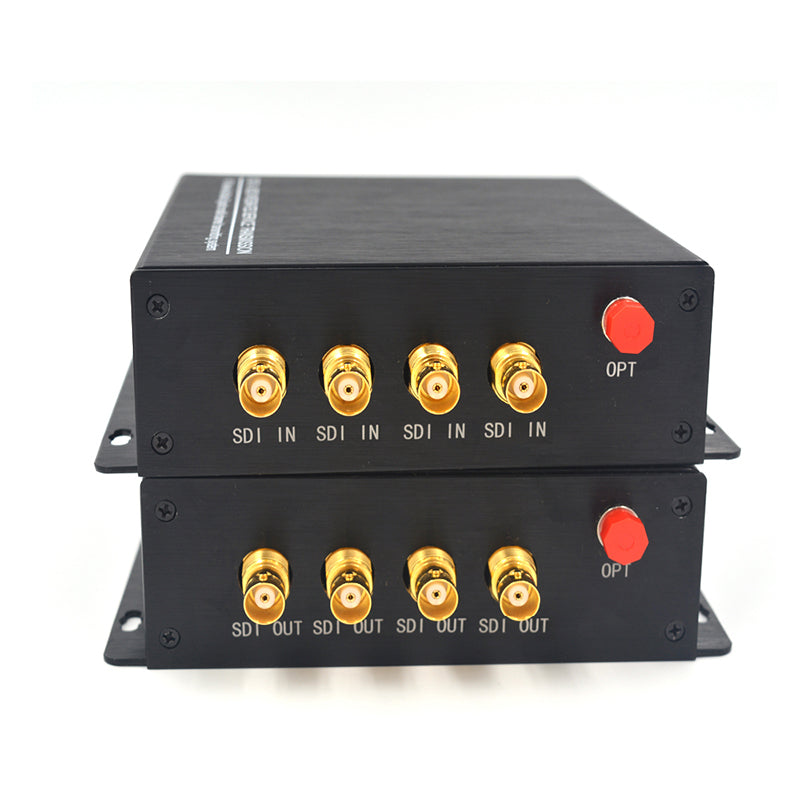

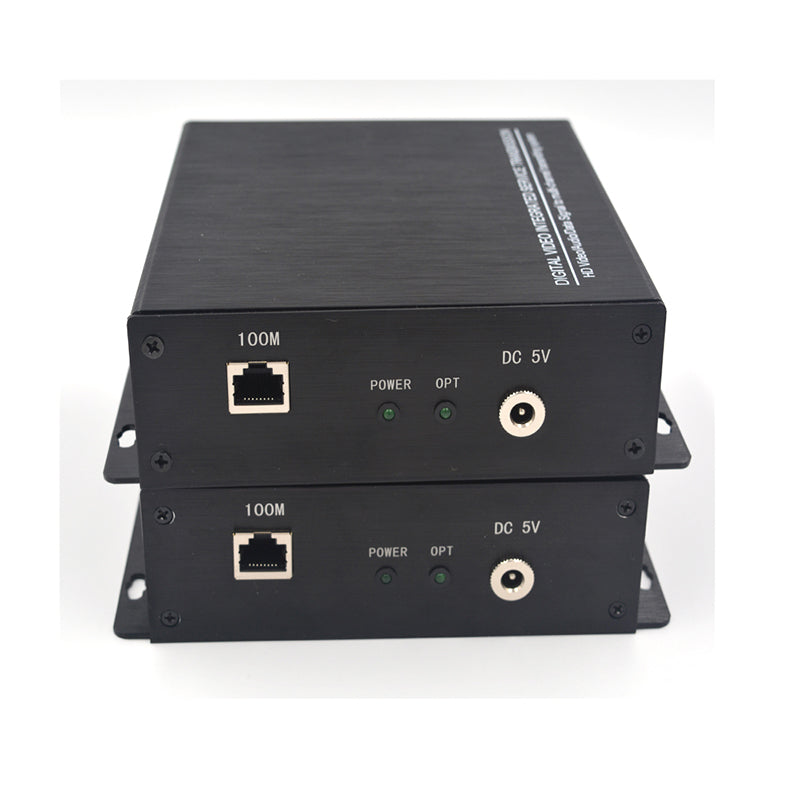

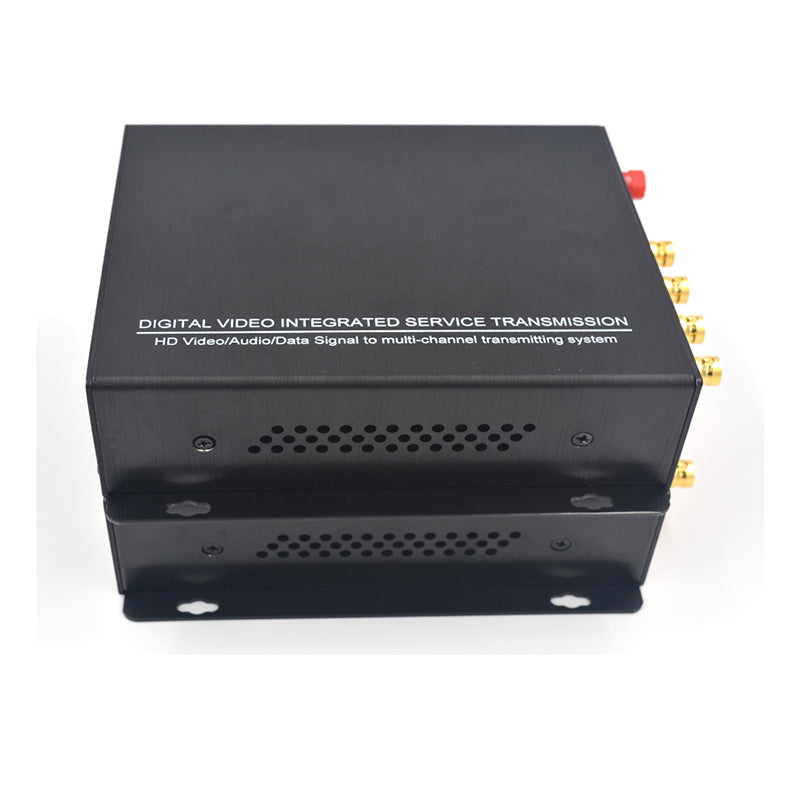

4 channel HD-SDI Video Audio Ethernet over Fiber Converters A Set, Uncompressed FC Singlemode 20Km,Support 1080P 30Hz Max Broadcast professional quality

Description: The units is a broadcast grade real-time high-definition uncompressed professional optical fiber equipment that solves the...
Vendor: Primeda-telecom
SKU: PMD-4xHDSDI-E-FC
Availability: In Stock
Product Type: SDI fiber converters
$999.00
$1,080.00
$999.00
Please hurry! Only 100 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $999.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

4 channel HD-SDI Video Audio Ethernet over Fiber Converters A Set, Uncompressed FC Singlemode 20Km,Support 1080P 30Hz Max Broadcast professional quality

4 channel HD-SDI Video Audio Ethernet over Fiber Converters A Set, Uncompressed FC Singlemode 20Km,Support 1080P 30Hz Max Broadcast professional quality

$1,080.00 $999.00

4 channel HD-SDI Video Audio Ethernet over Fiber Converters A Set, Uncompressed FC Singlemode 20Km,Support 1080P 30Hz Max Broadcast professional quality

$1,080.00 $999.00

Description:

The units is a broadcast grade real-time high-definition uncompressed professional optical fiber equipment that solves the problem of single optical fiber transmission 4 forward HD-SDI video + one 100Mbps network long-distance transmission. Widely used in radio and television, video conferencing, medical teaching, education recording, security monitoring and other industries with high requirements for video.


Function:

  • 4x HD-SDI
  • 1x 10/100Mbps Ethernet
  • FC optical interface.
  • Singlemode fiber up to 20Km



Note: Custom made for Special request is acceptable. Contact us if need.

Features:

  1. Broadcast Radio and television-grade optical fiber uncompressed real-time audio and video transmission equipment.
  2. Single fiber optical transmission, 4 channels of forward HD-SDI (ST/LC optical connector is optional).
  3. Support ASI video signal format.
  4. Support resolution: 1080P@30HZ/25HZ,1080i60HZ/1080i 59.94/50HZ,720P60HZ/50HZ, 576i,480i.
  5. Support signals accord with standards of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI.
  6. Support one 100Mbps Ethernet.
  7. Support long-distance transmission 20 kilometers through a singlemode fiber cable.
  8. Support hot swap.
  9. With clock recovery.
  10. Plug and play, easy to use.


Power supply: AC100V-240V,DC5V 2A (US/EU/UK/AU standard is optional).

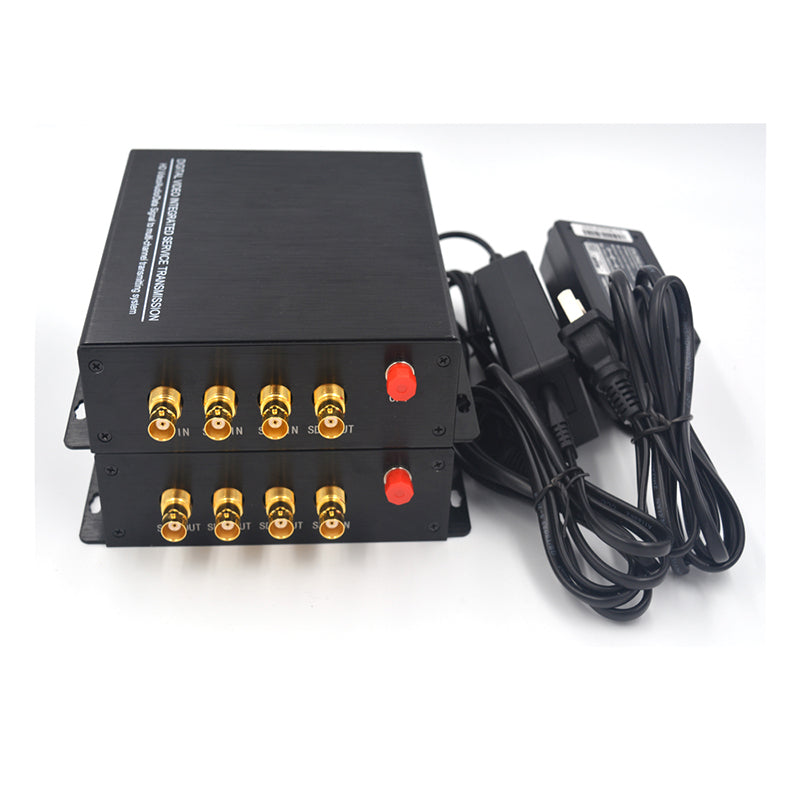

Packing Contents

  1. 1 x HD-SDI Transmitter
  2. 1 x HD-SDI Receiver
  3. 2 x Power Supply adapter
  4. 1x Free 3M FC-FC fiber patch cord.
  5. User manual.



Warranty Policy

In Primeda-telecom, All of our products usually enjoy one year limited warranty. Custom orders can not be returned when they function properly.

If any Primeda-telecom product fails due to a defect in materials or workmanship within limited warranty of original shipment, Primeda-telecom will, at its sole option, repair/replace the product or refund the original purchase price. To access this Limited Warranty, contact Primeda-telecom for a Return Material Authorization number and ship the product to us.

This Limited Warranty is given in line with all other warranties, express and/or implied and to the maximum extent permitted by law, Primeda-telecom disclaims all other warranties, expressed and/or implied, including the warranty of merchantability and fitness for any particular purpose. No employee of Primeda-telecom has the authority to verbally modify this Limited Warranty.

All else not withstanding, acceptance of products from Primeda-telecom, constitutes acceptance of this Limited Warranty.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

FAQ

Q1:What’s your main products?

Primeda-telecom dedicates to the developing, production, marketing of the Fiber Optic communication products, like Video/Audio/Ethernet/Tel/Contact closure over Fiber Exender, FPV optical modules,Fiber cable/connectors/accessories and so on.

Q2.: May I buy samples from you?

You are welcome to place sample order to test our superior quality and services.

Q3.: Can you put my brand name (logo) on these products?

Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4.: How can I get the quotation quickly?

To send your inquiry with detailed requirements to our sales email box or call us. Our sales representative will get back to in 12 hours.

Q5: What’s your best price? Can I negotiate the price?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

Q6.: May I know the status of my order?

Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: Can you provide OEM/ODM service?

Yes, we can. Please give us your requirements, our engineer will make the technical datasheet for your further confirm.

Q8. Do you have distributor in other country?

Until now, we sell our products to customers directly. And factory price could be offered.
