Description:
The SDI to AV scaler converter allows HD-SDI and 3G-SDI signals to be shown on CRT or HDTV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on TV thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and AV at the same time.
Features
Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s
Equalized and re-clocked loop output
Auto video mode detection (3G/HD/SD)
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances
Simultaneous display with SDI /AV signals
Alternative audio output to analog 2CH
Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

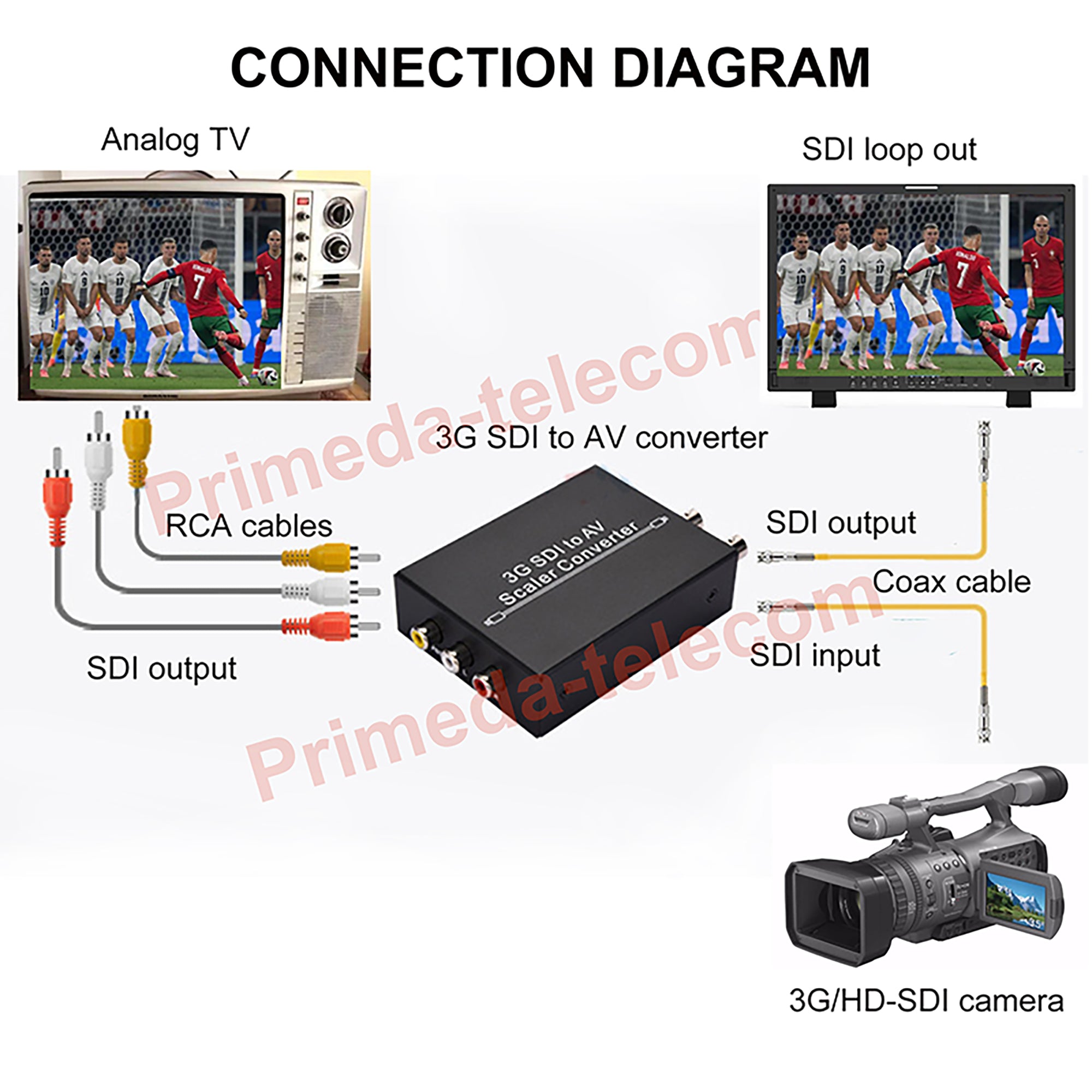

Application Example

Specifications
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates 2.970 Gbit/s
SDI in/out Resolution HD:720p@50/60, 1080i@50/60
3G:1080p@24/25/29.97/30/50/59.94/60
CVBS Output Resolution PAL/NTSC
Input Port 1 x BNC (HD/3G-SDI)
Output Port 1 x BNC (HD/3G-SDI), 3 x RCA (CVBS,L/R)
Power Supply DC 5V
ESD Protection Human body model ±8kV (air-gap discharge) ,
±4kV (contact discharge)
Dimension 92mm x 67mm x 25 mm
Weight 180g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W

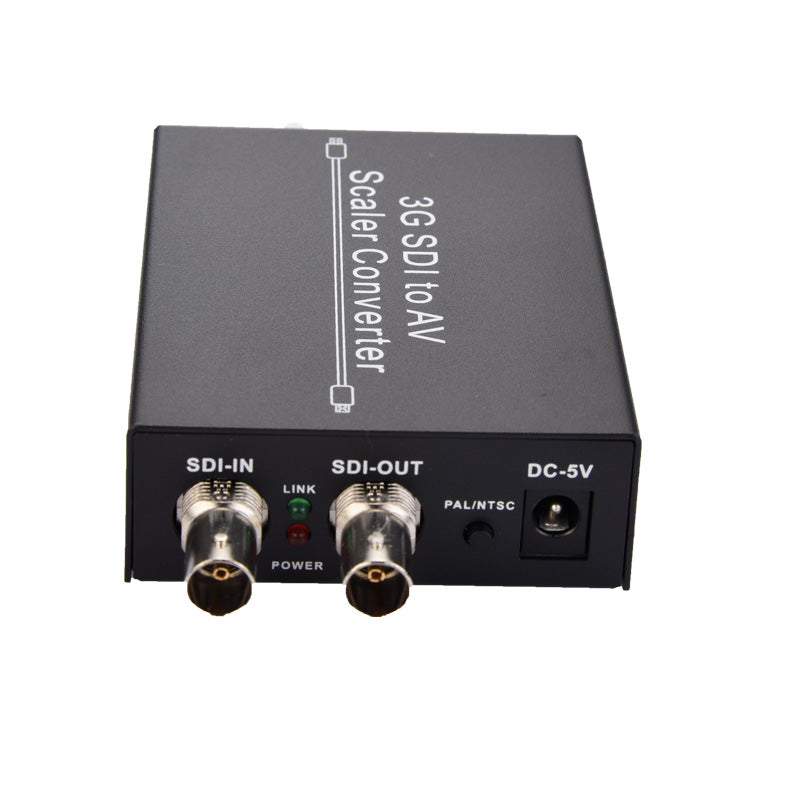

Operation controls and Fuctions

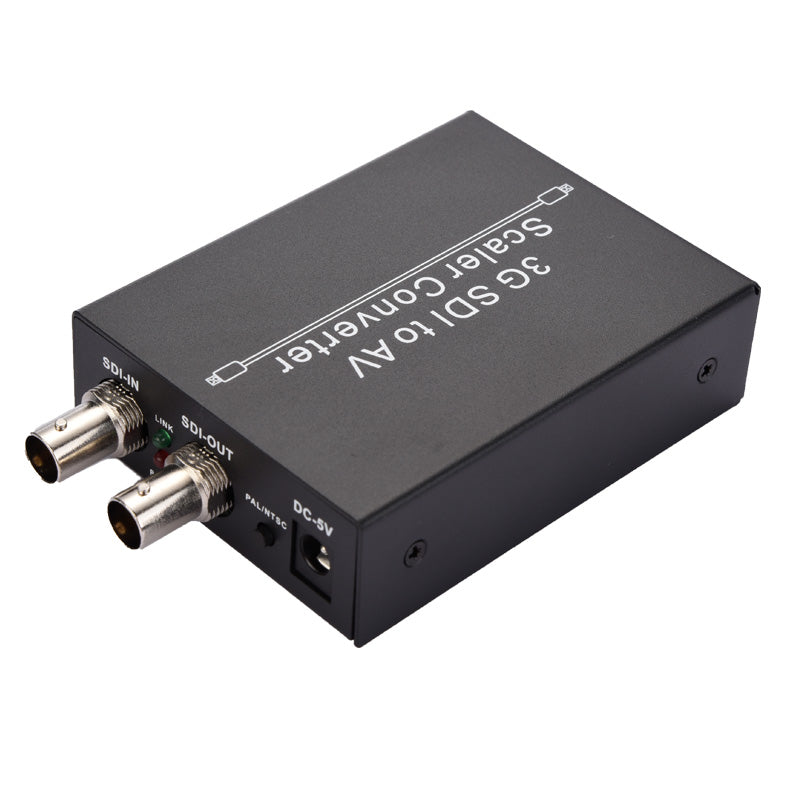

SDI-IN: This slot is where you connect the SDI source output for SDI signal sending to be display on screen.
SDI-OUT: This slot is where you connect the SDI display with SDI cable for input source display.
LINK: This green LED will illuminate when the device is connected with SDI signal.
POWER : This red LED will illuminate when the device is connected with power supply.
PAL/NTSC: Press this button to select PAL or NTSC.
DC-5V: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.

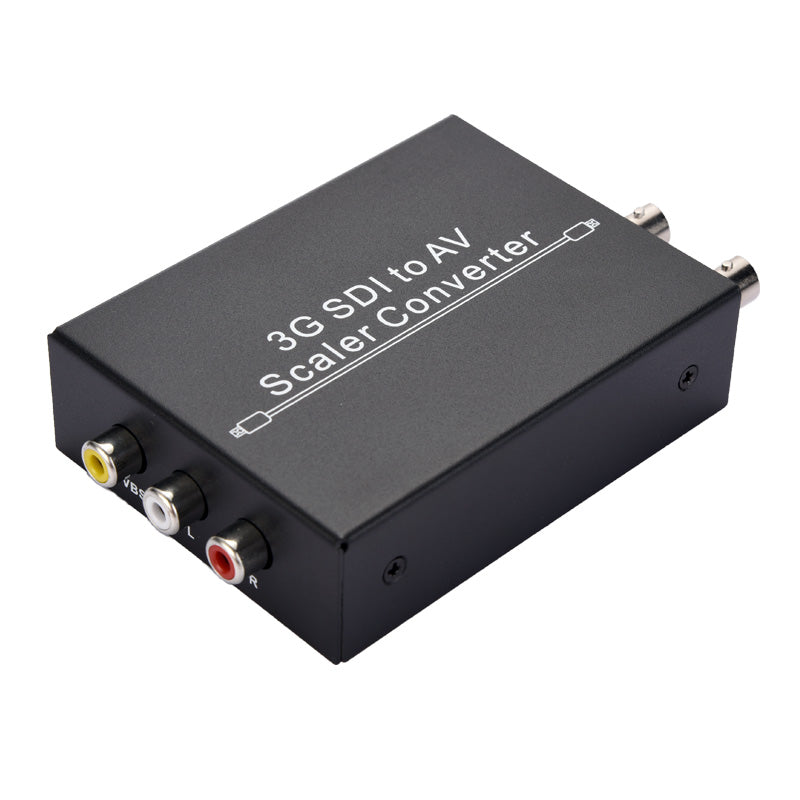

CVBS L R: This slot is where you connect the TV with RCA cable.

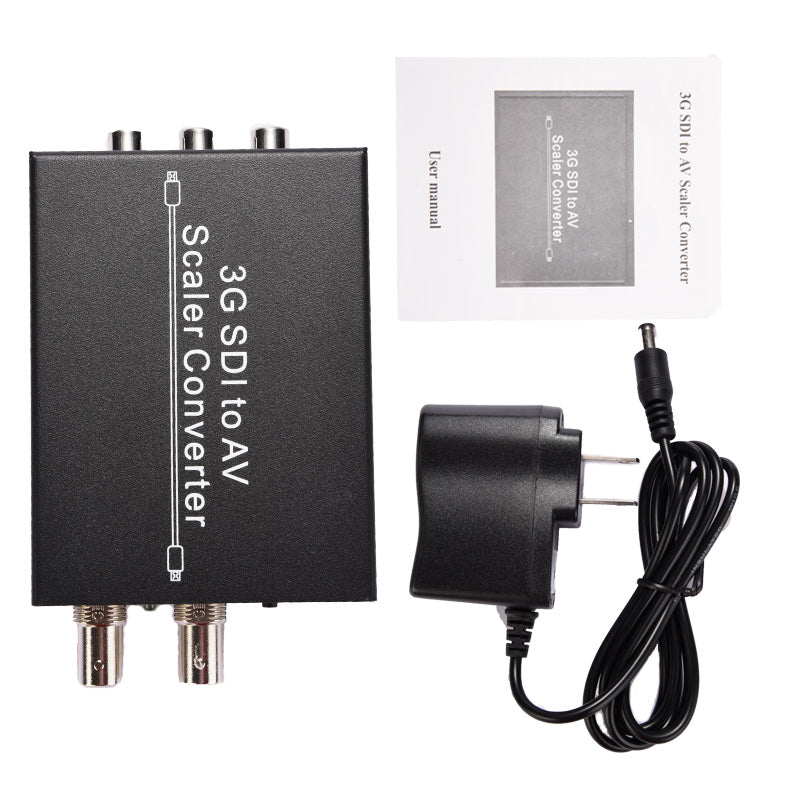

Package
1X3G SDI to AV Converter
1X 5V DC Power Supply Adaptor
