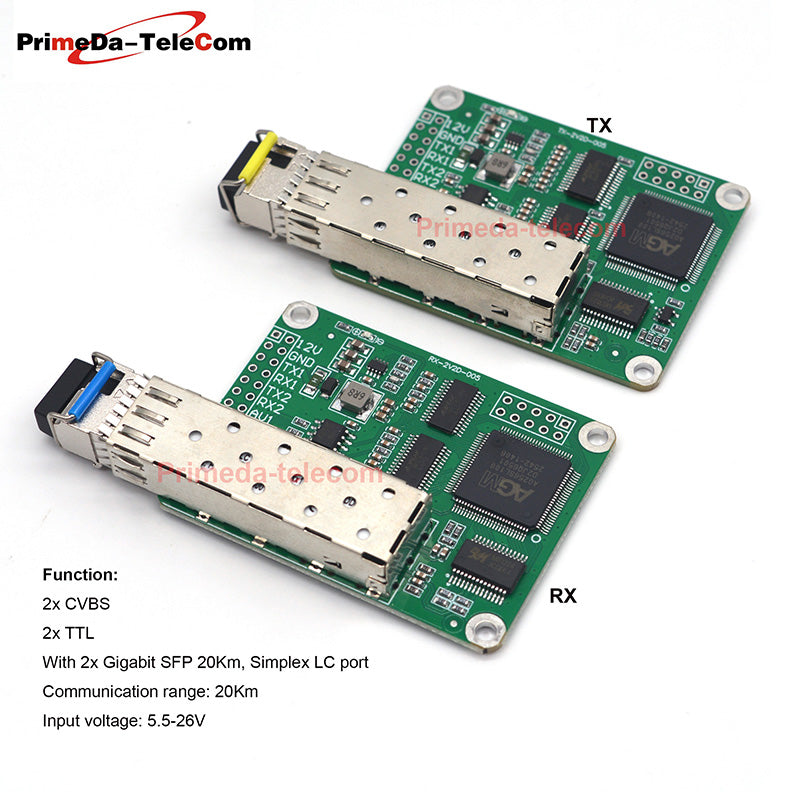

2 CVBS Video 2 TTL over Fiber Optical Transceiver Module Controller for FPV drones 1.25G SFP 20Km TX 1310 RX 1550nm

Description: The Video TTL optical module is developed for UAV signal transmission system with 2 channel cvbs...
Vendor: Primeda-telecom
SKU: PMD-2V2TTL-20Km-N
Availability: In Stock
Product Type: Analog video fiber converter
$52.00
$68.00
$52.00
Please hurry! Only 1000 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Model: without SFP
Subtotal: $52.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

2 CVBS Video 2 TTL over Fiber Optical Transceiver Module Controller for FPV drones 1.25G SFP 20Km TX 1310 RX 1550nm

2 CVBS Video 2 TTL over Fiber Optical Transceiver Module Controller for FPV drones 1.25G SFP 20Km TX 1310 RX 1550nm

$68.00 $52.00

2 CVBS Video 2 TTL over Fiber Optical Transceiver Module Controller for FPV drones 1.25G SFP 20Km TX 1310 RX 1550nm

$68.00 $52.00
Model: without SFP

Description:

The Video TTL optical module is developed for UAV signal transmission system with 2 channel cvbs video and 2 channel high speed TTL level signal. The device has the features of safety and reliability, stable performance, overall light weight, cost-effective and so on.

Application Scenario: FPV remote control, emergency rescue communication, power line inspection, border patrol monitoring, tunnel/underground pipeline inspection and more



Product features:

1.Long communication distance up to 20Km/40Km/60Km/80Km/100Km transmission by an optical fiber cable, Zero loss of long-distance signal, suitable for FPV control.

2.Wide voltage power supply 5.5-26V: compatible with a variety of batteries to ensure stable work, suitable for drones.

3.Lightweight design: compact size, reducing the burden on equipment and improving flight efficiency.

4.Dual-wavelength fiber optic communication: 1310nm at the sky end and 1550nm at the ground end, guaranteeing the signal transmission quality.

5.Multiple indicator monitoring: power, fiber optic, video, data status indication can monitor the operating status of the system.



Specification:

Product Name: Video TTL Optical Transceiver Module

Power Supply: DC 5.5-26V (2S-6S battery)

Power Consumption: ≤5W

Communication Interface: SFP port

Fibre Optic Interface: LC or SC SFP

Communication distance: Max. 20Km/40Km/60Km/80Km/100Km

LED Indicator Lights: Power Indicator, Fiber Optic Indicator, Video Signal Indicator, Data Indicator

Board Size: 60x40x12mm(LxWxH)

Net weight: 45g/pair (without SFP). 80g/pair(with sfp)



Precautions:

1. Please note that the power supply voltage should not exceed 26V, otherwise there is a risk of burnout.

2. Please take note that the minimum voltage should not be less than 5V, otherwise the chip of the board may not work properly.



Package include:

1x TX/1310nm optical module

1x RX/1550nm optical module
