Description

Description:

The PCM telephone Optical ASIC devices are developed by our company independently develop and produce PCM telephone service products. The device to LSI and programmable logic chip as the core, then the intersection constitute (FXS), switch port (FXO), Ethernet, and other interface PCM integrated access products.

High quality design, Anti-interference ability, built-in lightning protection,long working life.

Defualt ship single mode up to 20Km, if need multi-mode up to 2Km , contact us before order.





Feature：

  1. Extend your POTS Phones and Network: 2 Independent telephone lines + 1 Fast Ethernet (10/100 Mbit/s) port over same Single mode or Multimode fiber cable
  2. Universal for Both Fiber Types: Same media converters can supports Single-mode fiber for a long distance up to 20 km(12miles) and Multimode fiber for a distance up to 500m(0.31miles), wavelength 1310/1550 nm
  3. You can setup a POTS phone line and a Fax machine and extend the phone line over fiber. The fax machine connected to the receiver device was able to receive and transmit faxes on POTS lines over the fiber without issues or errors.
  4. High quality design, Anti-interference ability, built-in lightning protection,long working life
  5. Plug and Play, No setup or configuration needed, very easy to use











Technical Specifications:

1. Voice Bandwidth: 8KHZ

2. Codec: PCM codec, each voice channel 256Kb / S, in line with ITU-T G.711

3. Signaling Control: Transparent support any in-band signaling, in line with ITU-T G.732

4. Interface communication terminals: ordinary telephone or PBX, PBX (PBX), a public telephone line PSTN network

5. Connection: point-phone hotline, telephone and switch mode

6. Ringing voltage: 75V, ringing frequency: 25HZ / 50Hz (FXS)

7. Return loss: 40 db

8. Ring Detection Voltage: 35V

9. Ring Detection Frequency: 17HZ-60HZ

10. Impedance: 200Ω + 680Ω || 0.1μF (FXO) ; 200Ω + 560Ω || 0.1μF (FXS)

11. Power consumption: less than 6W

12. Telephone Interface Type: RJ11

13. LAN Interface: 10 / 100BASE-T RJ45 connector

14. Fiber Interface Type: single-FC type connector

15. Transmission distance: single-mode 0-20KM,multimode 0-2Km (optional)

16. Optical Line Rate: 155MHZ

17. Optical transmission power: not less than -14dBm

18. Light-receiving sensitivity: better than -36dBm

19. Working voltage: DC 12V 1A

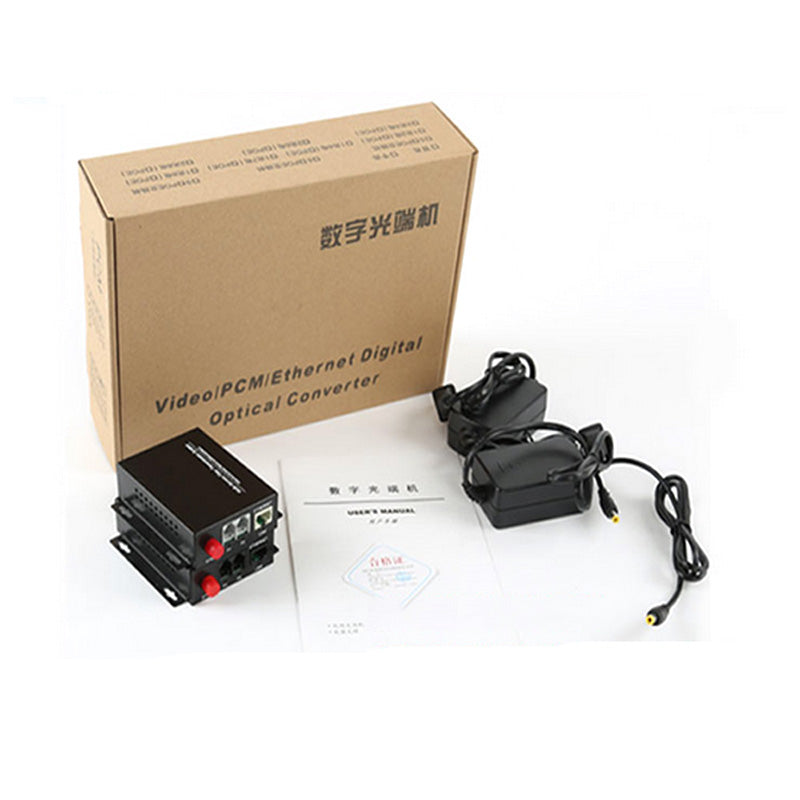

Package include:

1x Telephone to Fiber Transmitter

1x Telephone to Fiber Receiver

2 x External Power supply adapters

1 x User manual
