16 port Analog Video Fiber Optical Media Converters with RS485 PTZ -Singlemode and Multimode A set

Description: This unit is 16 channels video over Fiber extenders, with RS485 reverse data for PTZ ....
Vendor: Primeda-telecom
SKU: PMD-16V1D-FC-SM
Availability: In Stock
Product Type: Multifuctional Video Audio Fiber Converters
$109.00
$129.00
$109.00
Please hurry! Only 100 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
样式: Singlemode up to 20Km
Subtotal: $109.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

16 port Analog Video Fiber Optical Media Converters with RS485 PTZ -Singlemode and Multimode A set

16 port Analog Video Fiber Optical Media Converters with RS485 PTZ -Singlemode and Multimode A set

$129.00 $109.00

16 port Analog Video Fiber Optical Media Converters with RS485 PTZ -Singlemode and Multimode A set

$129.00 $109.00
样式: Singlemode up to 20Km

Description:

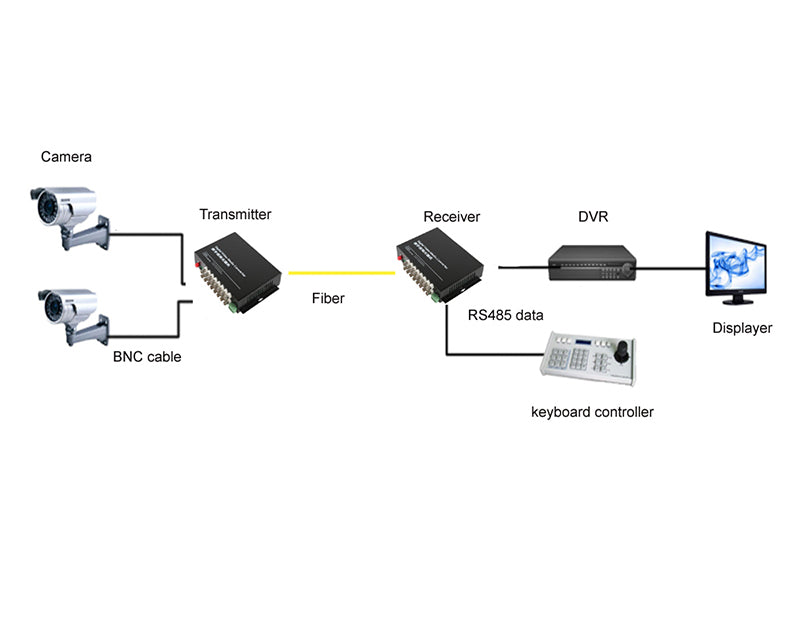

This unit is 16 channels video over Fiber extenders, with RS485 reverse data for PTZ . It works with Multi Mode cable or work with singlemode (Optional), the transmission distance up to 1.5Km for single Multi Mode fiber, up to 20Km for single singlemode fiber cable (Optional)



Features

  1. 8-bit or digitally encoded and non-compression video transmission
  2. Compatible with NTSC, PAL, and SECAM CCTV camera systems (Not support HD CVI/TVI/AHD camera)
  3. Power supply and other parameter state indication, which can monitor the operation condition of system
  4. Support no-damage regenerative trunk of video
  5. Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
  6. Industry-grade of operating temperature from -10 degree C to 75 degree C, which is applied to the different working environment
  7. up to 1.5KM by multimode fiber.  or up to 20Km by singlemode fiber (optional)
  8. Plug and play ,easy to use.


Specification


Optical:

  1. Optic fiber: 62.5/125u Multimode or 9/125u singlemode
  2. Optical connector: FC
  3. work distance: up to 1.5KM by multimode fiber. up to 20Km by singlemode fiber (optional)
  4. Single(Simplex) Fiber



Video:

  1. Number of Channels: 16
  2. Input/output impedance:  BNC 75 ohm (unbalance)
  3. Video bandwidth: 5HZ to 8MHZ
  4. Standard video input/output voltage: 1.0Vp-p
  5. Video voltage range:  0.6 to 2.0Vp-p
  6. Differential Gain:   < +/- 1.5%
  7. Differential Phase:   < +/- 1%
  8. SNR:  >60dB (8 bit)
  9. Connector:  BNC
  10. Operating Voltage: DC 5V
  11. Operating Temperature : -10 degree C to +75 degree C
  12. Storing Temperature : -40 degree C to +85degree C
  13. Humidity: 0 to 95% Non-condensing
  14. MTBF: >= 100000Hours


Data:

  1. RS-485 (reverse direction,PTZ cameras controllable)
  2. Transfer Rate : 400Kbps
  3. Error rate : less than 10 square minus 9


Packing Contents

  • 1 x 16 ch Video Fiber Transmitter
  • 1 x 16 ch Video Fiber Receiver
  • 2 x Power Supply adapters
