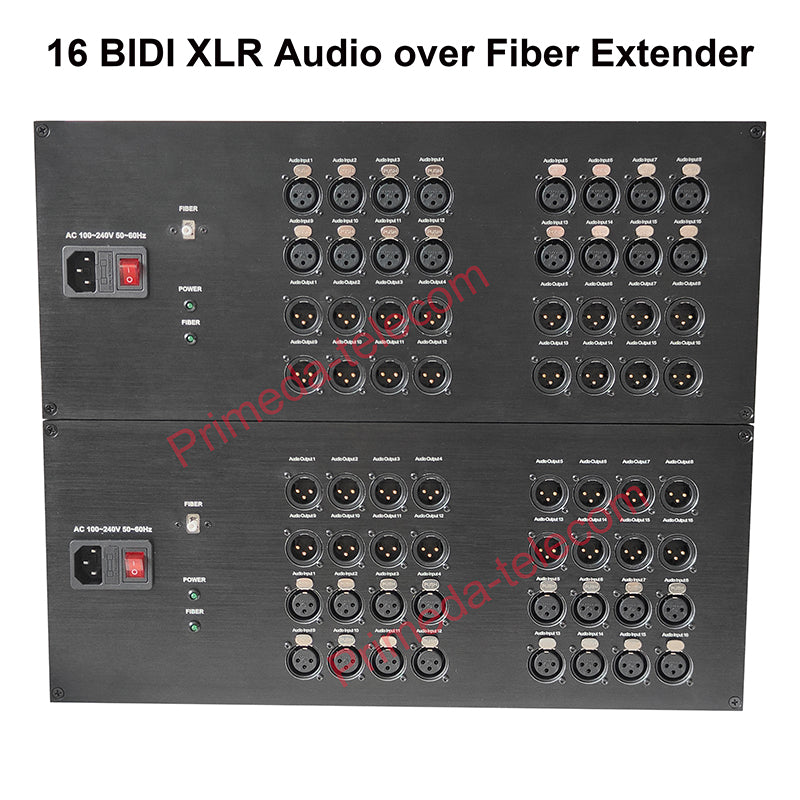

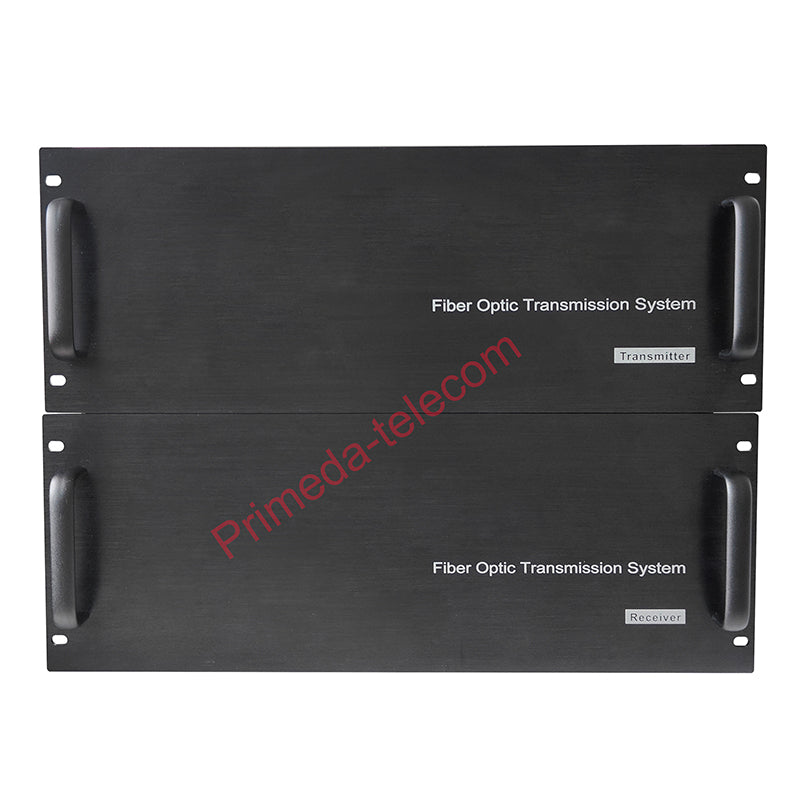

16 Bidirectional XLR Balanced Audio Over Fiber Optic Extender 4U Rack mount- Singlemode Fiber up 20Km LC SFP Include Uncompressed No delay Professional grade Crystal Clear Sound

 Professional High Quality 4U Rack mount, Zero latency Crystal Clear Sound

Feature:

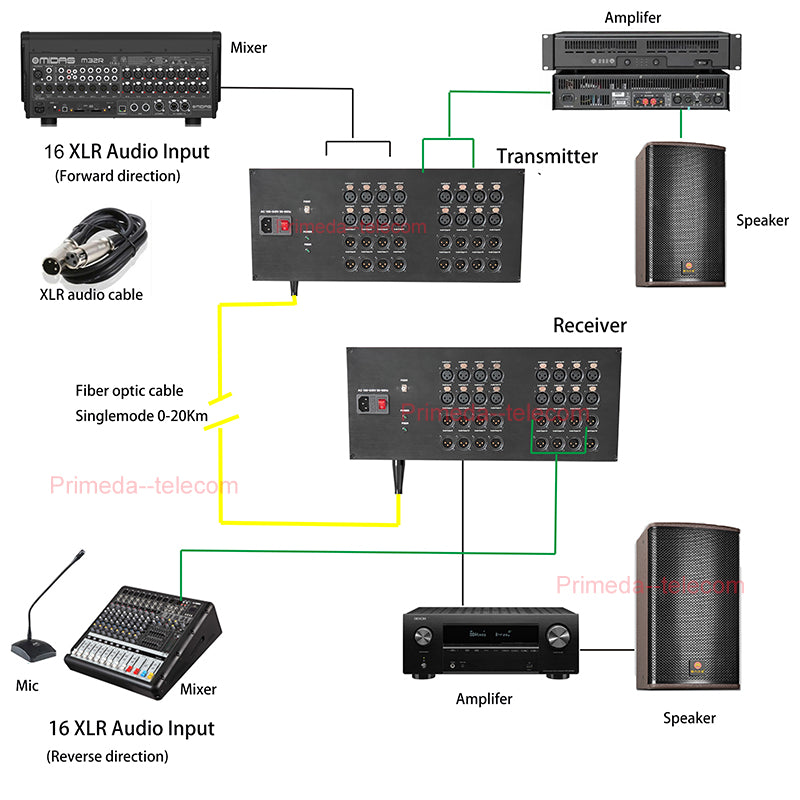

【XLR Audio over Fiber】The audio over fiber extender can extend 16 channel bi-directional balanced 3 pin XLR broadcast high grade Audio over fiber optic cable to far end. It allows 16 XLR audio device synchronous transmission, No debugging required. 16 XLR Audio signal is transmitted from T (TX) in the direction of R (RX), other 16 XLR Audio signal is transmitted in reverse direction, 4U Rack mount type.

【Long Transmission range】It can work on both single-mode and multi-mode fiber cable. Long transmission distance: Single mode up to 12.4 miles (20Km), ,multi-mode single fiber up to 1640FT(500meters)

【Crystal clear sound, No Loss, No Delay】 Professional quality ,Pure and Clean fiber optic audio signal transmission

【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations

【Plug and Play】No need to set up ,Plug and play. Simply plug in an Optical LC port and XLR audio connectors at TX and RX sides, it will have crystal clear sound instantly

Attention:

The XLR audio fiber extender signal can be outputed to the power amplifier, but the power amplifier audio source can not output the audio source signal to the fiber extender, otherwise the fiber extender will be burned.

We suggest that user use the short optical fiber cable to do first time test to ensure that all the functions of the equipment are normal, and then do long-distance transmission.

Optical Port:
Optical connector: LC (FC/SC/ST is optional, Contact us if needed)
Wavelength: 1310nm and 1470nm~1610nm (selected according to the function of the device).
Transmitting optical power: more than -7db.
Receiving sensitivity: more than -24db
Fiber: single fiber multi-mode (MM) or single-mode (SM).
Transmission range: 0-20km for SM, 0-500m for MM.
Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.

XLR Audio Ports:
Number of Channels:16 bi-directional
Audio physical interface：
Transmitter: XLR connector and 6.5mm audio line (dual use).
Receiver: XLR connector
Signal level：0-8Vp-p
Dynamic bandwidth：101 dB
Total harmonic distortion (THD)：-90 dB
Frequency of sampling：192 KHz
Audio A / D sampling：24 Bit
Noise-signal ratio (SNR)：100 dB
Amplitude-frequency characteristic：≤±0.5 dB
Audio input / output impedance ：And 600 Ω in equilibrium
Audio maximum input / output voltage：0~4V /0~2.5V
Audio gain：±0.1 dB
Maximum input level: ≥9.5 dBm
Nonlinear distortion: ≤0.2%
Audio interface level III lightning protection, reaching IEC61000-4-5 (8/20μs) Differential mode: 6KV.

General Spec:
Working temperature: -20°C ~ +70°C.
Storage temperature：-40 to 80°C
Relative humidity:5 to 95% (non-condensing)
Working life: more than 1,0,000,000 hours
Support wide range working Voltage: AC100-240V 50/60Hz
Power cable ：US/EU/UK/AU standard is optional.

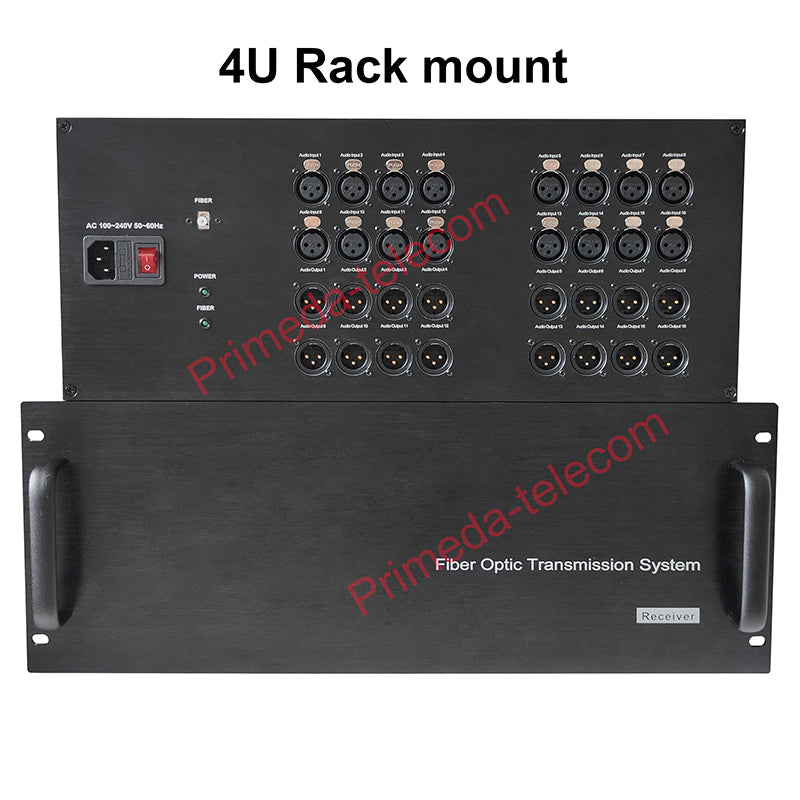

Dimension: 4U rack mount

Package include:
1x Balanced XLR Audio Fiber Transmitter
1x Balanced XLR Audio Fiber Receiver
2x Power supply adapter (US standard)
1x FREE 3M Fiber patch cord
1x Manual.
