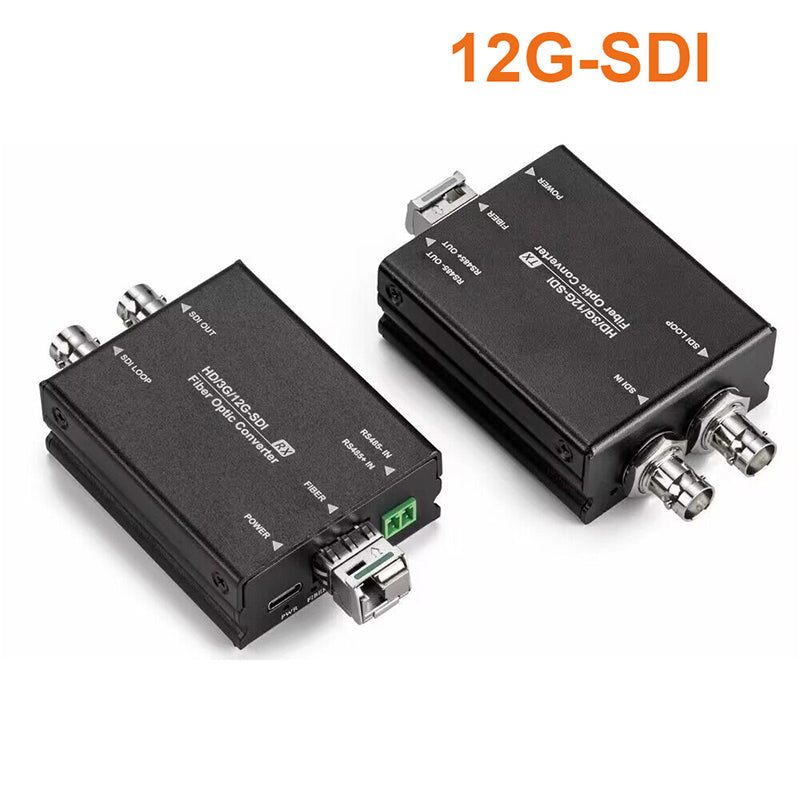

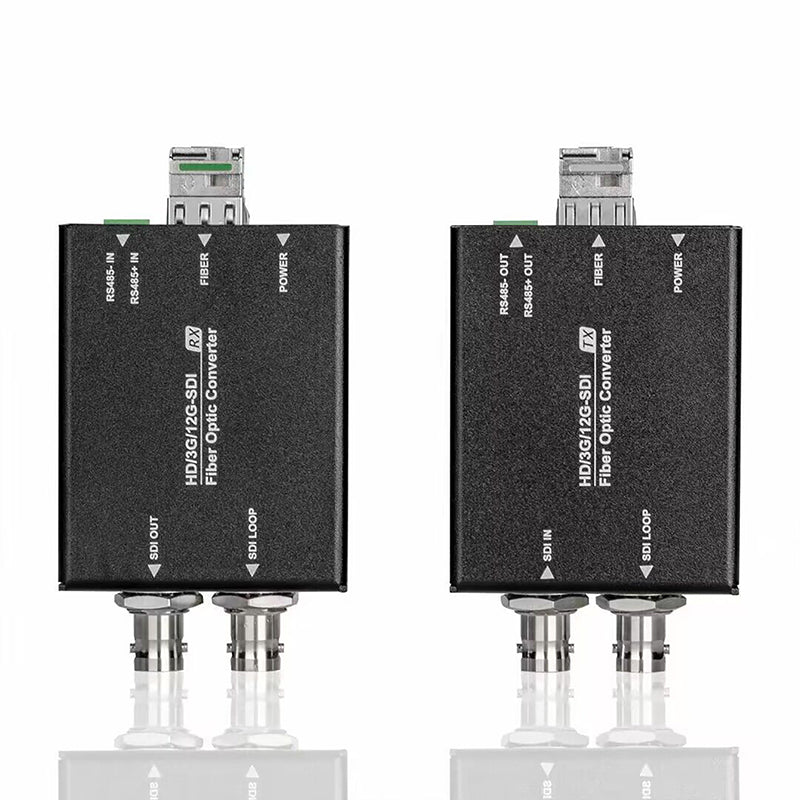

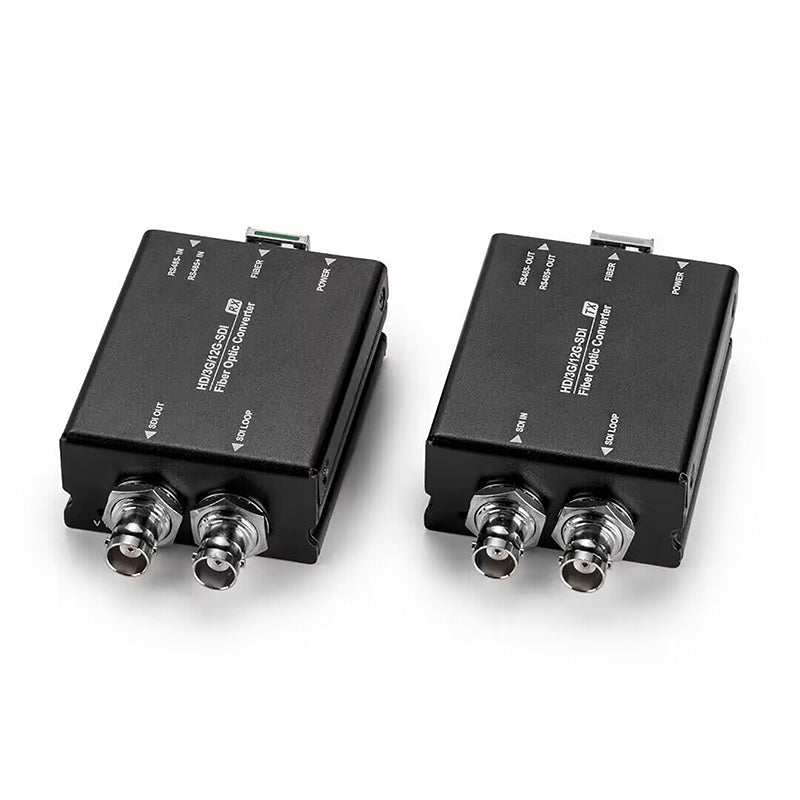

12G-SDI Video to Fiber Optic Converters, SFP include, Singlemode up 20Km,Compatible 6G-SDI,3G-SDI,HD-SDI, For UHDTV 4K 8K HDTV Video
Application SMPTE compatible with serial digital interface UHDTV / 4K / 8K / HDTV / SDTV...
- $459.00
$520.00- $459.00
- Unit price
- per
Please hurry! Only 100 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Fast Shipping
Estimated standard delivery time 7-12 days. Express 5-7 days
Free Returns
Learn More.
Built And Shipped Within 1-3 Days
Application
- SMPTE compatible with serial digital interface
- UHDTV / 4K / 8K / HDTV / SDTV video
- IP media gateway
- Digital video processing and editing
Features
- Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI).
- Support single-mode single-fiber transmission distance up to 20km(12.4Miles).Support RS485 reverse directional data. (RS485/Tally is optional, Contact us if need).
- Both transmitter and receiver have clock recovery function which the clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock. Much better than ordinary quality from other brand.
- The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps.
- Signal input has automatic cable equalization (EQ) function, output has drive (CD) function;
- Plug and play, the equipment power consumption is less than 1.5W, the Type-C port is used for power supply, support USB power supply system, which is flexible in use.
|
|
|
|
Transmission distance |
Single-mode fiber, 20km(12.4 Miles) max |
|
SDI index |
|
|
Protocol standard |
SMPTE ST-2082 |
|
SMPTE rate |
270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s,11.88Gbit/s |
|
Support standard |
SMPIE 259MSD-SDI480i，576i |
|
SMPIE 344MED-SDI480P, 576P |
|
|
SMPIE 292MHD-SDI720P, 1080i |
|
|
SMPIE 424M3G-SDI1080P60Hz |
|
|
SMPIE ST-20816G-SDI2160P30Hz |
|
|
SMPIE ST-208212G-SDI2160P60Hz |
|
|
EQ mode cable transmission distance |
75m at 11.88Gbps |
|
120m at 5.94 Gbps |
|
|
200m at 2.97 Gbps |
|
|
300m at 1.485 Gbps |
|
|
600m at 270Mbps |
|
|
Signal amplitude |
800mV±10% |
|
Impedance |
75Ω |
|
Connctor |
The |
|
RS485 data index |
|
|
Standard |
Compliance |
|
Transmission mode |
Synchronous transmission |
|
Baud rate |
50bps to 520 |
|
RS485 |
2-wire (A, B), half-duplex, |
|
Physical interface |
Industrial |
|
RS485 circuit index |
|
|
RS-485pull-up resistance/pull-down resistance |
4.7 kΩ，4.7 |
|
RS-485 terminal resistance |
N / A, 120 |
|
Tally signal index |
|
|
Level type |
TTL（5V）/LVTTL(3.3V) |
|
Input level range |
3.3V~12V |
|
Output level parameters |
0V or 3.3V |
|
Default state |
No-voltage |
|
Physical interface |
Industrial |
|
Power index |
|
|
Input current |
≦300MA |
|
Input voltage |
5V |
|
Overload current protection |
Support |
|
Power supply physical interface |
Type-C |
|
Power consumption |
<1.5W |
|
Mechanical index |
|
|
The shell metal |
Aluminum alloy |
|
Product size |
100 x 55 x 25 (mm) |
|
Net weight of product |
0.6kg /Sets |
|
Packing |
|
|
Material |
Kraft |
|
Package size |
210*160*46mm |
|
Gross weight |
0.5kg |
|
Parts |
USB charging head * 2, Type-C power cable * 2, User’s manual * 1, |
|
Working environment |
|
|
Working temperature |
-20°C ~+75°C |
|
Storage temperature |
-40°C ~+85°C |
|
Relative humidity |
5 to 95% |
|
MTBF |
> |
