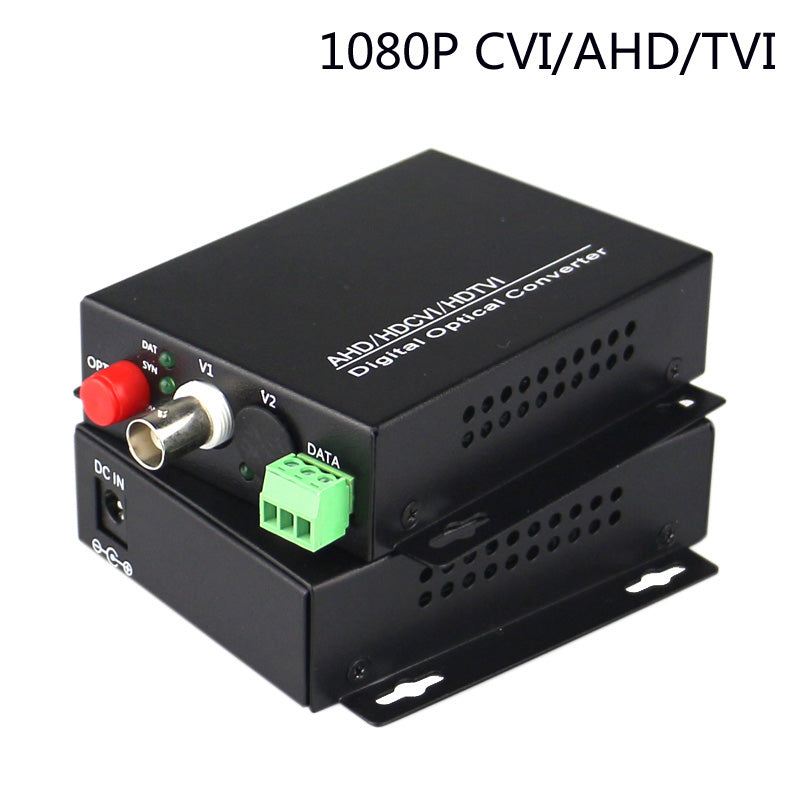

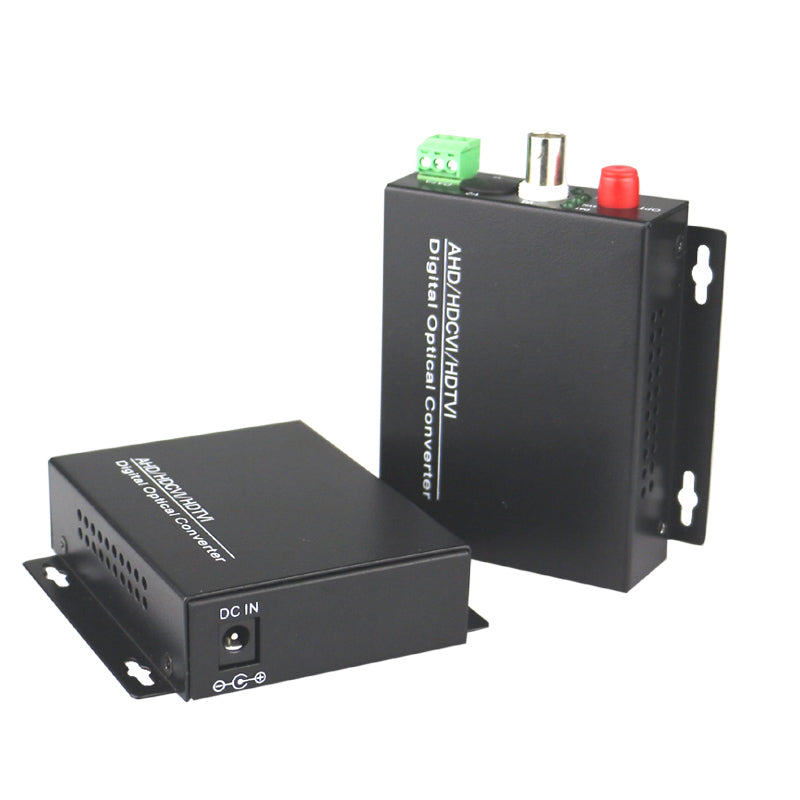

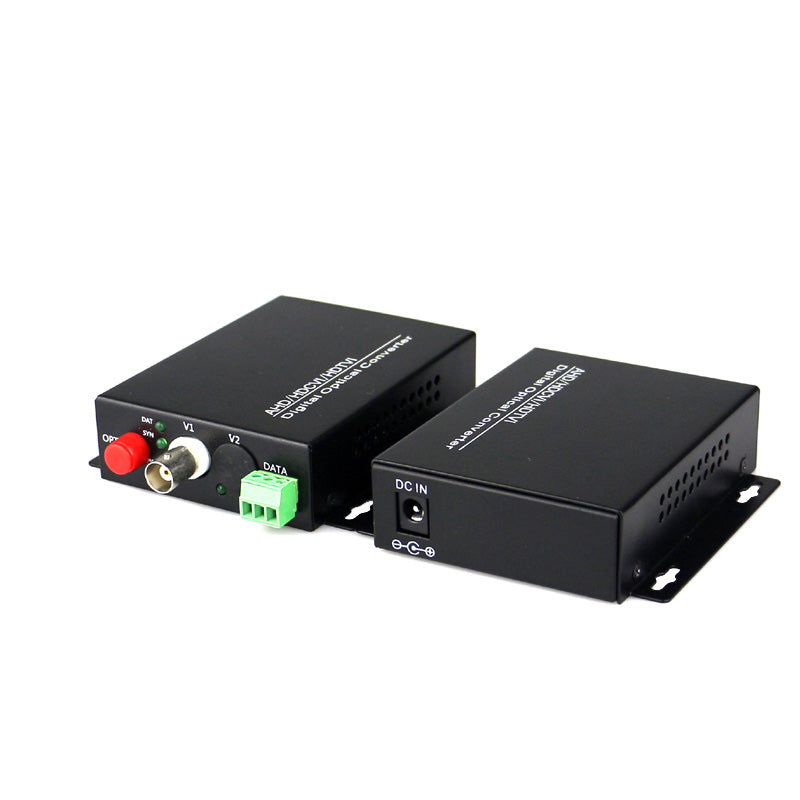

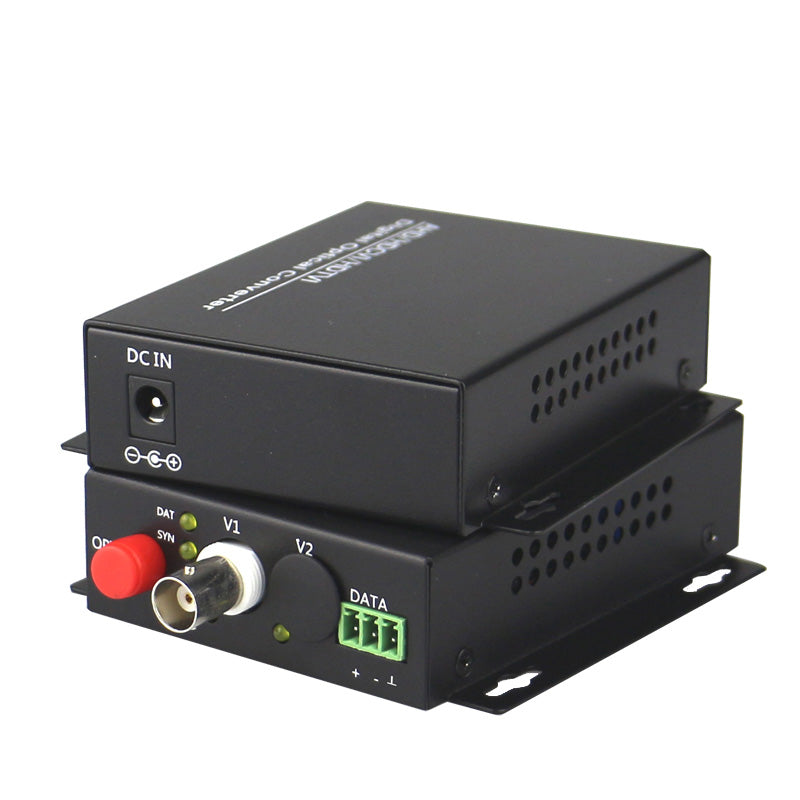

1 port HD Video fiber converters A set, Fiber video extender Uncompressed FC Remote Singlemode up 20Km, support 2MP 1080p HD TVI CVI AHD and analog Cameras

1 port HD Video fiber converters A set, Fiber video extender Uncompressed FC Remote Singlemode up 20Km, support 2MP 1080p HD TVI CVI AHD and analog Cameras

$72.00 $58.00

1 port HD Video fiber converters A set, Fiber video extender Uncompressed FC Remote Singlemode up 20Km, support 2MP 1080p HD TVI CVI AHD and analog Cameras

$72.00 $58.00
样式: with RS485 data

Support camera type:

  • CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)

  • AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)

  • TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720).

  • Analog camera with PAL, NTSC, SECAM format



Feature:

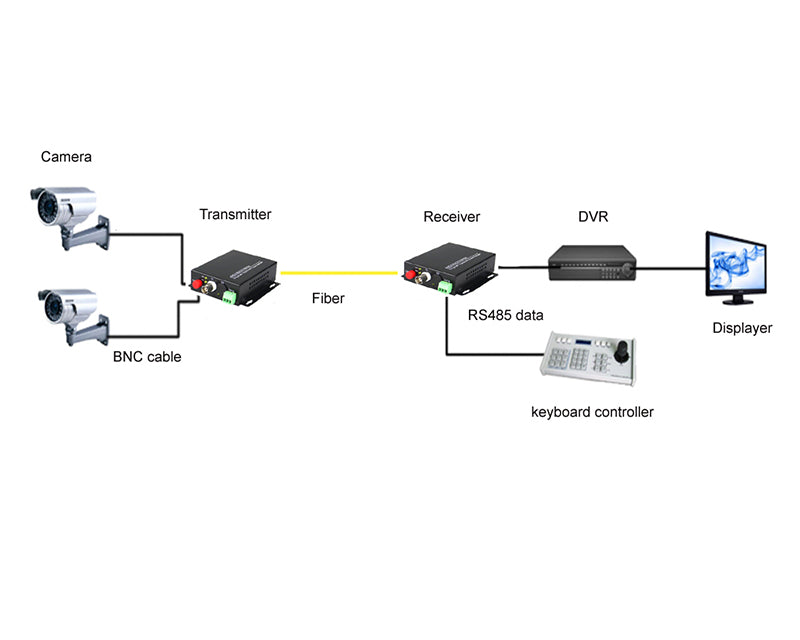

  1. This item can extend 1 channel of 2MP(1080P) HD Video signal through a fiber optic cable to remote display. Long transmission distance up to 20Km by single-mode fiber. Uncompressed real-time transmission.

  2. Applicable for 2MP HD TVI/CVI/AHD Cameras and compatible with 960P/720P TVI/CVI/AHD and ordinary analog camera

  3. Suitable fiber type: universal Single-mode. Equipped with FC optical connector. With RS-485 reverse data (Optional) which can remotely control PTZ.

  4. LED indicators can dynamic feedback link connection state and fault detection to easily monitor network status.

  5. Plug and Play, No need to set up.

Optical:
1. Optical connector:  FC
2. Fiber type: universal single mode, single fiber.
3. Working distance: single-mode single fiber 0-20Km.



Video Index:

  1. Video : 1 channel

  2. Video Interface: BNC

  3. Support 1280H and 1920H HD video format

  4. Support 1280×720, 1280×960,1920×1080 @25Hz, @30Hz,@50Hz,@60HZ

  5. Support 1280H/25f,1280H/30f,1280H/50f,1280H/60f,1920H/25f, 1920H/30f HD format

  6. Coaxial cable transmission length: 1080p up to 300meters.720p up to 500meters

  7. Video Input / Output Impedance : 75ohm ( unbalanced ) ;

  8. Video Bandwidth 100MHz;

  9. Video format compatible PAL, NTSC, SECAM;

  10. The sender input level: > 500mVp-p

  11. The receiver output level: 1Vp-p

  12. Input and output impedance: 75 ohm

  13. The receiver rise and fall times:<0.8ns

  14. The receiver maximum jitter:<0.2 UI



General index

  1. Power Adapter: 12V1A

  2. Working temperature: -40 ~ + 85 degree

  3. Storage temperature: -40 ~ + 85 degree

  4. Humidity: 0 ~ 95% non-condensing

  5. Mean Time between failures: ≥100,000 hours



Package list:
1 x Video fiber Transmitter
1 x Video fiber Receiver
2 x External power adapters
1 x User manual
