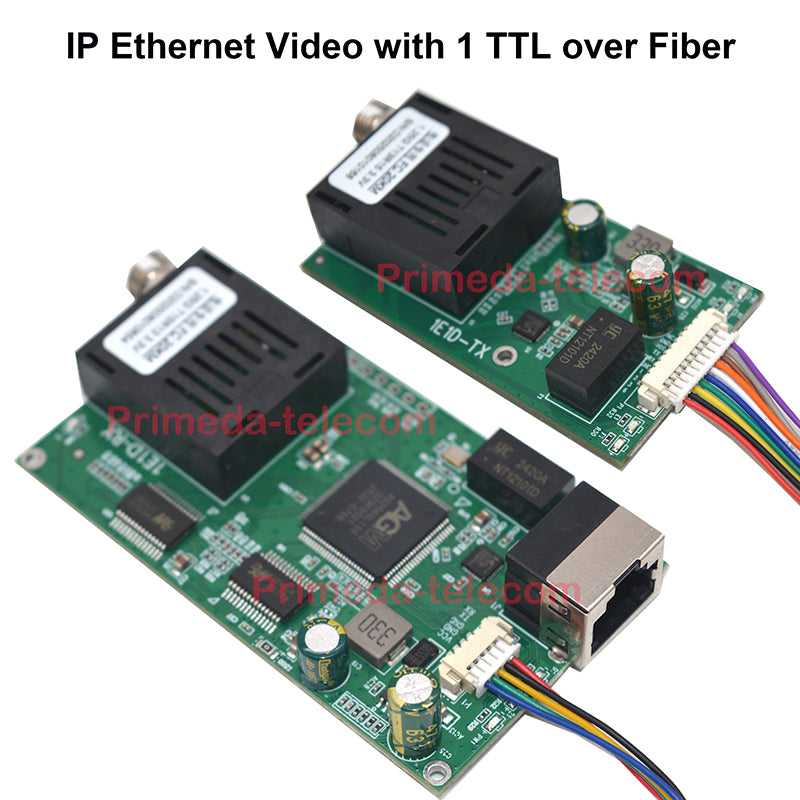

1 IP Ethernet Video with 1 TTL data Over Fiber Optic Converter digital TX 1310nm/RX 1550nm , FC Singlemode Fiber 20km 40km,60km, High Speed TTL up 460Kb/S, Anti-interference

Product Function 1x 10/100Mbs Ethernet 1x TTL (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)...
Vendor: Primeda-telecom
SKU: PMD-1IP1TTL-FC-20Km
Availability: In Stock
Product Type: Analog video fiber converter
$59.00
$65.00
$59.00
Please hurry! Only 60 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Transmission range: 20Km
Subtotal: $59.00
10 customers are viewing this product

Fast Shipping

Estimated standard delivery time 7-12 days. Express 5-7 days

Free Returns

Learn More.

Built And Shipped Within 1-3 Days

1 IP Ethernet Video with 1 TTL data Over Fiber Optic Converter digital TX 1310nm/RX 1550nm , FC Singlemode Fiber 20km 40km,60km, High Speed TTL up 460Kb/S, Anti-interference

1 IP Ethernet Video with 1 TTL data Over Fiber Optic Converter digital TX 1310nm/RX 1550nm , FC Singlemode Fiber 20km 40km,60km, High Speed TTL up 460Kb/S, Anti-interference

$65.00 $59.00

1 IP Ethernet Video with 1 TTL data Over Fiber Optic Converter digital TX 1310nm/RX 1550nm , FC Singlemode Fiber 20km 40km,60km, High Speed TTL up 460Kb/S, Anti-interference

$65.00 $59.00
Transmission range: 20Km

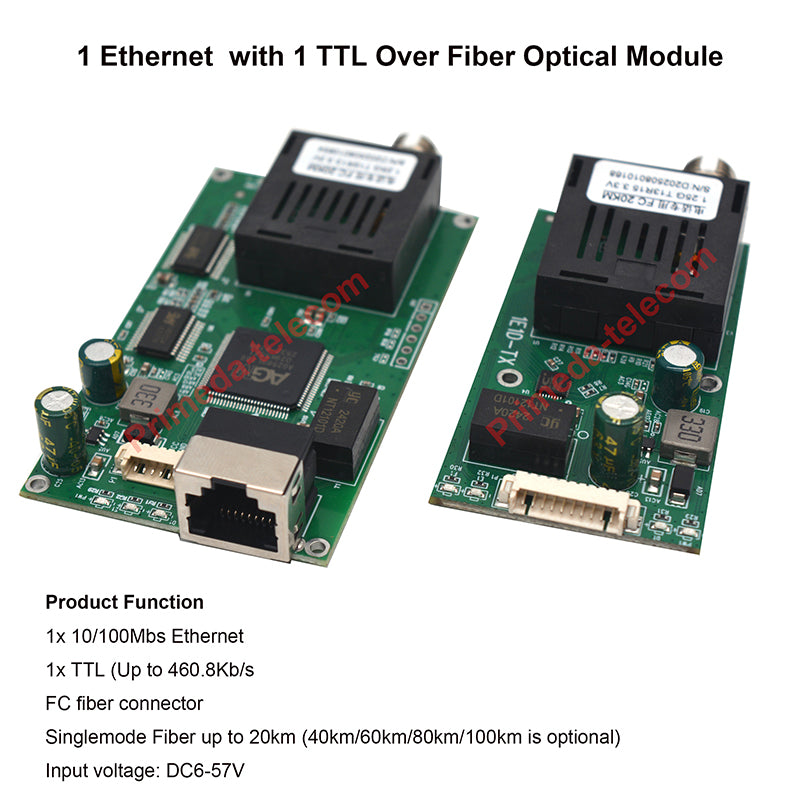

Product Function

1x 10/100Mbs Ethernet

1x TTL (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)

FC fiber connector

Singlemode single fiber up to 20km /40km/60km/80km/100km is optional)

Input voltage: DC6-57V





Product Description:

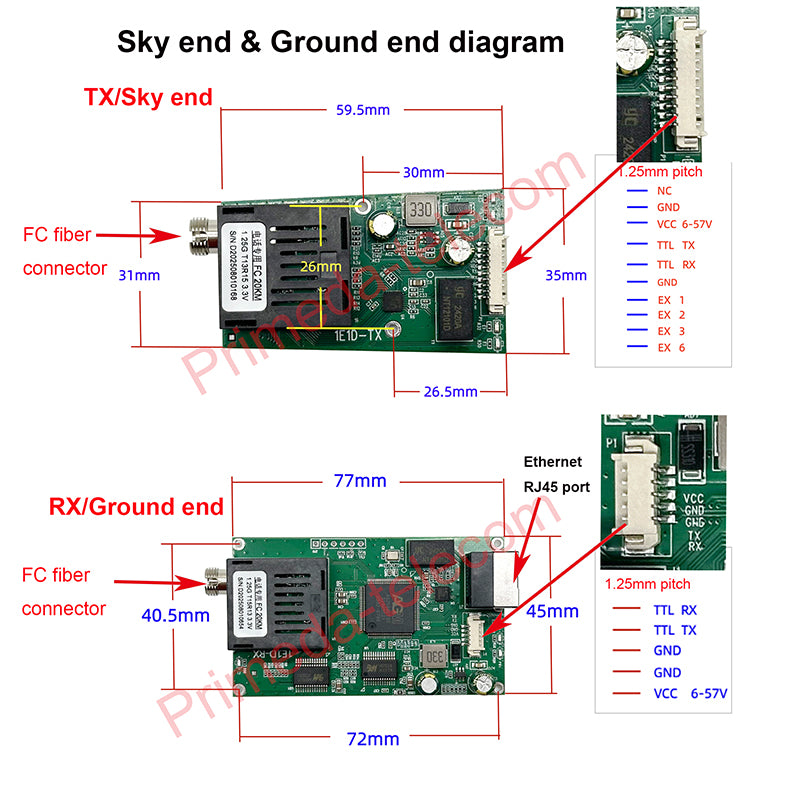

This device include a sky end (TX) and a ground end (RX), Developed for drone signal transmission system with 1 Ethernet (RJ45 Port) and 1 TTL level signal over an optical fiber cable for long distance transmission, Singlemode single fiber up to 20km (40km/60km/80km/100km is optional ,please contact us if needed), High speed and stable transmission, No interference.

Widely used in various scenarios that require long-distance, High-quality video transmission, such as telecommunications, power, monitoring, industrial control, and other fields

It is safe and reliable, stable in performance, light in weight and cost-effective.

this board can be customized according to buyer's special requirements. Contact us if needed.





Applicable Environment

1. Security system

2. Television Medical

3. Video and Telephone Conference

4. Building control system

5. Intelligent Transportation Monitoring System (ITS)

6. Remote multimedia teaching/campus monitoring

7. Long distance broadcasting and television transmission system

8. Drone aerial photography





Data characteristics

Application scenarios: Supports 1 channel 10/100Mbps Ethernet data, compatible with all control keyboards, matrix protocols, hard disk recording gimbal, alarm composite data, industrial application transmission

Physical interface: Industrial wiring terminal (standard), RJ45 (customized)

Control equipment: PTZ decoder, control keyboard, matrix control data interface, high-speed ball, industrial equipment

Physical interface terminal: 1.25mm wiring terminal

TTL data rate 24Kbps-460Kbps (Up to 460.8Kb/s, backward compatible with 420Kb/s, 230.4Kb/s,115.2Kb/s and more)



Ethernet characteristics

Interface speed: 10/100Mbit/s adaptive, default to 100MBPS working state

Interface form: unshielded Category 5e RJ-45 socket

Supported protocols: IEEE 802.3U 100Base TX, 10/100M Ethernet standard

Communication working mode: full duplex or half duplex



Environmental Requirements

Environmental temperature: -20 ℃~+70 ℃

Storage temperature: -45 ℃ to+95 ℃

Relative humidity: 0-95% (no cold condensation)

Rated supply voltage: AC850-260V/50Hz

MTBF: ≥ 105 hours

Power consumption: 5w (Input: DC6-57V)



Product weight: about 25g/pcs

Size: 77x45mm(LxW)

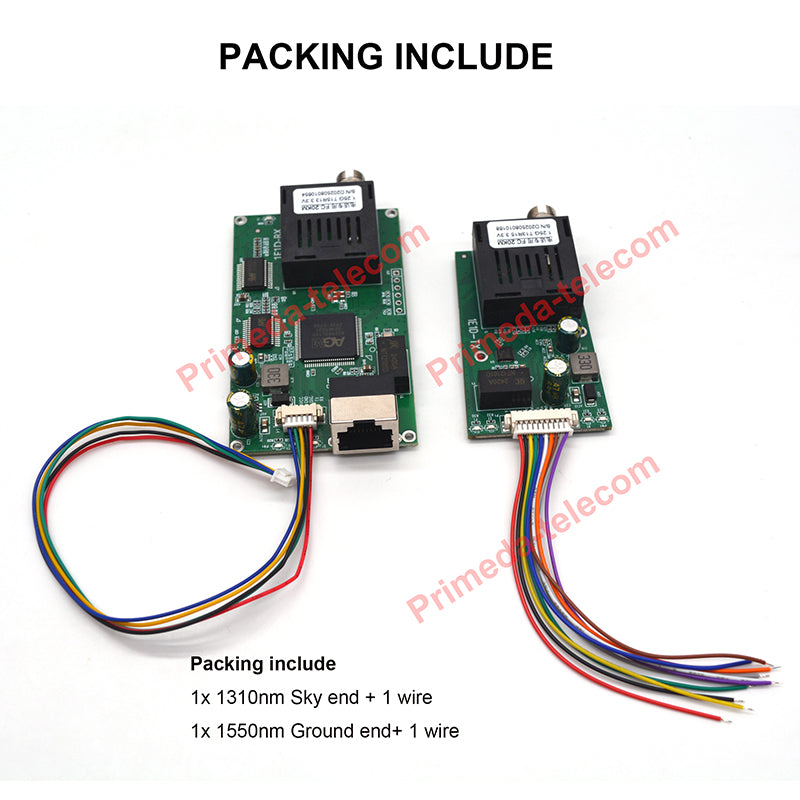

Package Include:

1 x TX/Sky end

1 x R/Ground end
