2/4/8 ports 1080P HDMI over Fiber Optic Extender Media Converter with KVM and independent 3.5mm Audio -SC Singlemode Single Fiber Up 20Km

Features This HDMI over Fiber system is used to send 2/4/8 channels of 1080P HDMI signals and...
Vendor: Primeda-telecom
SKU: PMD-4HDMI-4KVM-4x3.5mm-SC-SM
Availability: In Stock
Product Type: HDMI fiber converters
$649.00
$800.00
$649.00
Please hurry! Only 800 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Model: 4 channel HDMI-1U
Subtotal: $649.00
10 customers are viewing this product

Envío gratis

Envío estándar gratis en pedidos superiores a $99

Se estima que se entregará entre el 12/01/2022 y el 15/10/2022.

Devoluciones gratuitas

Saber más.

Construido y enviado en un plazo de 5 a 7 días hábiles

2/4/8 ports 1080P HDMI over Fiber Optic Extender Media Converter with KVM and independent 3.5mm Audio -SC Singlemode Single Fiber Up 20Km

2/4/8 ports 1080P HDMI over Fiber Optic Extender Media Converter with KVM and independent 3.5mm Audio -SC Singlemode Single Fiber Up 20Km

$800.00 $649.00

2/4/8 ports 1080P HDMI over Fiber Optic Extender Media Converter with KVM and independent 3.5mm Audio -SC Singlemode Single Fiber Up 20Km

$800.00 $649.00
Model: 4 channel HDMI-1U


Features

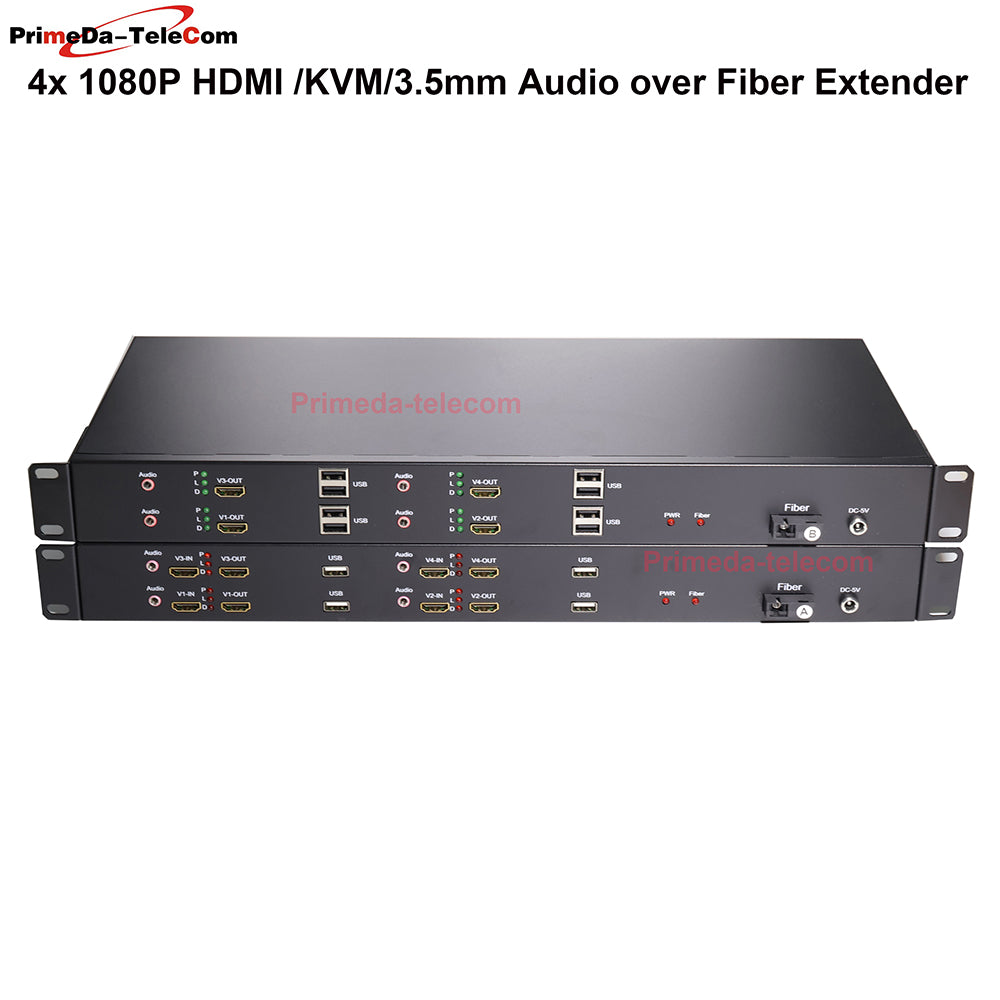

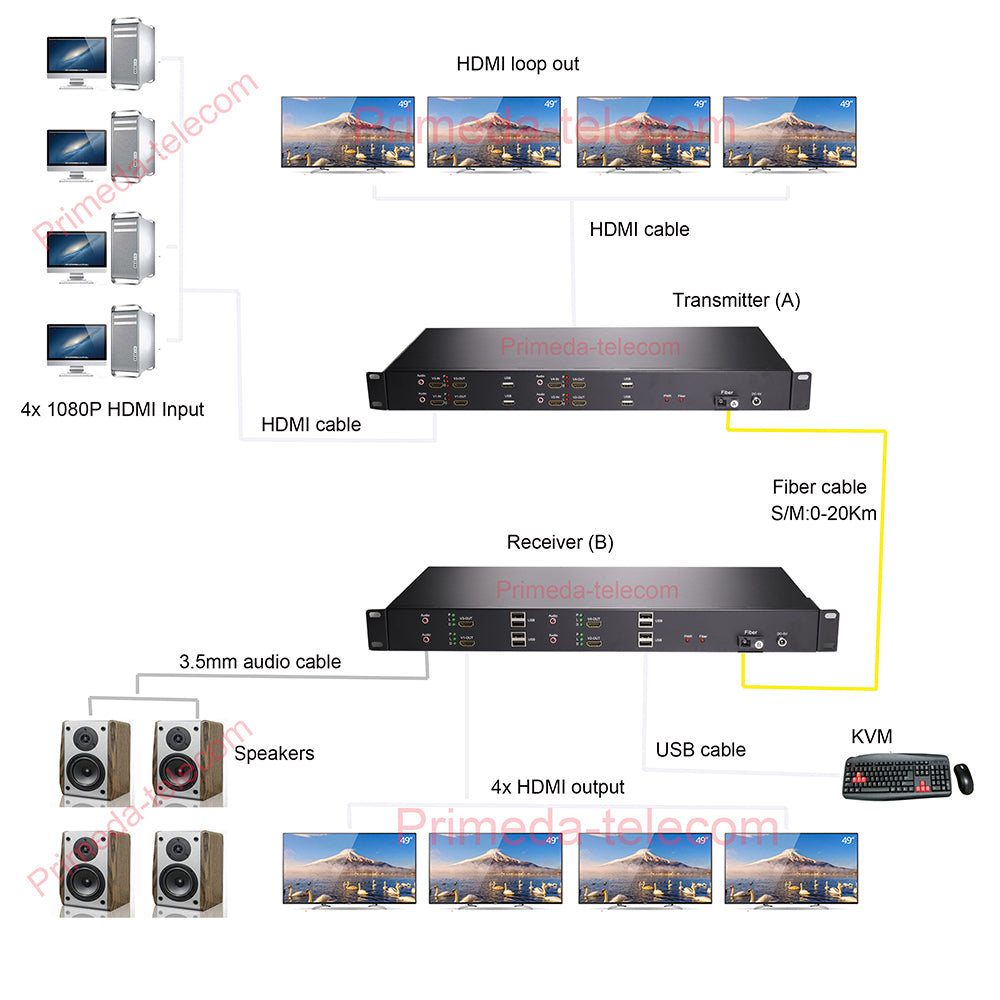

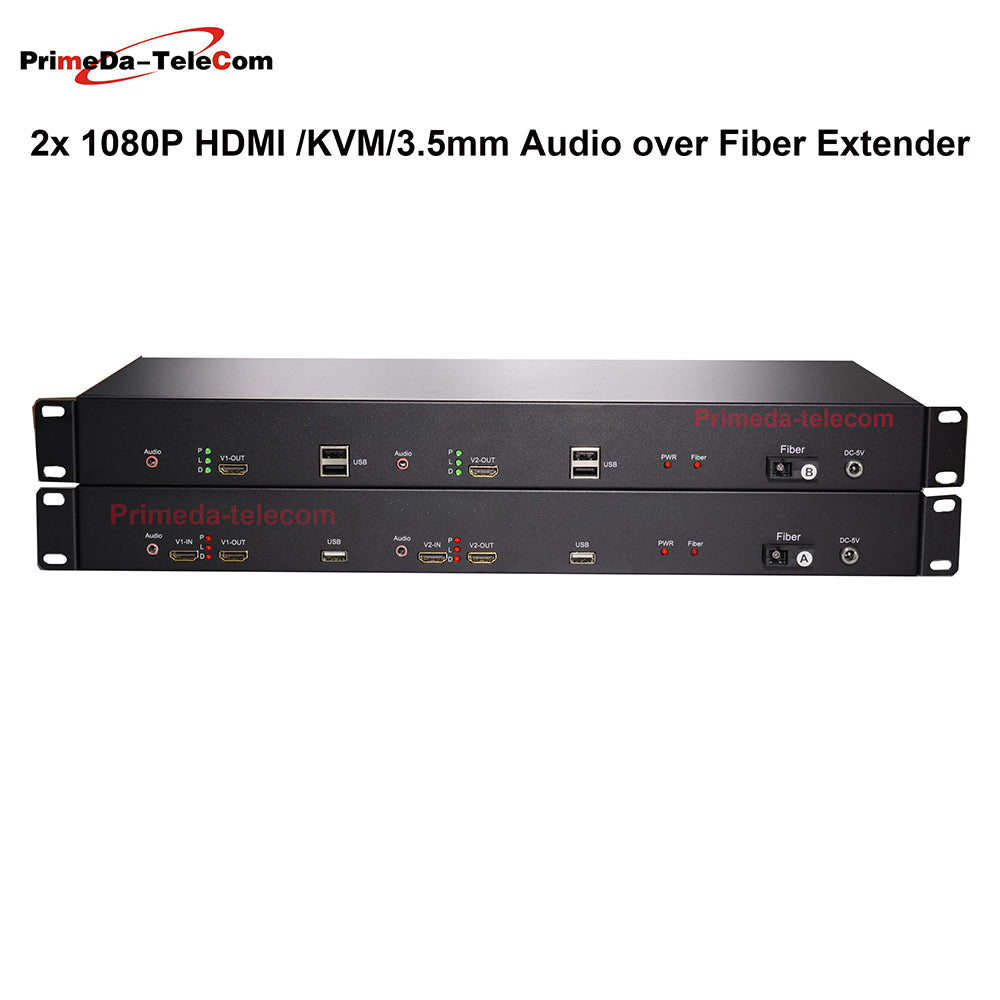

This HDMI over Fiber system is used to send 2/4/8 channels of 1080P HDMI signals and independent 3.5mm audio to remote audio/video transmission device over one Fiber Optic cable with SC-SC connector, with KVM (USB port) and local loop out for each channel's HDMI.

The device can achieve HDMI signal distribution distances of up to 12.4miles (20Km) over a single SC/SC single-mode Fiber optic cable. it also can be compatible with multimode fiber cable, working distance can be up to 500m (1640ft.) over a single SC/SC multi-mode fiber cable. Suitable for both universal fiber type (S/M and M/M).

Uncompressed signal transmission. Durable Metal. Bilateral heat dissipation. Widely used in extending Ultra-HD sources such as Blu-Ray players, game consoles, PCs and other HDMI sources to distant monitors, displays, TVs, and more

Support Video Resolution up to 1920x1080P@60Hz, Support KVM function which is remotely controlled by USB Keyboard and mouse.

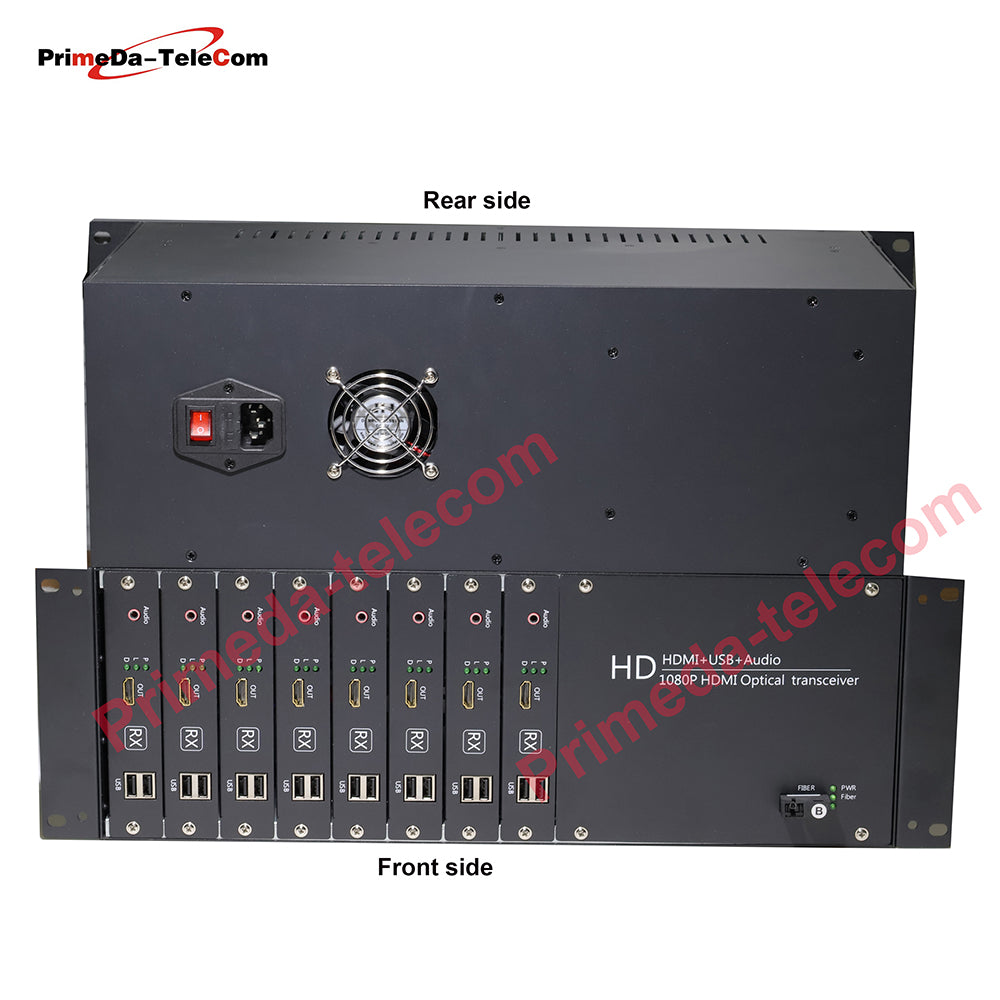

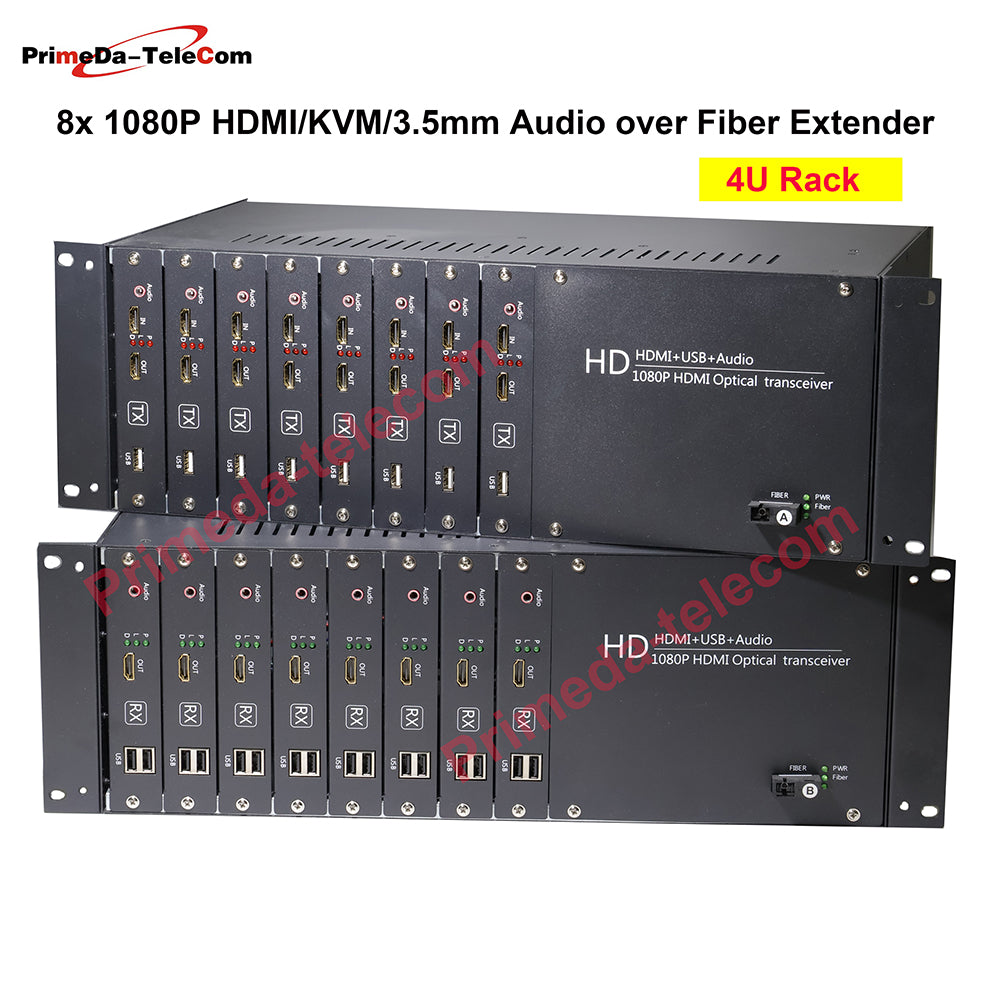

Support 1U 19inch rack mount for 2/4 port, 4U rack for 8 ports.

Plug and Play, Simple to Install, No need drive.

4 Channel HDMI,


2 Channel HDMI,

8 Channel HDMI,



Optical index:

Fiber interface : SC/UPC

Suitable for single-mode fiber 9/125 and multi-mode 50/125 or 62.5/125μ

Transmission distance: Singlemode version : single-mode single fiber 0-20KM, Compatible with Multimode fiber 0~500Meters .

Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)



General Index:

The usual time between failures (MTBF) greater than 100,000 hours

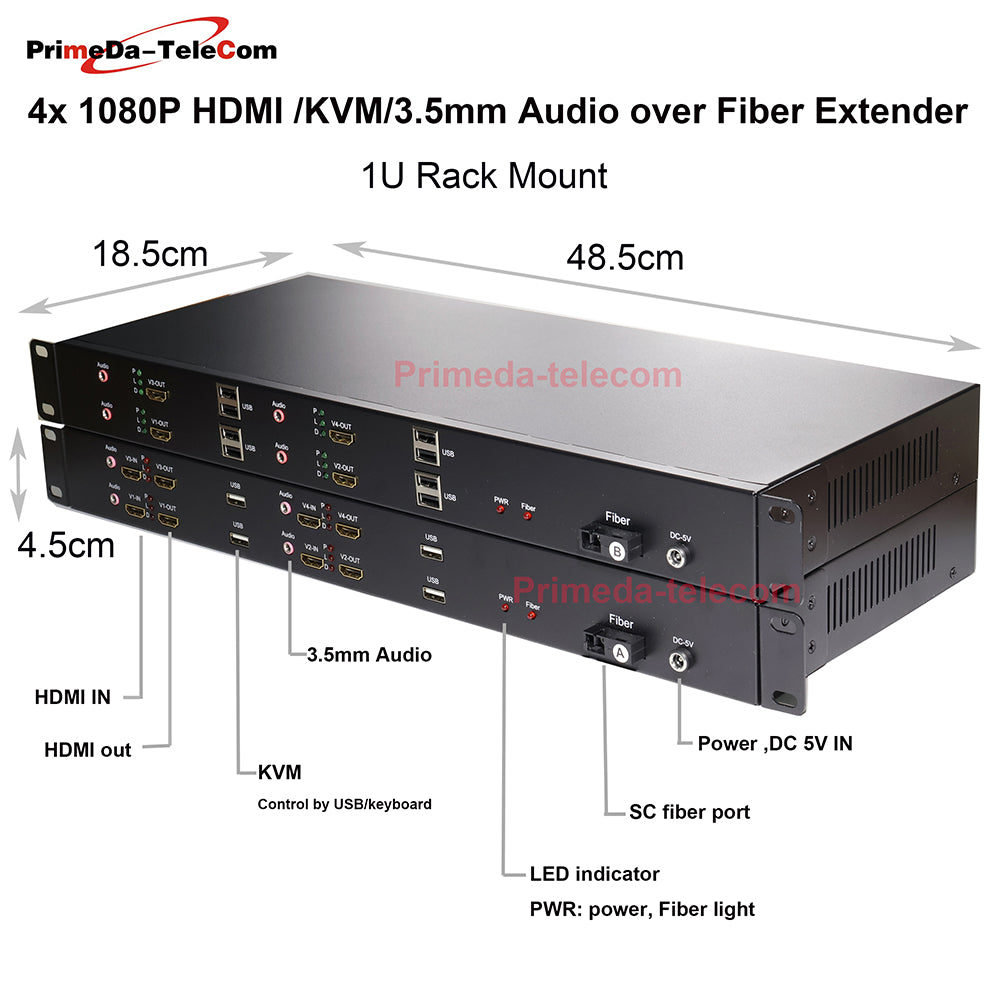

Size: 485x185x45mm (LxWxH) for 2 port and 4 port.

Weight: 4.5Kg/pair (2 port and 4 port), 12Kg (8port)

Working voltage : AC100~240V,DC5V (US/EU/UK/AU power adapter is optional)

US/EU/UK/AU power standard is optional.



Package contents:

1x HDMI over fiber transmitter
1x HDMI over fiber receiver
2 x External power cable (US/EU/UK/AU is optional)
1 x User manual
